Summary:

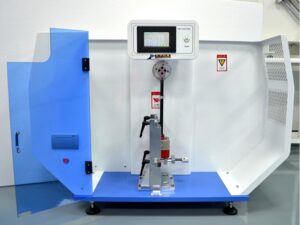

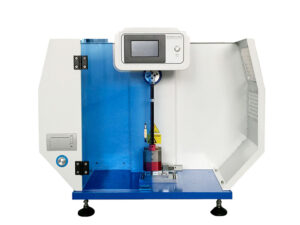

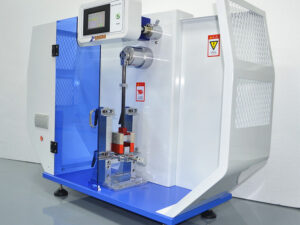

The Digital Type Charpy Impact Tester Price is mainly used for the determination of impact toughness of non-metallic materials such as hard plastic, reinforced nylon, glass reinforced plastic, ceramic, cast stone and electrical insulating materials. It is an ideal test equipment for chemical industry, scientific research units, universities and colleges, and quality inspection department
Standard:
ISO179-2000, GB/T1043-2008, JB/T8762-1998, GB/T 18743-2002, ISO180-2000, GB/T1843-2008, JB/T8761-1998, ASTM D256-2010 ETC.
Features:
High-precision intelligent controller with LCD display for intuitive and accurate data reading.
The first domestic use of carbon fiber pendulum (patent applied), in the impact direction, to improve the rigidity of the material, and the impact quality is concentrated on the centroid of the pendulum, truly vibration-free impact test, and the service life increases.
Imported high-resolution digital encoder, the angle test accuracy is higher and more stable.
Aerodynamic impact hammer and imported ball bearing, greatly reducing the friction loss caused by the machine.
Automatically calculate the final result, the test data can save 12 sets of data and average.
Can choose Chinese and English operation interface, test results can choose J / m, KJ / m2, kg-cm / cm, ft-ib / in and other units.
Built-in micro printer print test data.
Specifications:
Model
NG-JC-5
NG-JC-50
Max. Pendulum energy
5J
(1J, 2J, 4J, 5J are optional)
50J
(7.5J, 15J, 25J, 50J are optional)
Display mode
Color touch screen
Accuracy
0.01J
Impact velocity
3.8m/s
Distance between center of pendulum to center of sample
395
Pendulum elevation
150°

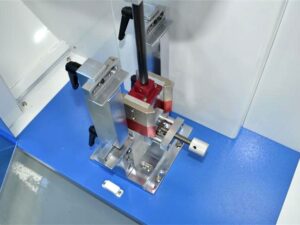

Jaw support spacing
20mm，40mm、60mm、70mm、95mm
Support blade corner radius
R = 1mm
Impact blade angle
30 °
Impact blade fillet radius
R = 2mm ± 0.5mm
Power
220V±10% 50HZ
