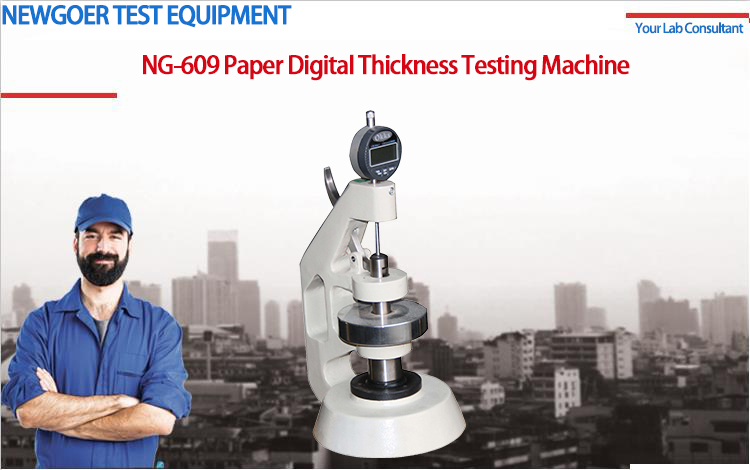

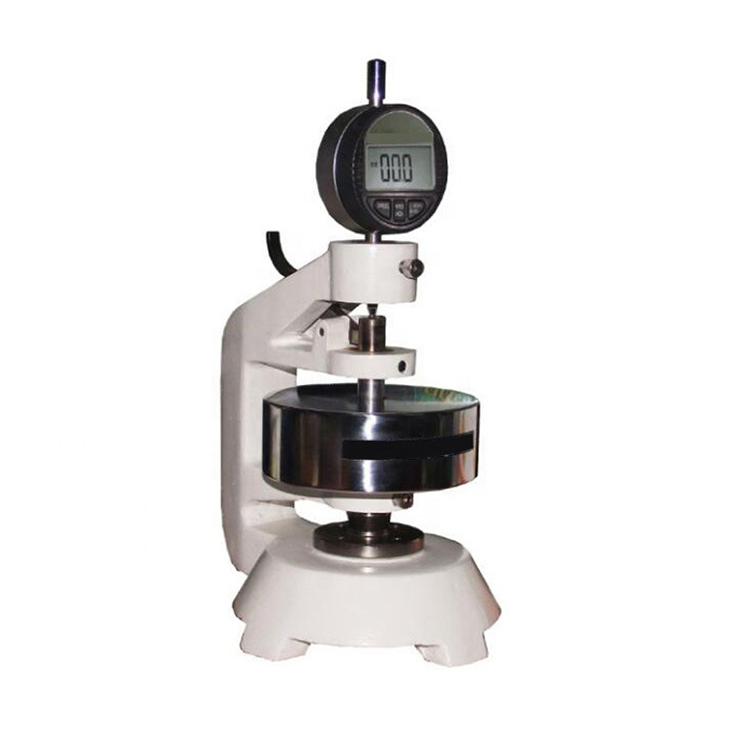

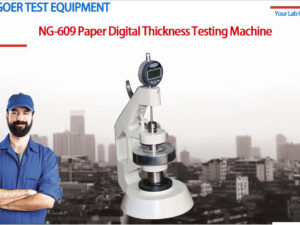

Digital Paper Cardboard Thickness Tester, Thickness Gauge Tester
Model
NG-609
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Application:
A tester for the thickness of paper, cardboard, and some sheet materials with a certain degree of tightness. The instrument for measuring the thickness of paperboard is an indispensable testing tool for paper making enterprises, packaging manufacturers and quality inspection departments
Test principle:
The paper or paperboard is subjected to a certain pressure between the two measuring surfaces to measure the distance between the two surfaces of the paper or paperboard, and the result is expressed in millimeters or micrometers.
Product features:
Clear any position to facilitate differential measurement
With ON/OFF switch key
Measurement system can be converted
Executive standard:
GB/T 451.3-2002 “Determination of paper and board thickness”
QB/T 1055-1998 “Paper and board thickness measuring instrument”
ISO 534 “Determination of thickness, tightness and bulk of paper and board”
Technical Parameters:
Measuring range
0-4mm
Graduation value
0.01mm/0.001mm
Indication error
0.05%
Contact area
200±5 mm²
Contact pressure
100±5kpa
Parallelism
≤0.035mm
Unit
mm,inch
Display
Digital display
Data output
Optional computer connection digital display dial
Weight
5kg
Dimensions
200mm*150mm*250mm
