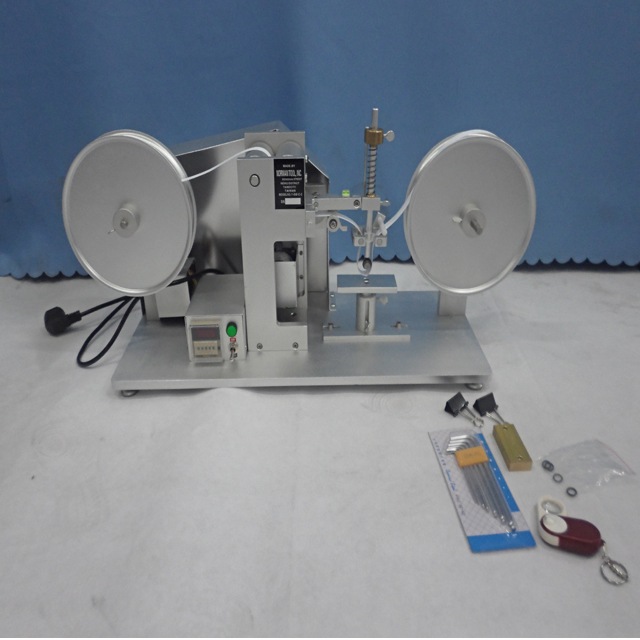

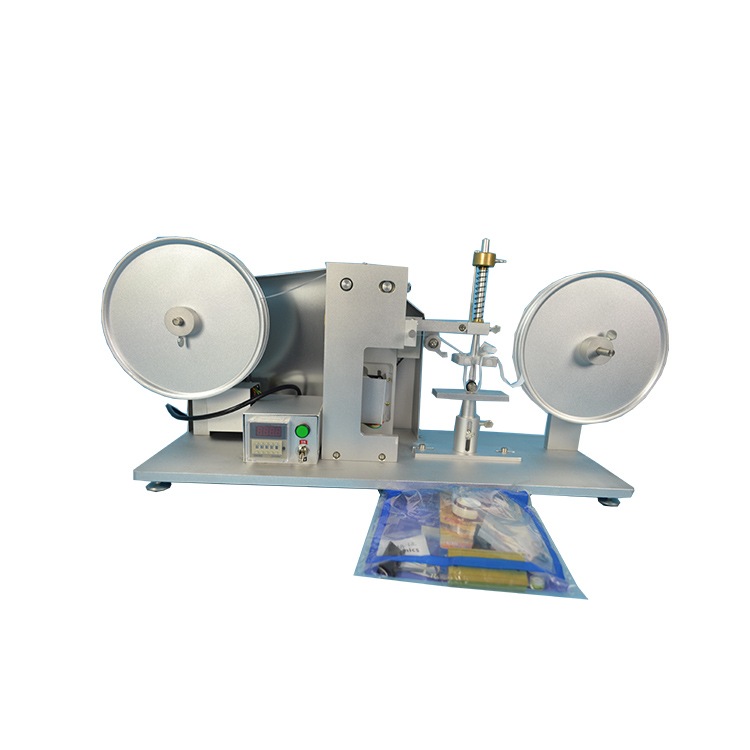

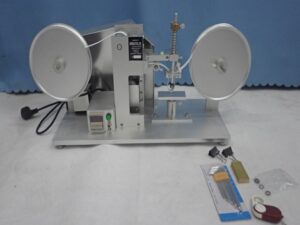

Mobile Phone Coating Tester, RCA Abrasion Tester Norman RCA Abrasion Wear Testing Machine
Model
NG-205
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:

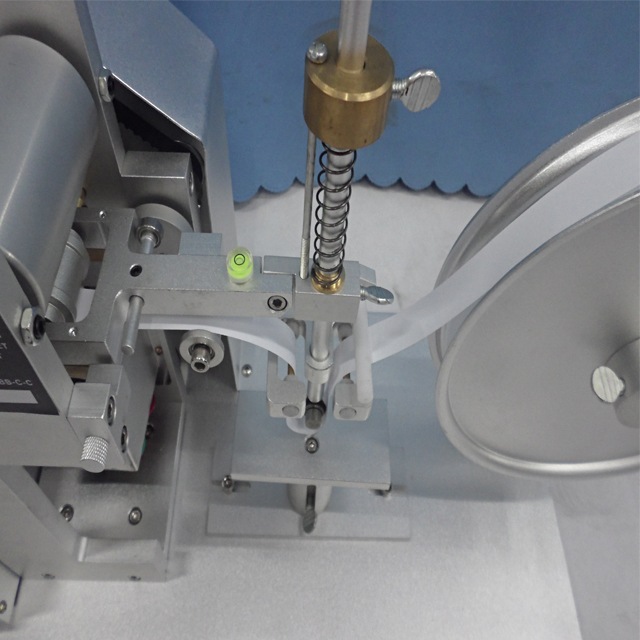

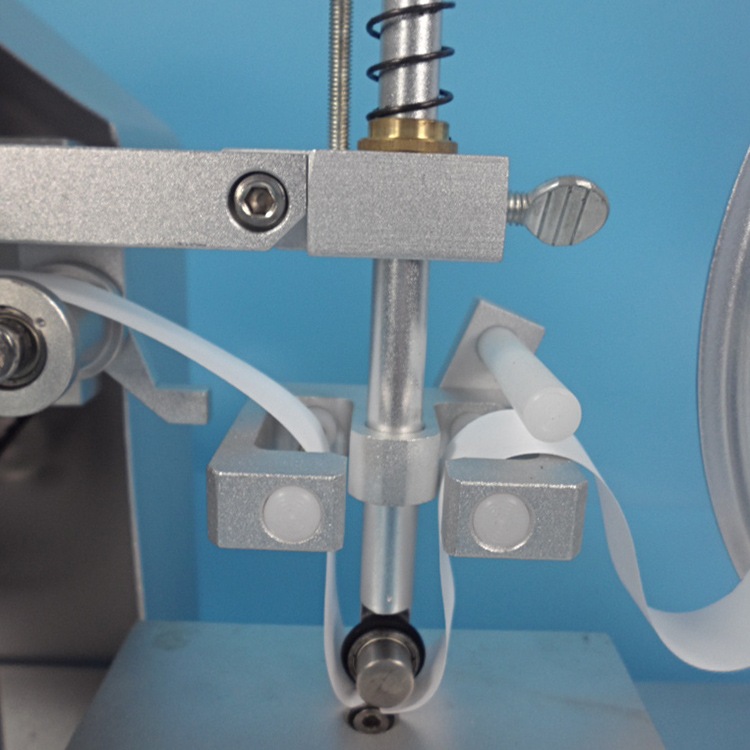

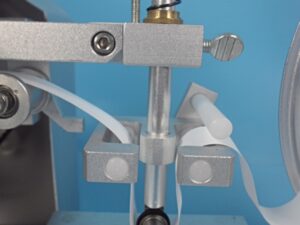

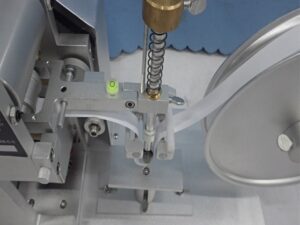

The RCA Abrasion Wear Tester is used to test surfaces for resistance to abrasion and wear. Typically used on painted or plated organic finishes, foil, and inked key pad lettering. This tester is widely used as a standard for many silicone key pad and membrane switch manufacturers. This abrader is used as a standard to the auto, appliance, cell phone, plastics, and coating industries. It uses an inexpensive roll of throw away abrasion paper. All build-up error is eliminated and consistent readings are easily obtained.
Application Standards:
ASTM F2357-04: Standard Test Method for Determining the Abrasion Resistance of Inks and Coatings on Membrane Switches Using the Norman Tool RCA Abrader.
Features:
Easy set-up and operation
Automatic shut-off
Repeatable and consistent results
3 load settings, 55g 175g 275g
Abrasion Debris does not affect test
Continuously uses inexpensive unused abrasive media
Specifications
Surface meter
One

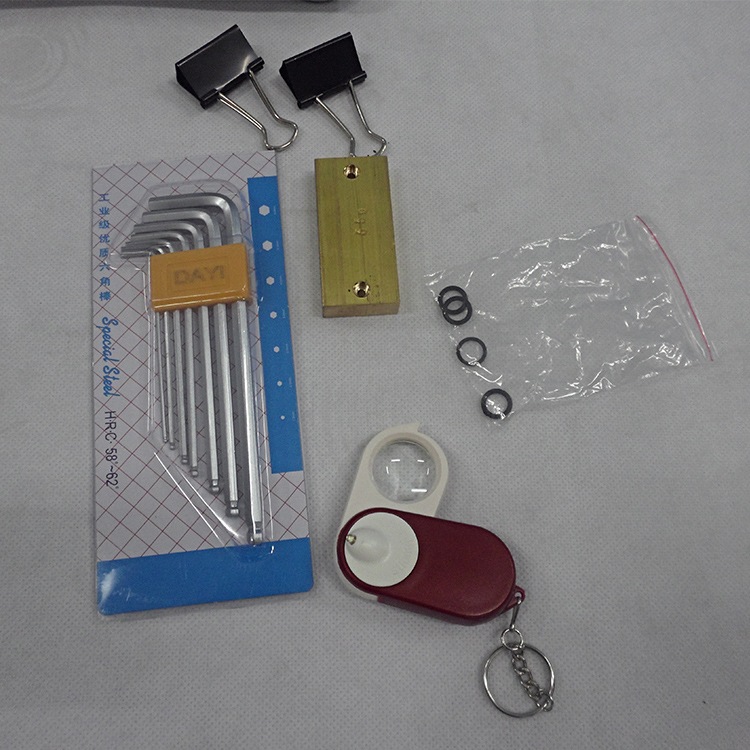

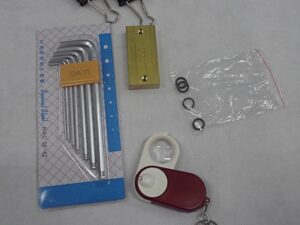

Tools
One group
Test Load
55g, 175g, 275g
Dust Cover
One
Magnifier
One
Pan-use Fixer
One
O-Ring
Three
Paper Tape
One Roll
Counter range
0-999999
Dimensions
80*38*38cm（H*D*W)
Weight
30KG
Power
220V, 5A
