Summary:

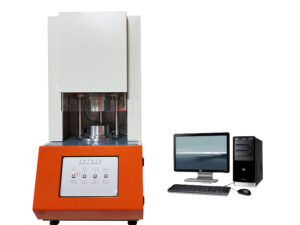

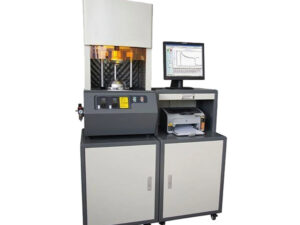

Professional Rubber Mooney Viscometer is used for determinating rubber’s viscosity and vulcanization index. Sample in a certain temperature and pressure, the rotor to a certain degree of rotation torque on the sample to a certain degree of shear stress, measure out the rubber anti-shear torque. It’s a indispensable instrument of reclaimed rubber, rubber, wire and cable industry.
Standards:
ASTM-D2084,ASTM-D5289,ISO-6502, ASTM-D1646
Features:
The strong data function can support the drawing,storage and output printing of multiple curves under the same interface.
It support the data query in many forms and output of excel queries and reports
It has many analysis function like statics, deviation setting,standards curve setting ,and CPK statistical calculation
It has such function as interface query,local zoom and curve comparison.
Selection of any any vulcanization time,range selection and screen capture.
Analyzed the past test data once again,and increase or modify the reports, to avoid the loss of data.
The test data are stored in the way of database,which is scientist the multiple data sequencing ways are convince for data retrieval and query.
The machine will get the characteristic curve and data by measuring the strength of rubber.
Good reproducible and stasis tics.
Specifications
Model
NG-320
Control temperature range
Normal temperature~200℃
Temperature display resolution
0.01℃（0.1 ℃ common type of imported temperature controller temperature）
Temperature control accuracy
±0.3℃
Calibration accuracy
Mooney value ±0.5
Rotor speed
2 rotation/ min ±0.02rotation/ min
Torque range
Mooney value 0～200
Torque resolution
Mooney value 0.1
Print content
Date, time, temperature, Mooney scorch curve and MV,T5,T35,T3,T18,@15,@30
Power
50HZ, ～220V±10％
Test results
Measure of Mooney viscosity (Large rotor):
MI — initial Mooney viscosity.
ML – The minimum Mooney value in the last 30 seconds before the motor stopped.
Mx-t – Mooney value relating to time t.
x-the time of preheat, t-Mooney test time
Stress Relaxation
MRe – Mooney value at the end of stress relaxation.
TRx – time needed for x% torque stress relaxation.
Xy% – % of Viscosity decay after motor stopped y sec.
The value of exponent a, the constant k, the correlation coefficient r, and the area A .
Graph ( with Viscosity-Time curve and Test temperature curve)
Mooney viscosity graph; Relaxation graph; log Mooney units Versus Log time graph.
Scorch Data testing sample results:
-Scorch time curve
-Temperature curve
-Curve index ( Input small or Large Rotor test
MI – initial Mooney viscosity
ML – Minimum Mooney viscosit
MF – Maximum Mooney viscosity in the end of the test
Mx-t – Mooney value relating to time t.
x-the time of preheat, t-Mooney test time
M5/M3 – ML+5/3 Mooney
M35/M18 – ML+35/18 Mooney
t5/t3 – Mooney burning time, M5/M3 corresponding time, Unit: min.
t35/t18 – Mooney vulcanizing time, ML+35/18 corresponding time, unit: min
