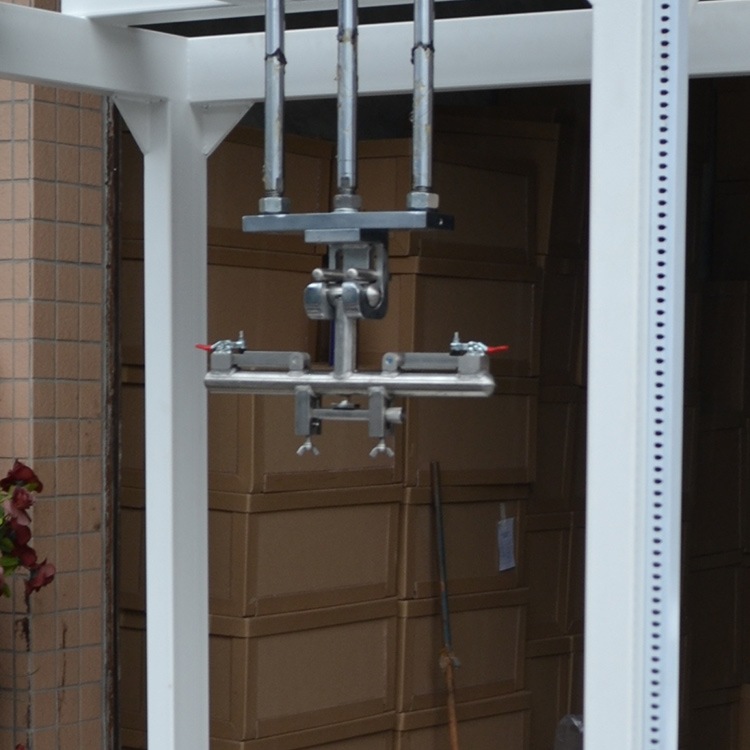

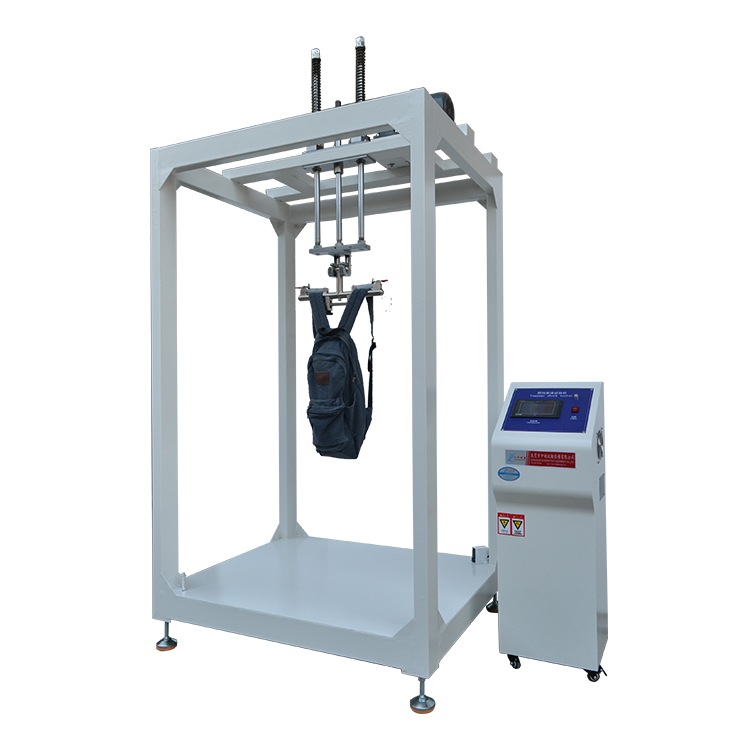

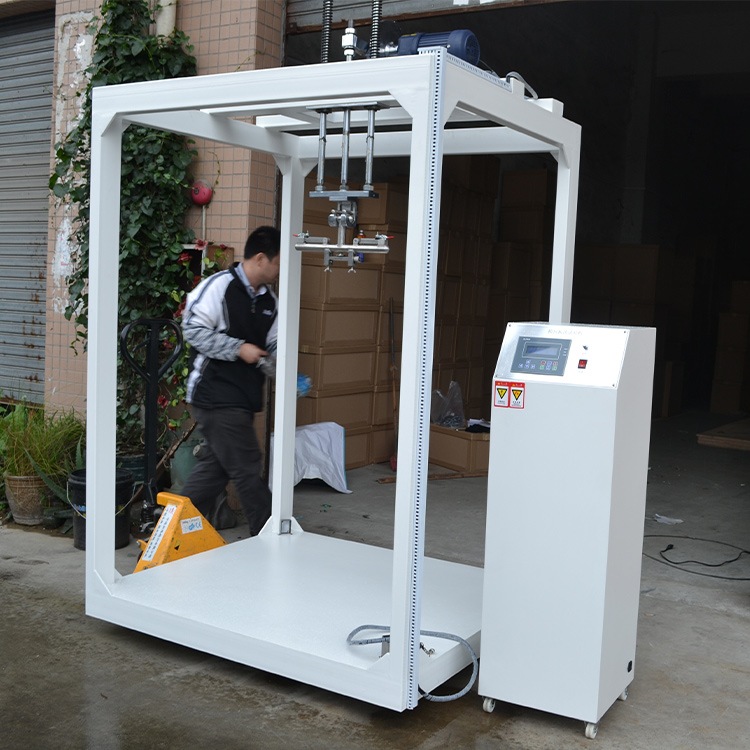

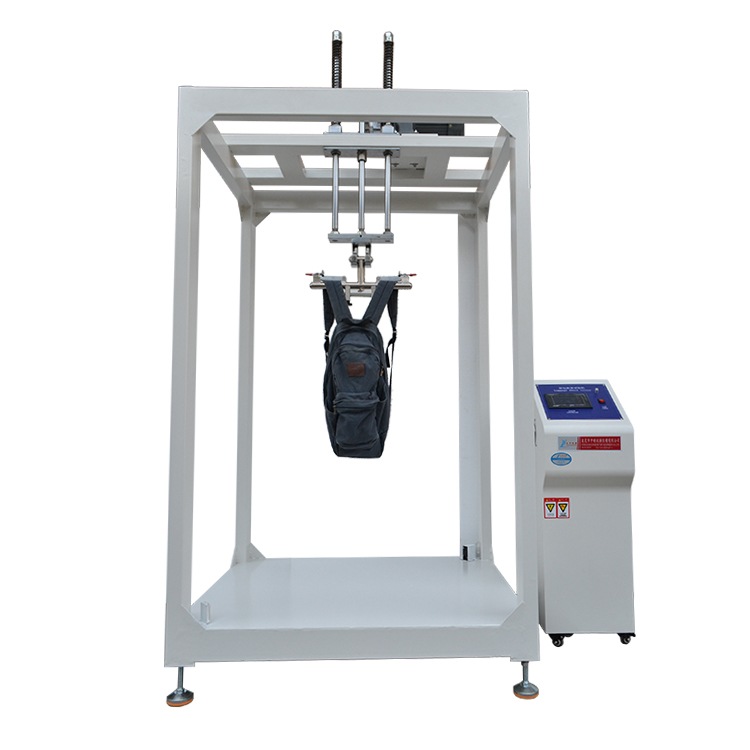

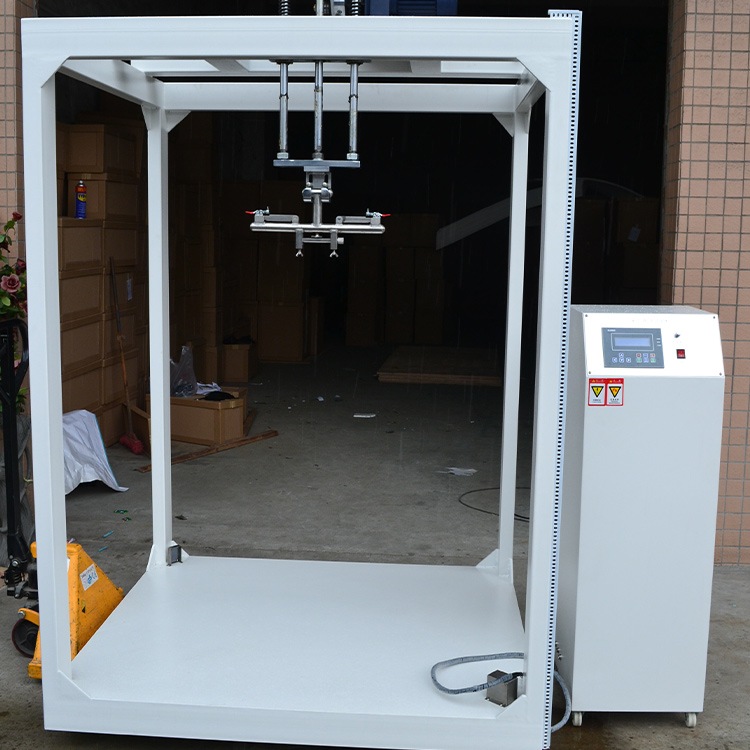

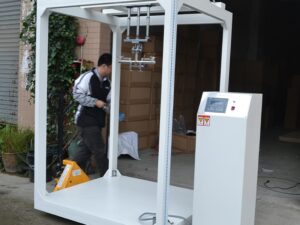

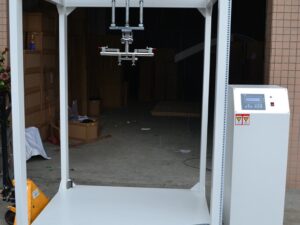

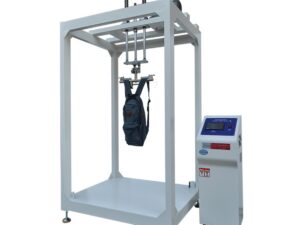

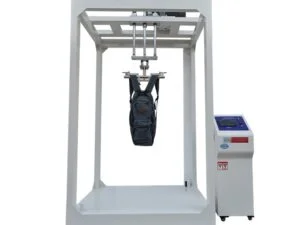

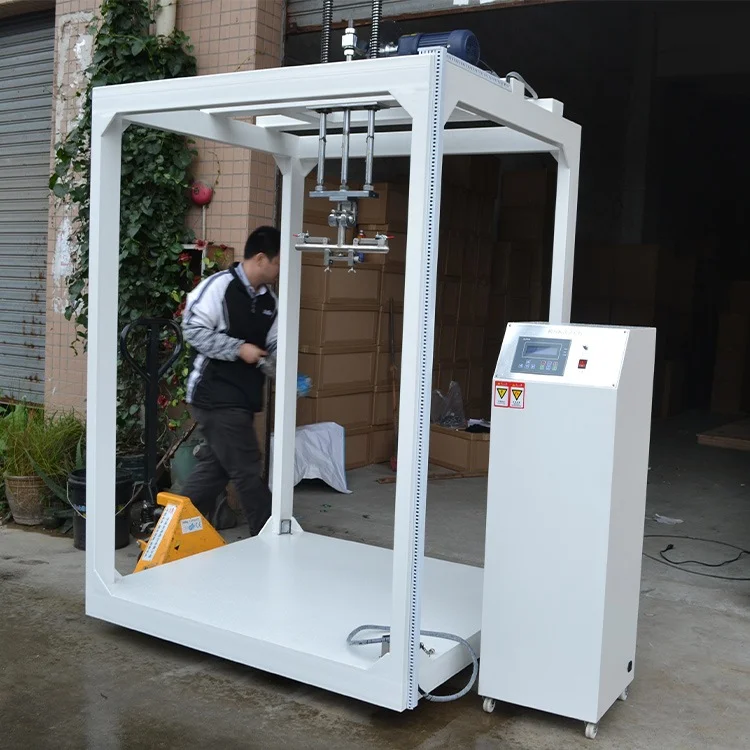

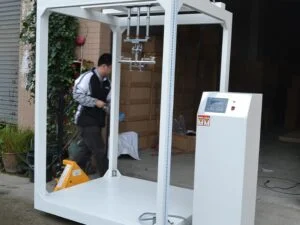

Luggage Handle Jerk Vibration Impact Tester, Suitcase Handle Shock and Vibration Durability Tester
Model
NG-345
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:

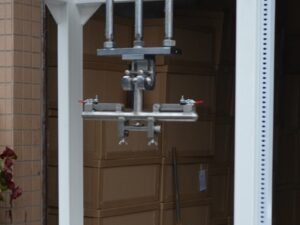

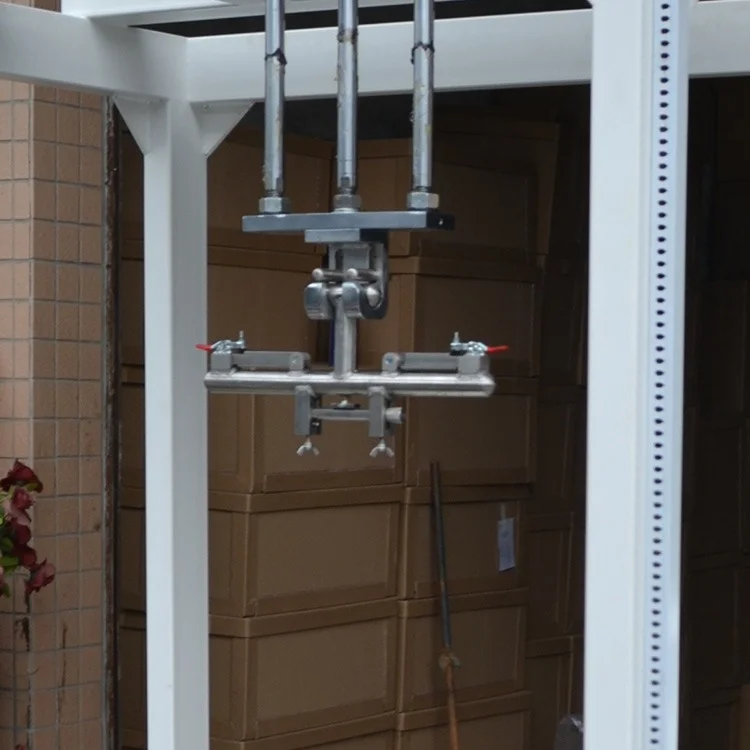

Luggage Handle Jerk Vibration Tester is applicable to testing the resistance of oscillating impact of the handle,
sew stitch lines and the whole structure of luggage. The testing methods are as follows: First, Load the
object with stated load weight. And then do the test to the specimen with the speed of 30 times per minute
and the impact height of 4 inches for 2500 times. The test result can be taken into consideration of quality improvement.
Standards:
QB/T 2922—2007 etc
Industries:
Bags and Suitcases Handle Jerk Testerappliedto all kinds of bag manufacturers. To improve products quality according to test results
Specifications
Impact Height
4 inch (0~6 inches) adjustable
Oscillation Mode
Spring 1.79Kg/mm
Testing Speed
5~50 C.P.M. adjustable
Times Setting
1~999999
Additional Fucnction
It would stop automatically if something goes wrong.
Dimension
1400×1200×250 mm
Weight
390 Kg
Power
1ø, 220V/50Hz
