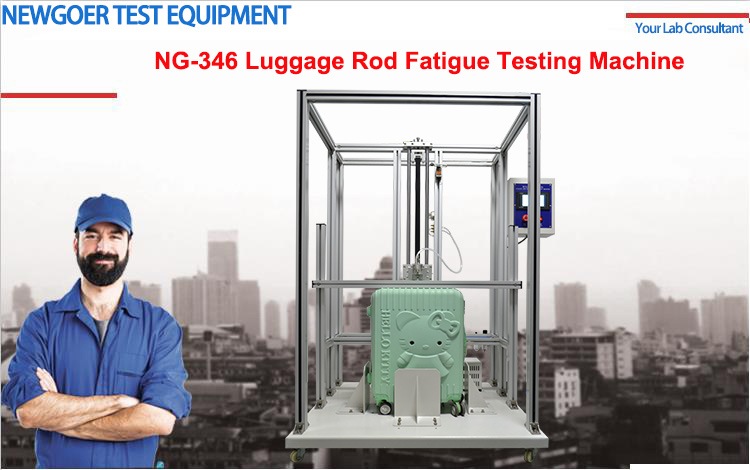

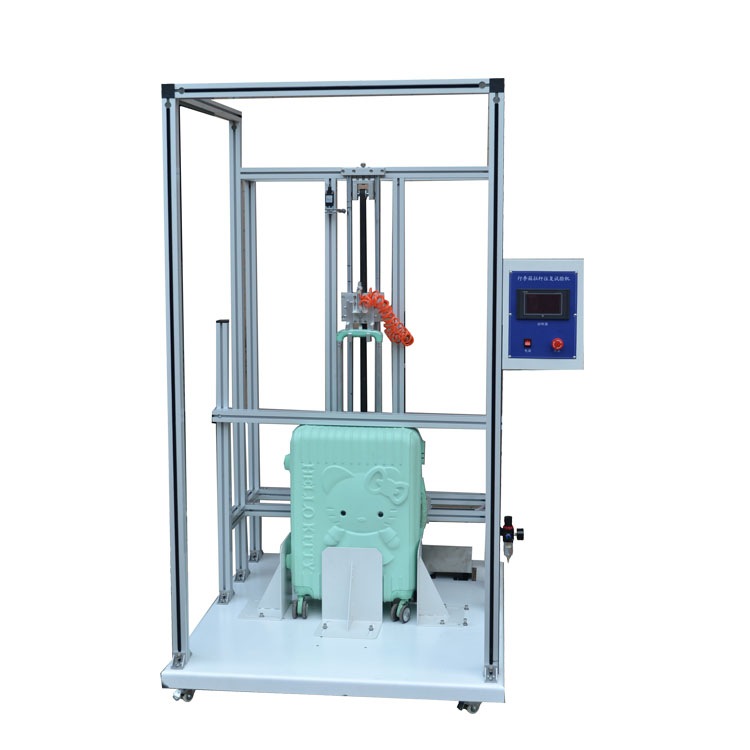

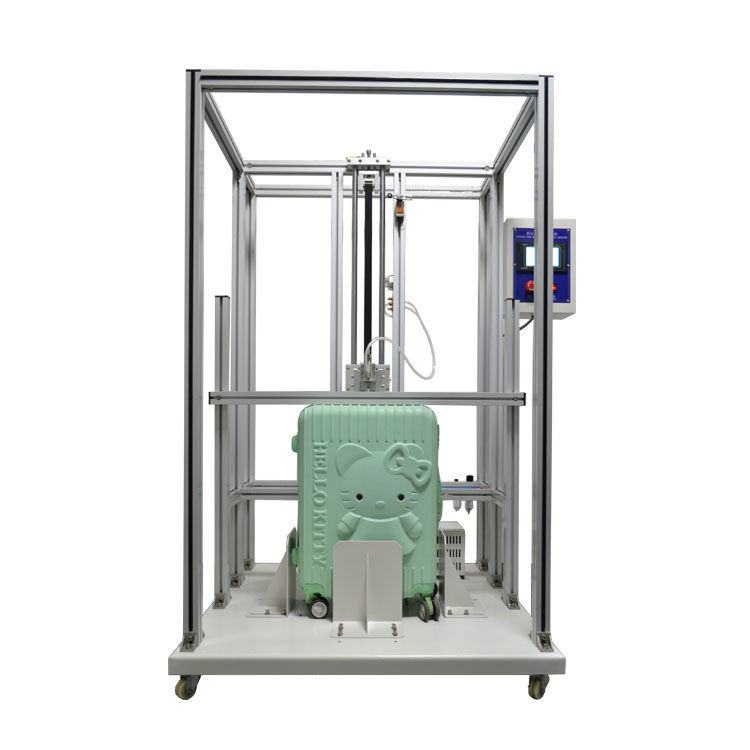

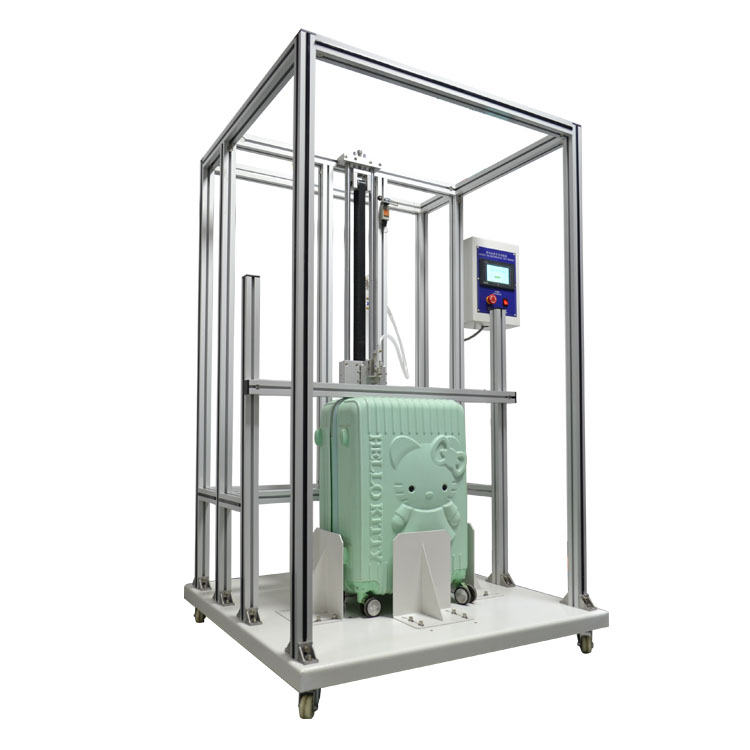

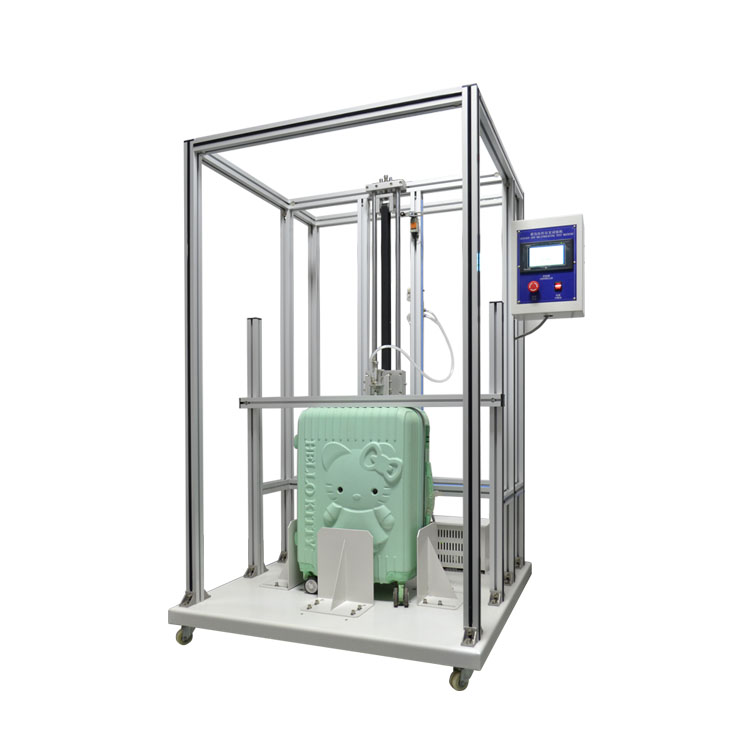

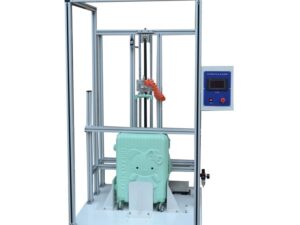

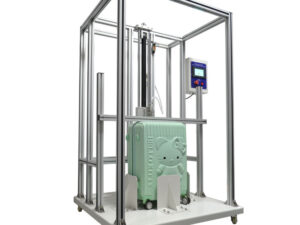

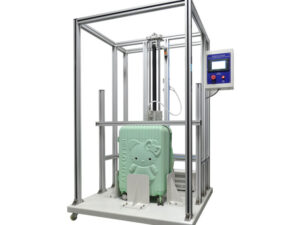

Luggage Rod Reciprocating Fatigue Testing Machine, Suitcase Luggage Pull Rod Fatigue Tester
Model
NG-346
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:
Professional Luggage Pull Rod Reciprocating Fatigue Testing Machine be used for handlebarof suitcase resistance to fatigue testing. The sampled will be stretch to judge it’s fetch way ,connection rod failure and deformation occurred.
Standards:
QB/T2919-2010 etc.
Principle:

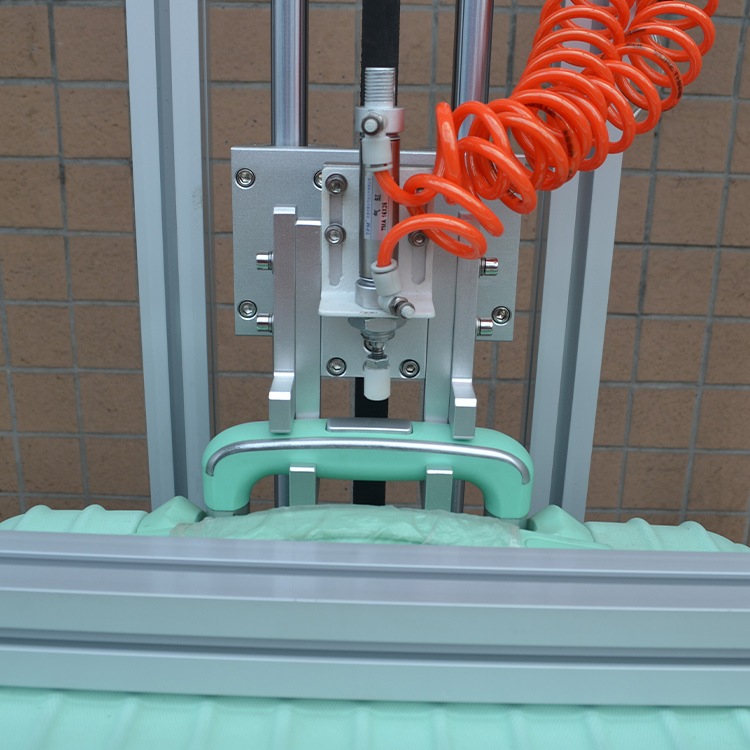

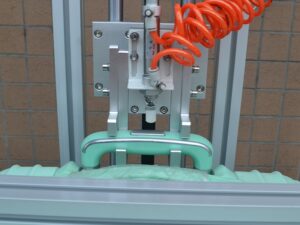

Fixed the suitcase and repeatedly stretched the trolley with a certain rate, after a certain number, then view the trolley damageb of suitcase. Lock button on the lever is pressed after a certain number of times, watch its elasticity and wear.
Specifications
Test stroke
20~100cm (adjustable)
Test position
4 point sensor location
Tensile speed
0~30cm/sec (adjustable)
Compression speed
0~30cm/sec (adjustable)
Test times
1~999999
Test dynamic
Cylinder
Specimen height
200cm
Weight
About 150kg
Size
120X120X210cm
Working pressure
5~8 kg/cm²
Power supply
AC220V/50Hz
