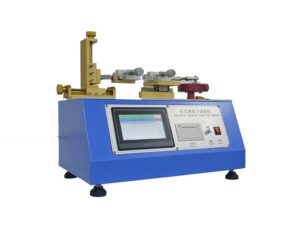

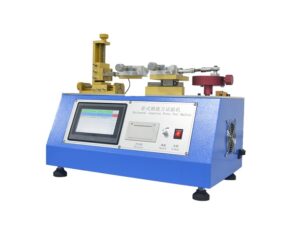

Horizontal Insertion Force Tester, Connector Insertion and Withdraw Force Testing Machine
Model
NG-214
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:

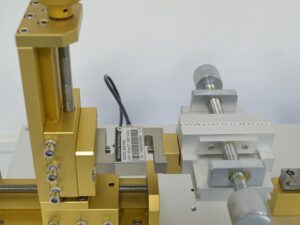

The horizontal insertion force testing machine is suitable for the plug test of a variety of
connector.It adopts the embedded microcomputer measurement, can display the peak values,continuous change and force value of the insertion force, and with the print function. This is
one of the most valuable machines in the market.
Main Features:
Can set Testing speed, Testing times & Stroke.
2. Auto show testing speed, insertion force, withdrawal force and current force.
3. Set the testing times, when it reach the value, auto stop.

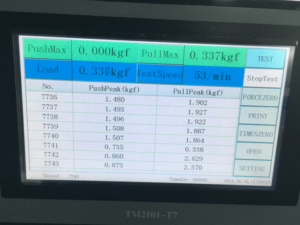

Touch screen controller.
Specifications
Technical Specification
Display
Touch Scree
Load capacity
50kgf
Speed range
0-60 times/min (adjustable)
Resolution force
0.01kg
Test times
0-500000
Drive mode
Rotating eccentric wheel
Stroke adjustable range
0~50mm
Unit
N, Kg
Dimension
500*450*350mm
Power
220V, 50Hz
