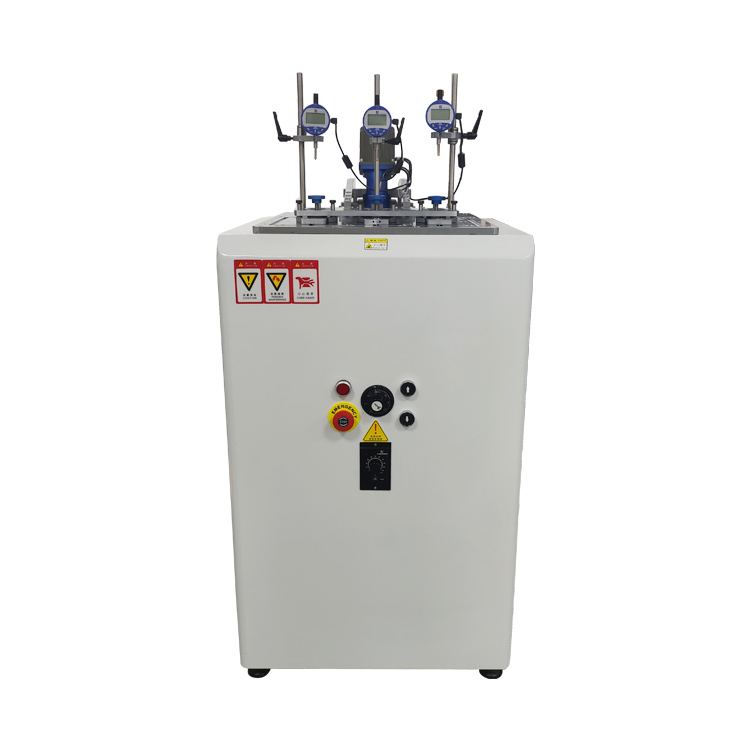

Vicat Temperature Softening Point Tester, Plastic VST Testing Machine
Model
NG-3215
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Application
It is mainly used for the determination of heat distortion temperature and Vicat softening point temperature of non-metallic materials such as plastic, hard rubber, nylon, electrical insulating materials, long fiber reinforced composite materials, high strength thermosetting laminates. It is easy to operate and precise in control. It is a highly intelligent test instrument widely used in colleges and universities, research institutes and product quality supervision and inspection units.
Features
Multiple security protection: Mechanical temperature upper limit protection switch, software temperature upper limit protection, to ensure safe and stable operation of the test.
High-precision measurement and control system: The high-performance temperature sensor and the advanced capacitive-type digital display dialimeter are used to accurately measure the small changes of the sample. The advanced PID algorithm and the all-optical isolation phase-modulation module are used for temperature control to ensure that the heating rate error is less than 0.5 °C.
Standard
ISO 2507 Thermoplastics pipes and fittings- Vicat softening temperature – Part1: General test method；
ISO 75 Plastics – Determination of temperature of deflection under load;
ISO 306 Plastics-Thermoplastic materials – Determination of Vicat Softening Temperature (VST);
ASTMD 1525 Standard Test Method for Vicat Softening Temperature of Plastics;
ASTMD 648 Standard Test Method for Deflection Temperature of Plastics Under Flexural Load in The Edgewise Position
Specifications:
Model
NG-3215
Temperature control range
Room temperature ~ 300 °C
Maximum temperature error
±0.5 °C (50 degree heating rate) ±1 °C (120 degree heating rate)
Heating rate
50℃/h、120℃/h
Temperature measurement point
1
Number of test racks
3 pieces
Deformation measurement range
-0.1～10mm
Maximum deformation error
±0.01mm
Sample support span
64mm、100mm
Using media
Methyl silicone oil or transformer oil
Cooling method
Natural cooling above 150°C, water cooling below 150°C or natural cooling
