The TVM925S pick and place machine is designed with 4 heads,50 slots.
Description
Inquiry
Description

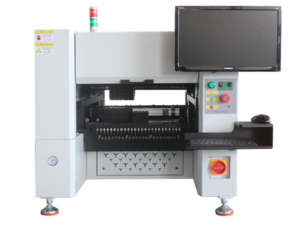

The TVM925S pick and place machine is designed with 4 heads,50 slots.

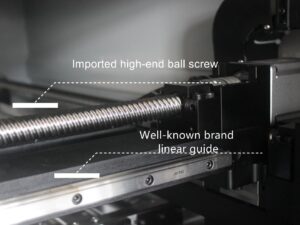

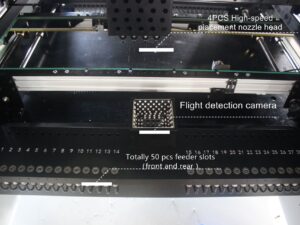

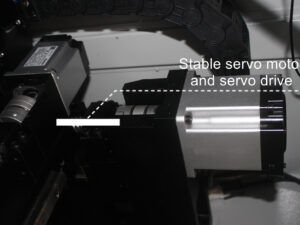

Learning from the TVM925 model and combined the technology from QM61 series.It increased the hardware like the flight camera,the servo driver and motor,the TBI screw rod,and the automatic transfer rail .Upgraded the software functional such as the component library,the visual surveillance,the safety alerts,the fault previously warning .Can handling special-shaped components, BGA, 0201 inch package.X Y axis adopts servo motor, speed of up to 9500 components per hour (CPH).

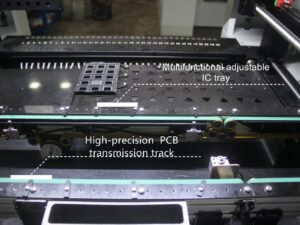

ModelTVM925SMax applicable PCB50*50mm~350x350mmXY moving range410*700mmZ moving range±15mmPlacement head quantity4Mounting capabilityVision Off: 9500pcs/hVision On: 6500pcs/hMounting accuracy0.025mmApplicable components0201,0402,0603,0805,sop8 etc.Components supplyTape reel. bulk package(IC)tubesPCB transfer directionLeft→RightControl Systemservo motor+TBI Screw RodTape width8mm. 12mm. 16mm. 24mmFeeders loading ability50 slots (YAMAHA Feeder is available)Machine dimensionL1200xW1440xH920mmVisual camera1 PCB inspection camera ， 1 Flying cameraVisual camera(down)Automatic identify the mark pointVisual camera(up)Automatic adjust the offsetVacuum pump qualityExternal air pumpPower supplyAC220VAverage working Power360WGross weight271KGPacking size1.35CBM
