Description

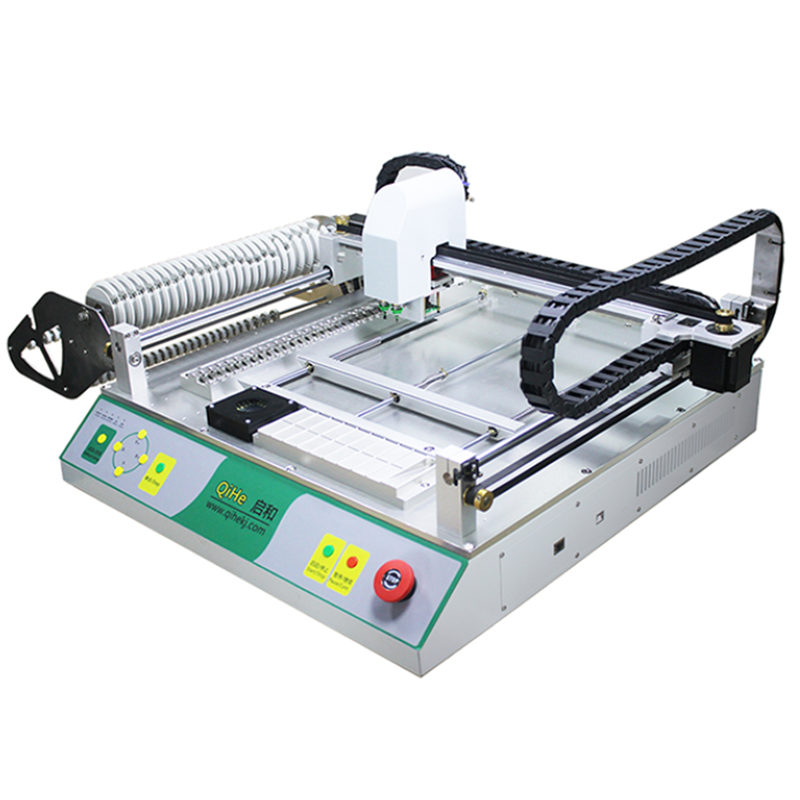

TVM802A SMT pick and place machine (desktop pnp mounter). There are 29 slots（8mm=25,12mm=3,12mm=1）,2 placement heads.Can handling smallest package size:0402 inch and up to largest size:TQFP100.The external dimensions of TVM802AX pick&place machine are 875mm*640mm*310mm.Standard edition is mainly composed of working head, dual vision system, operation platform, patented feeding rack, main controller system,stepper motor drive system（Flexible-S acceleration）,internal vacumm pump, etc. Voltage AC220V or AC110V, power 150W.
ModelTVM802AMax applicable PCB size340*340mmMax xy moving range395*450mmMax z moving range12.5mmPlacement head quantity2Max mounting capabilityVision on: 5500pcs/hVision off: 6500pcs/hFeeder slots & Tape width29 slots, （8mm=25, 12mm=3,16mm=1）Visual camera2 HD CCD camerasApplicable component Smallest size:0402inchLargest size:TQFP100Power supply220V/110VNet weight39.5kgGross weight66kgMachine Dimension94*64*33cmPacking size107*77*42cmVolume0.35CBM
