Description

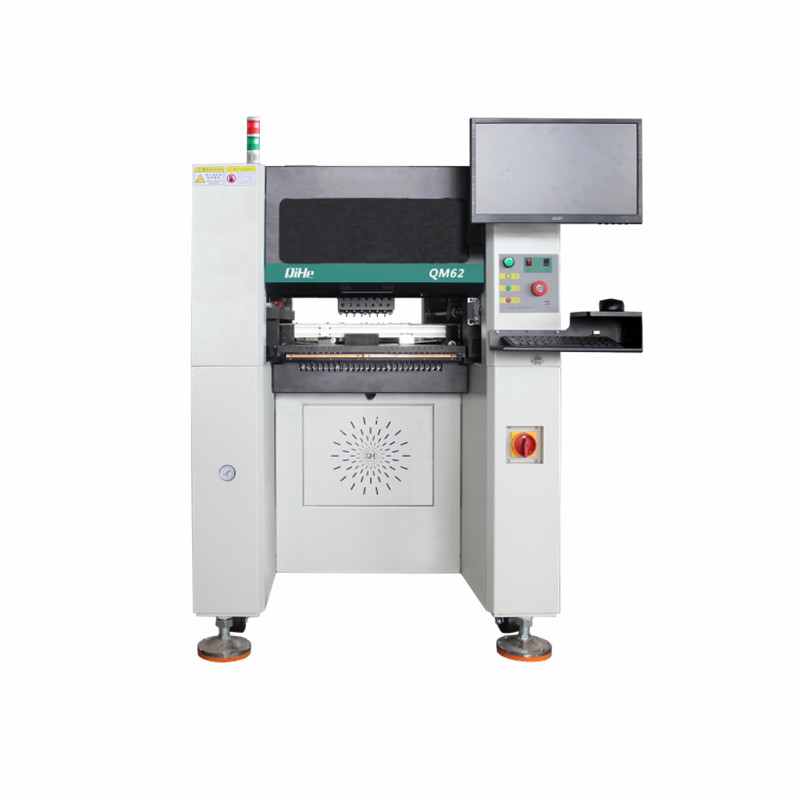

QM62 SMT pick and place machine is designed for mass production or R&D proofing purpose. It contains 6 heads,50 slots .
Compared with the QM61 model, it is compact type characterized by a smaller size .Bare machine width 884mm can pass through a smaller door, suitable for offices or laboratories or even housesThe hardware including flying shot recognition camera,the Hiwin linear rail,the TBI grinding screw,the master computer ，triple stage transmission rail system.Upgraded the software functional such as the component library ,the visual surveillance,the safety alerts,the fault previously warning .QM62 pick&place machine can easily handling special-shaped components, BGA, 0201 inch package.QM62 chip mounter X Y axis adopts Panasonic servo motor, speed up to 15000 components per hour (CPH),
ModelQM62Max applicable PCB size350*350mmMax xy moving range730*400mmMax z moving range32mmPlacement head quantity6Max mounting capabilityVision on: 11000pcs/hVision off: 15000pcs/hFeeder slots capability50 slots (YAMAHA Feeder is available)Applicable component Smallest size:0201 inchLargest size:30*30mm,pin center spacing≥0.5mmMax mounting Height15mmVisual camera Flight HD CCD cameraPowerabout1100WPower supply220VNet Weight630kgGross Weight690kgMachine Dimension885*1320*1350mmPacking size2.07CBM
