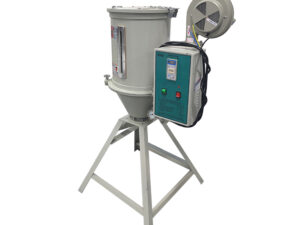

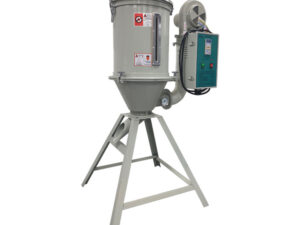

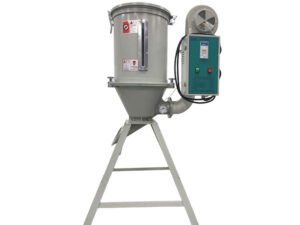

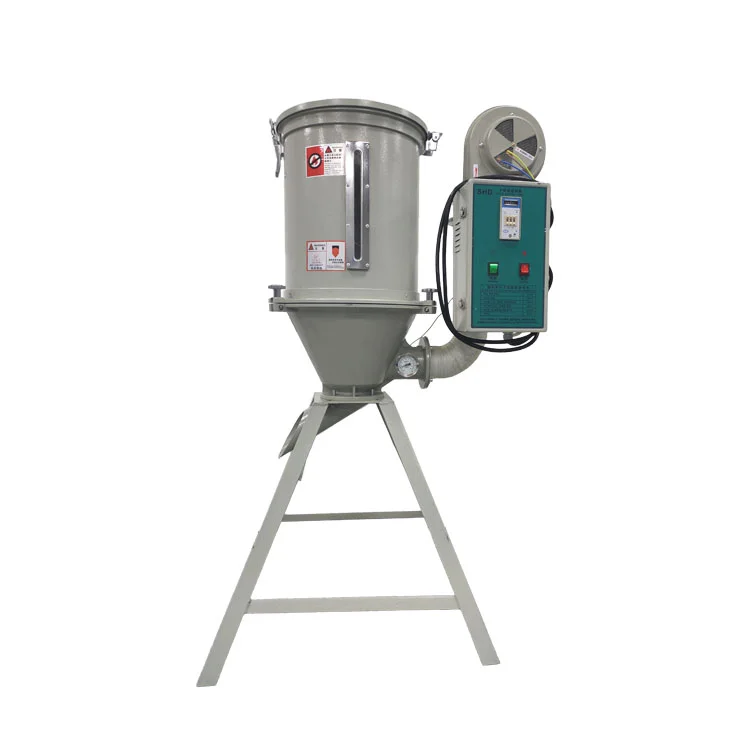

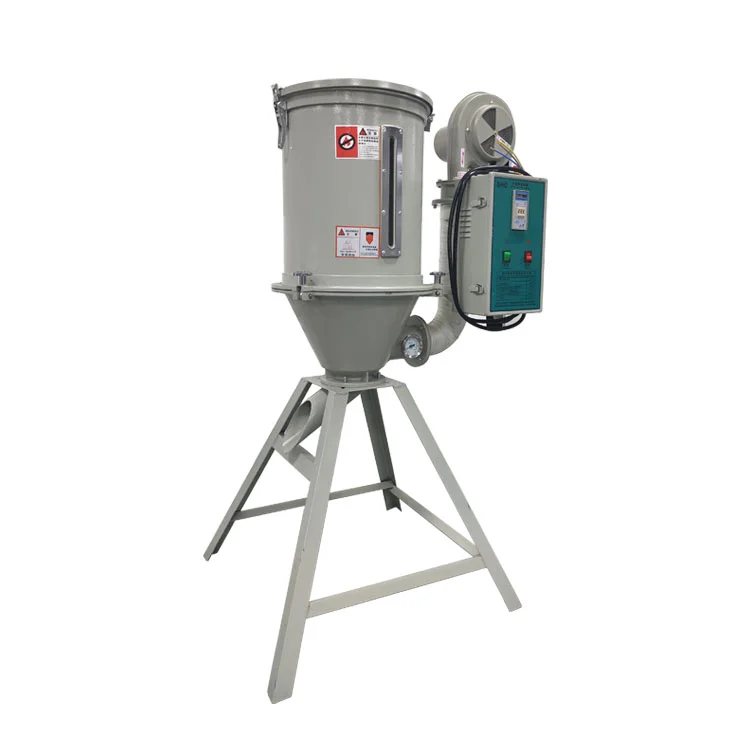

Hot Air Plastic Hopper Dryer, Industrial Hopper Dryer
Model
NG-3311
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:

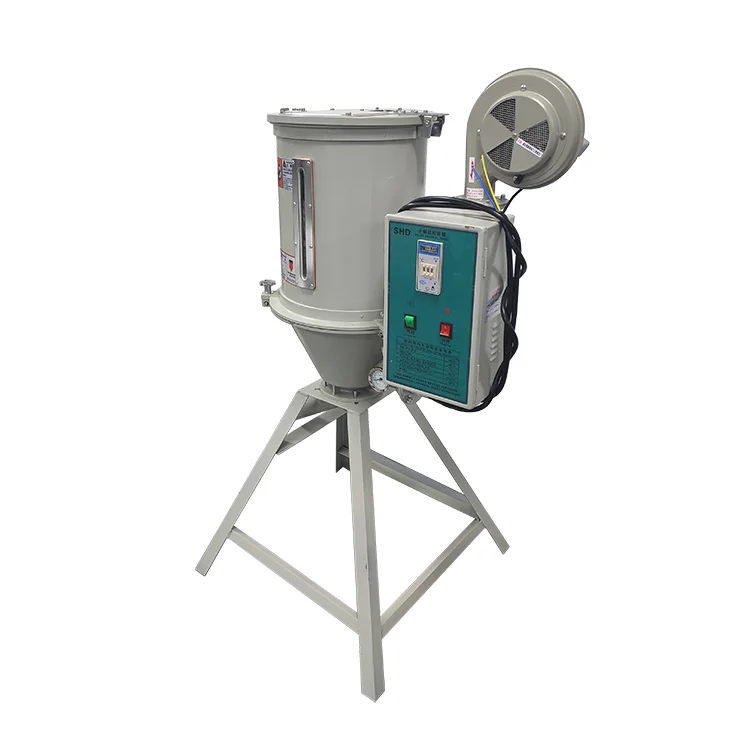

The Plastic Hopper Dryer is the most efficient and economical machine for drying plastic materials. Plastic materials that can be dried and wet from packaging, shipping or recycling. In the drying process, hot ait with constant temperature is blown by a blower into a hopper to dry the materials. Moisture will be separated out and taken away by hot air, thus to gain a satisfied drying effect.

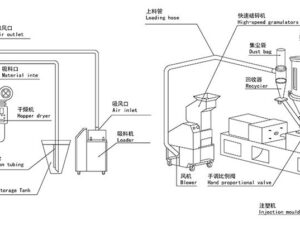

Working Principle
In the drying process, hot ait with constant temperature is blown by a blower into a hopper to dry the materials. Moisture will be separated out and taken away by hot air, thus to gain a satisfied drying effect.

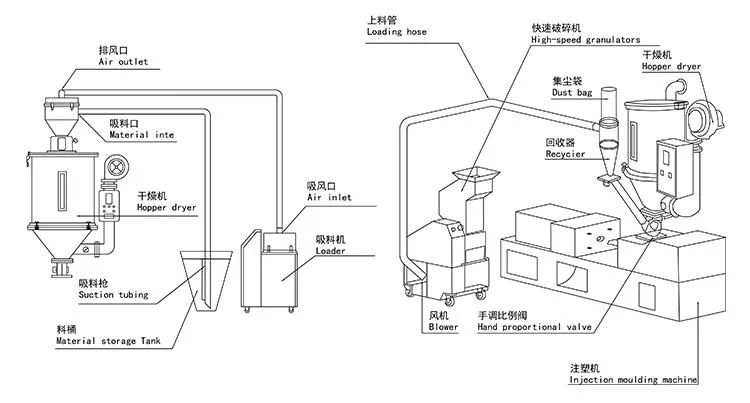

Air blown out of blower became high temperature drying air after being heated. Through screen protector and hole sceen, hot air can be equably dispersed in the material of storage tank. Hot air recycler is optional so the air enter drying blower after being filtered to form a closed loop circle and save electricity.
Features
Using the high performance of the uniform dispersion of hot air diffusion device, keep the plastic dry temperature, increase the drying efficiency.
2. The unique hot air duct design, can avoid powder accumulation in the bottom of the electric heating pipe, causing combustion.
3. The barrel and internal parts are all made of stainless steel.
4. Barrel and bottom of separation, easy to clean material, refueling quickly.
5. Using the proportional deviation indicator temperature controller, can accurately control the temperature.
6. There is a double overheating protection device, can reduce the man-made or mechanical failure caused by the accident.
7. A variety of models can provide pre heating timing device, microcomputer control, and double layer insulation material barrel selection.
8. All digital LED control P.I.D status display.
9. 0-99 hours automatically boot time.
10. Provide intermittent drying mode, in order to achieve the purpose of saving electricity. (SHD-DT only with 8-10 Series)
11. Transparent window type magnet base.
Parameters:
Product Name
Hopper Dryer
Capacity
15~800 Kg
Fan Power
50~2000 W
Heating Power
2.2~24 KW
Drying Temperature
125 ℃
