Description

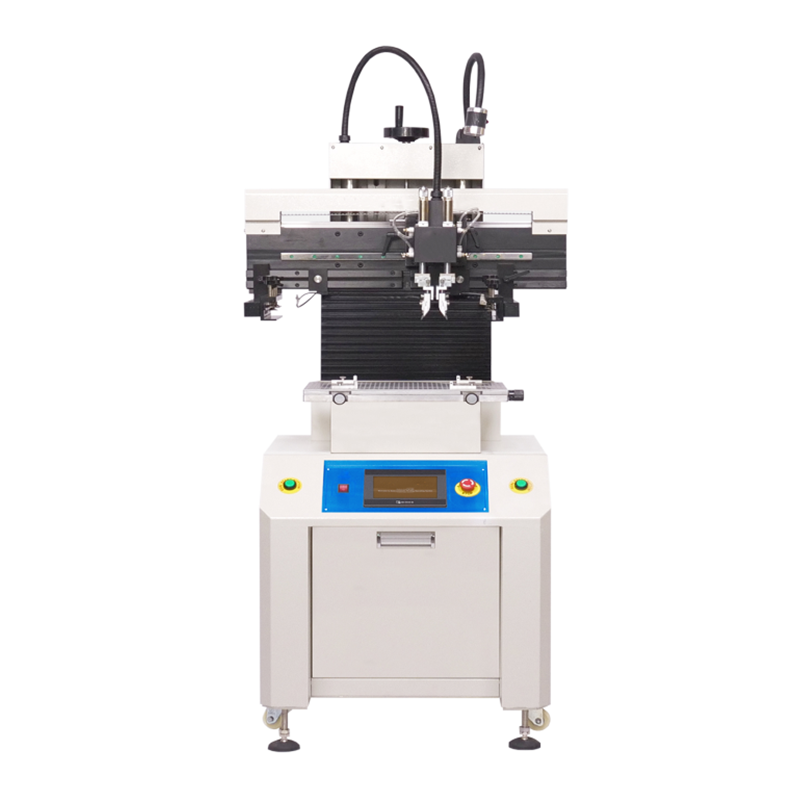

QP3250 semi automatic soldering paste printer high precise sem-automatically solder tin printing machine designed with high-quality speed control motor and linear guide rail and other precision accessories assembled, so that the scraper head printing smoother. Double-scrapers printing pressure can be adjusted by the up/down cylinder throttle valve, the lifting speed can adjust effectively avoid resonance.The printing head can be turned up 45o and fixed lock, convenient scraper loading and unloading and steel mesh cleaning, easy to operate the solder paste printer.The printing head can be fixed after many directions, fixed convenient steel mesh in place, effectively ensuring the printing effect.The altitude of double-scraper of the printing head can be adjusted by adjusting the nut freely, so that the force between the scraper and the steel mesh can be controlled.The level of spacing between the printing table plate and the steel mesh, the adjustment of the scale of the precision spinner, and the scale number display.The robot arm moving range can be freely adjusted by the proximity switch, suitable for the requirements of different specifications of steel mesh.The printing table plate has high density snail bee hole with the use of thimble and positioning needle, free positioning, simple operation, quick replacement, and suitable for single-sided substrate and double-sided substrate production work.Electrical components using a microcomputer PLC combined with touch screen control, free choice of single or multiple printing and manual, semi-automatic and other modes.
product namesemi-auto stencil printing machinemodelQP3250printing table acreage320*500mmframe size370*470mm, 420*520mm, 550*650mmsubstrate size320*230mmsubstrate thickness0.2-2.2mmfixation of printing positionpcb outer or pin positioningmicro adjust of table boardfront/back±10mm, F/L±10mmprinting precise±0.02mmmachine repeated accuracy±0.05mmminimum spacing0.25mmusing power supply220v 50/60Hz 100wmachine size900*700*1650mmoutline packaging size1100*850*2120mmnet weight200kggross weight250kg
