SMT Inspection Conveyor used for easing, inspection, testing PCBs
SMT Conveyor PCB Inspection Conveyor which mainly used for connection between SMT and AI production line .used for easing, inspection, testing PCBs or manual plug-in of electronic components between PCB
Description
Inquiry
Description

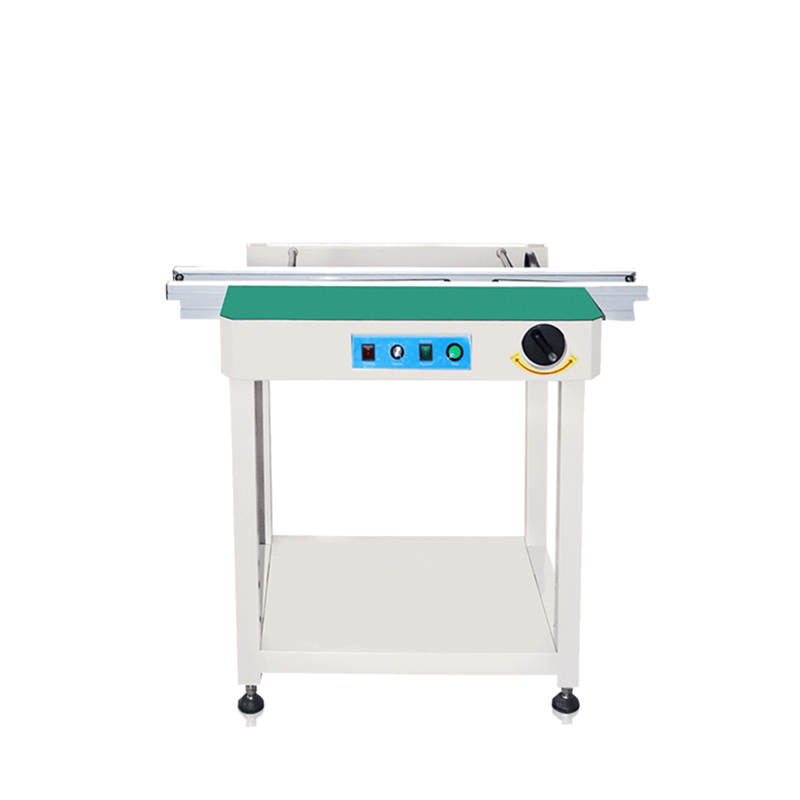

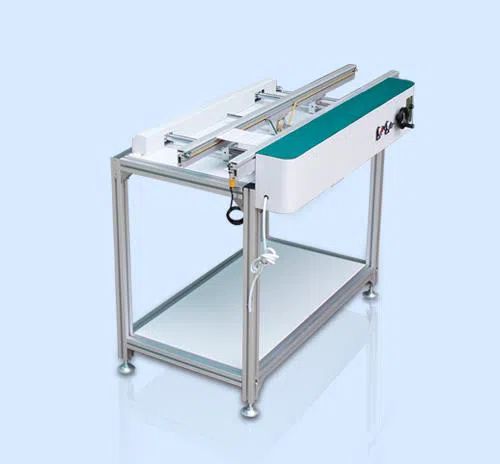

SMT Conveyor QIHE SMT Inspection Conveyor mainly used for connection between SMT and AI production line, can be used for easing, inspection, testing or manual plug-in of electronic components between PCB.Width adjustment mechanism with double screw nut, easy to operate; Adapting high-quality speed motor; Input total power supply voltage: single phase 220V, power consumption 30W; Using a professional wear-resistant base belt, tension pulley and pulley evenly bearing; Equipped with signal communication interface at a standard level, online connecting with other equipment. Automatic/manual switching functions, photoelectric switch detection PCB board.
The docking station is used for connection between SMT production lines, and can also be manually inserted by buffering, inspection, testing or electronic components of the PCB.
ModelQJB50QJB100QJB120QJB200Rail Length(mm)500 mm1000 mm1200 mm2000 mmDimension (mm)500*700*9501000*700*9501200*700*9502000*700*950PCB Width50 to 350 mm50 to 350 mm50 to 350 mm50 to 350 mmPCB DirectionL→R or R→LL→R or R→LL→R or R→LL→R or R→LSpeedAdjustableAdjustableAdjustableAdjustableControl SystemPLCPLCPLCPLCCommunicationSMEMA for in & outSMEMA for in & outSMEMA for in & outSMEMA for in & outPower SupplyAC 220V 50/60HzAC 220V 50/60HzAC 220V 50/60HzAC 220V 50/60HzWeight70 Kg95 Kg105 Kg150 Kg
