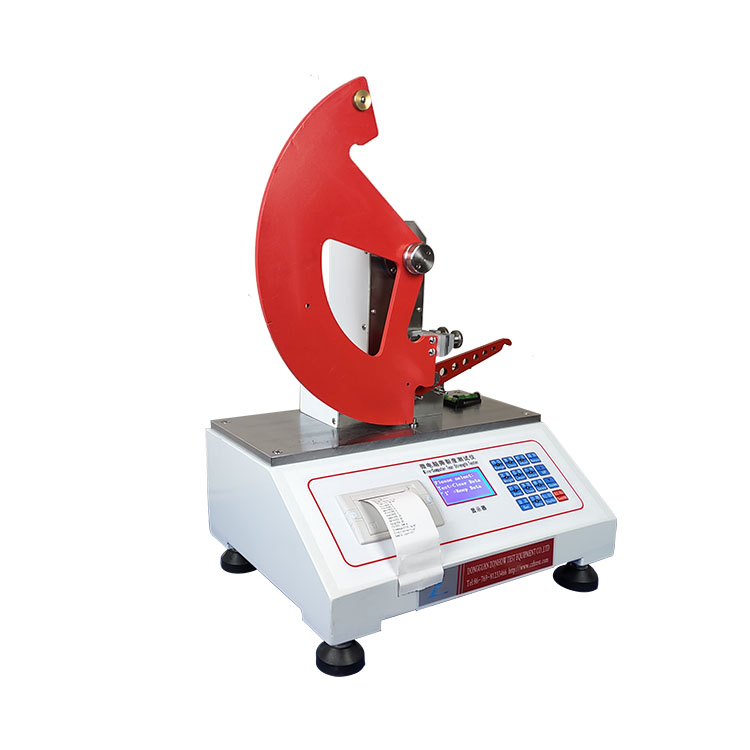

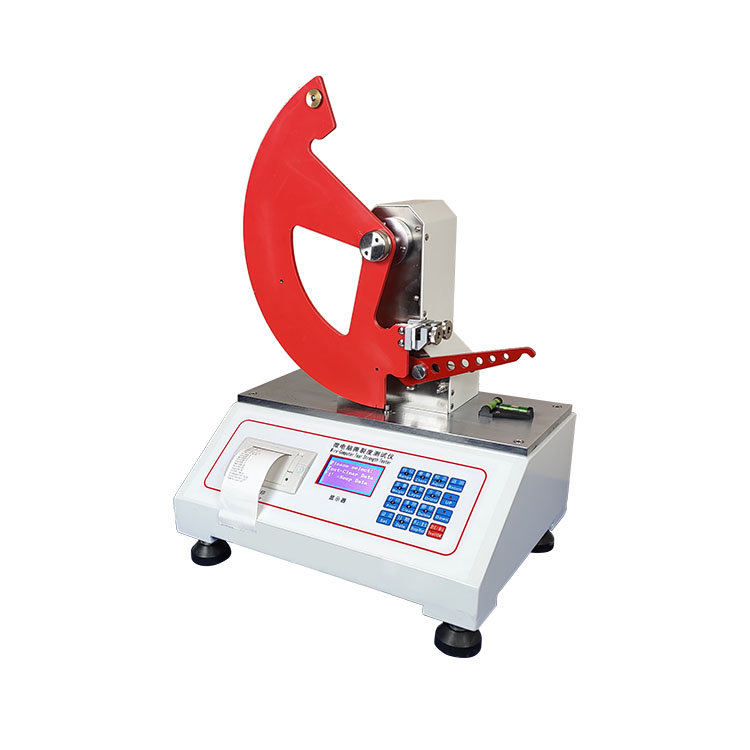

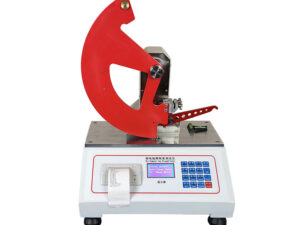

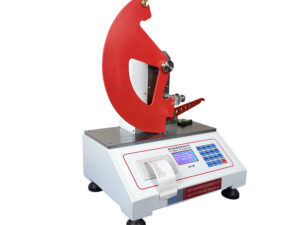

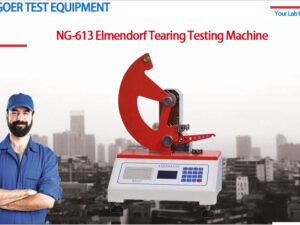

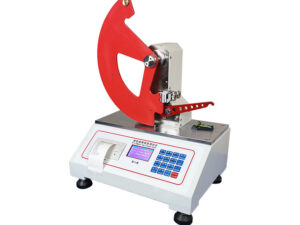

Paper Elmendorf Tearing Testing Machine, Paper Tear Strength Tester
Model
NG-613
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:
Electronic Tearing Tester is an electronic tear tester developed by our company according to the national standard for determining the tear properties of paper or low-quantity paper and corrugated paper. It is widely used in the field of testing of paper materials in colleges and universities, research institutes, quality inspection departments, and paper printing and packaging production departments.
Standard:
ISO 1974: Paper- Determination of Tearing Resistance –Elmendorf Tearing Tester Method
TAPPI T414: Internal Tearing Resistance of Paper (Elmendorf-Type Method)
GB/T455: Paper and Board Determination of Tearing Resistance
QB/T 1050: Paper and Board Tearing Tester
Features:
Ø Automatic release pendulum, high test efficiency
Ø Self-test function
Ø In English and Chinese, easy to use
Ø Feel free to query and delete inappropriate test records
Ø Real-time display of angular changes during testing
Ø Automatically calculate, count, and print test results
Ø Thermal printer core, no need to use ink and ribbon, no noise when working, fast printing speed, etc.
Specifications:
Model
NG-613
Measurement range
10~16000mN (A gear:10-8000mN, B gear:8000-16000mN)
Resolution
1nM
Accurate
±1.0%
Tearing arms
(104±1)mm
Size of clip paper
(25×15)mm
The distance between the paper clip
(2.8±0.3)mm

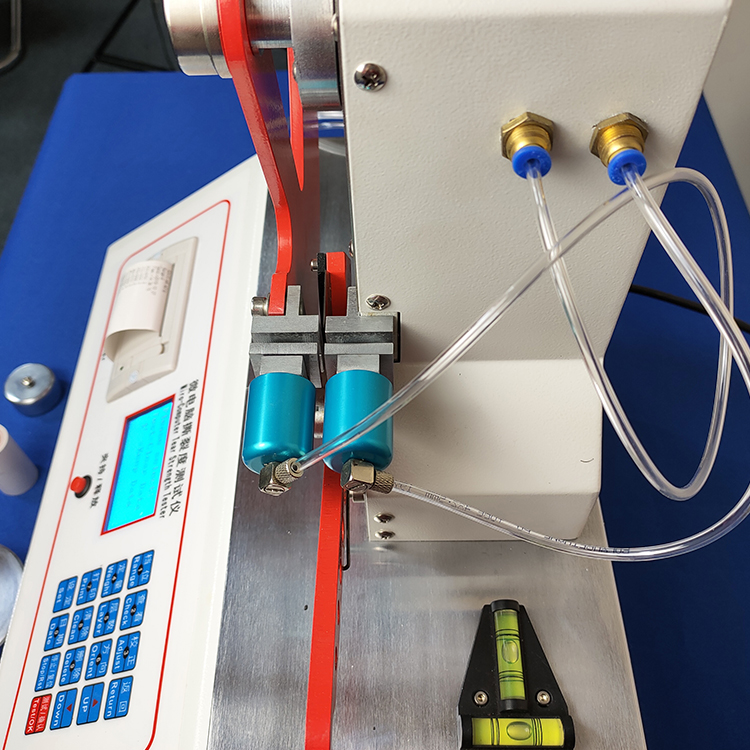

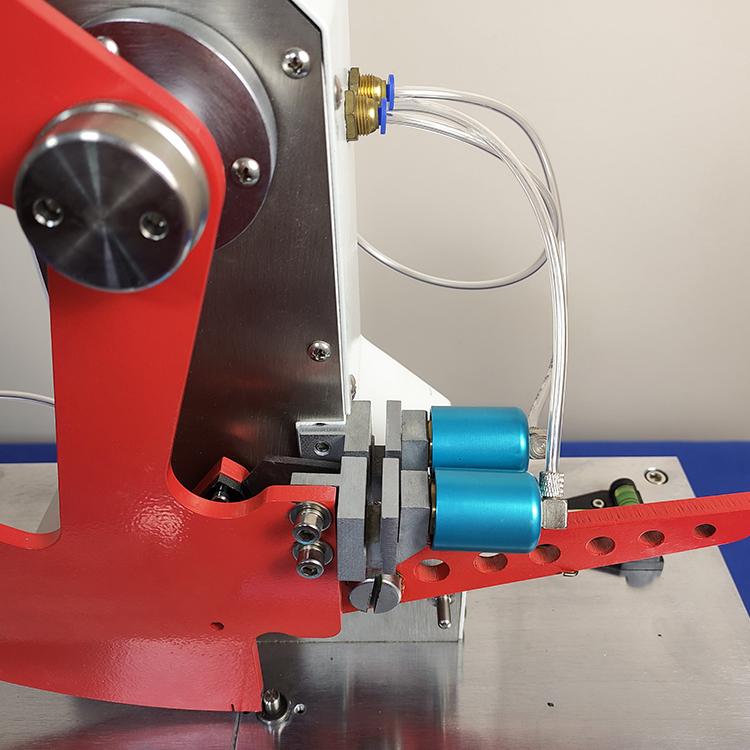

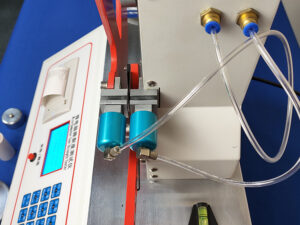

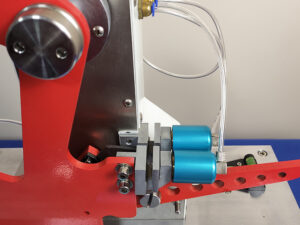

Clamping method
Manual (Pneumatic for optional)
HMI
3.2in LCD display, real-time display of test data
The initial angel of tearing
27.5±0.5
Tear distance
(43±0.5)mm
Printout
Modular integrated thermal printer
Working environment
Temperature (20 ± 10) ° C, humidity <85%
Dimensions
510*400*365mm
Power
AC220V 50Hz
