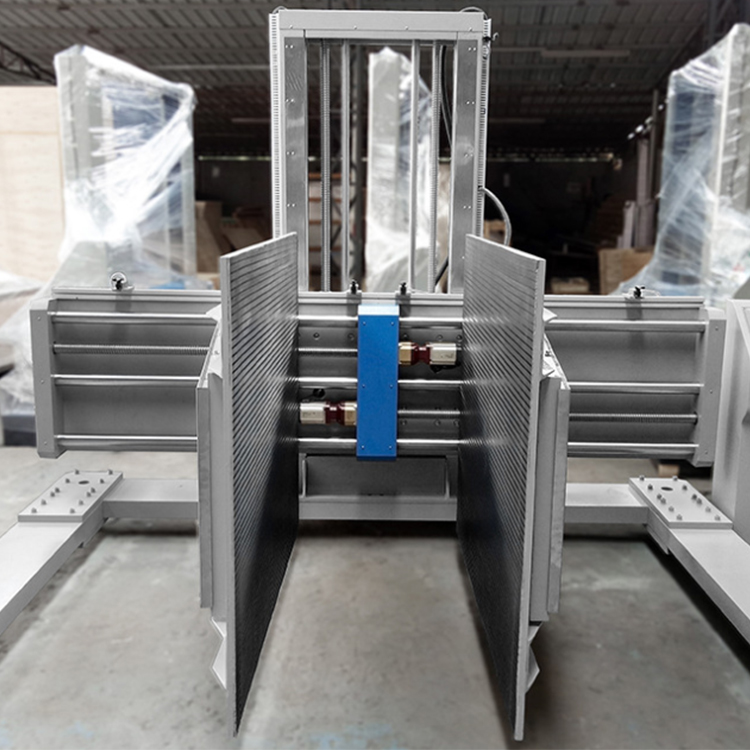

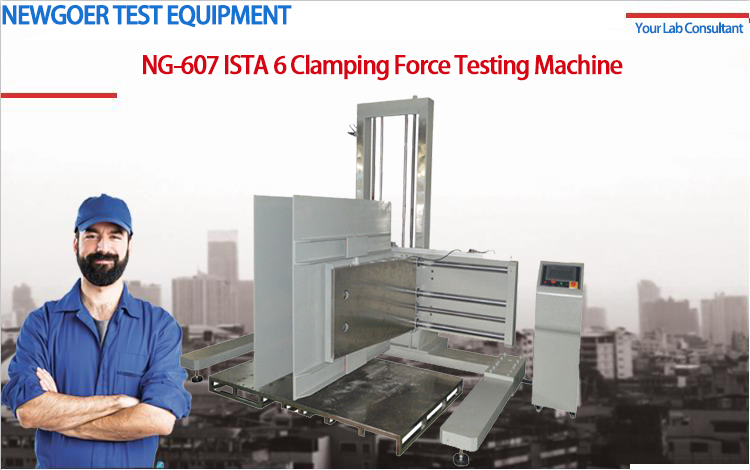

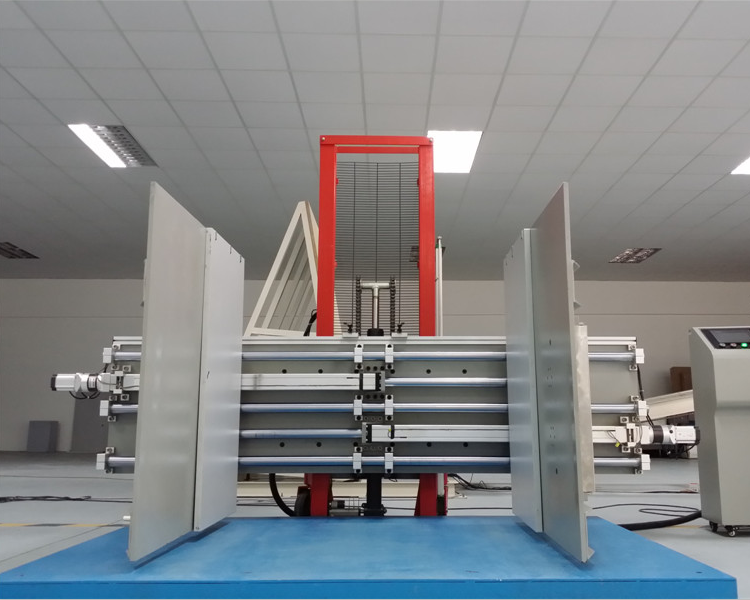

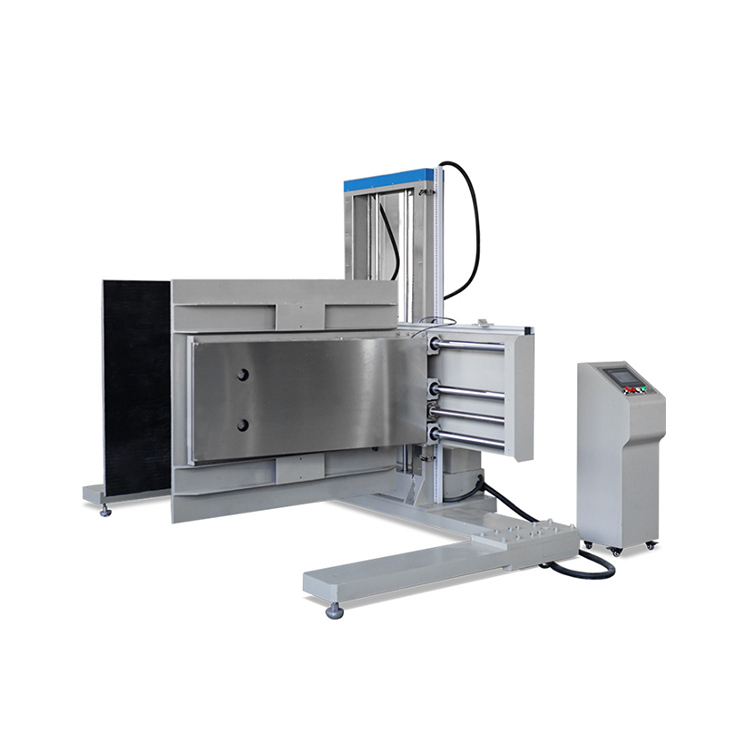

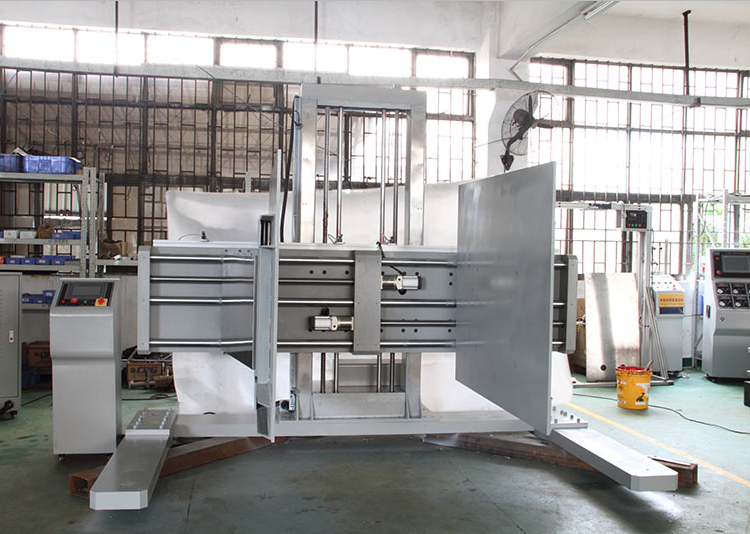

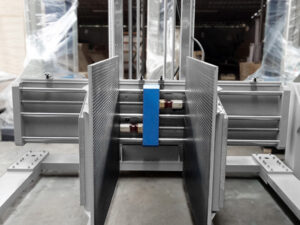

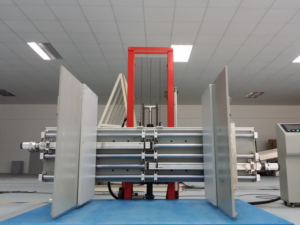

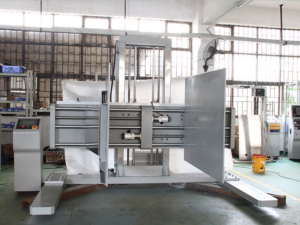

ISTA 6 Clamping Force Testing Machine, Horizontal Compression Tester
Model
NG-607
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:
Clamping force testing machine is designed to measure the deflections of product packages and protective capacity of packages for product when suffering level pressure in the process of transportation and storage to improve the quality of product package.
It is suitable for the packing of kitchen ware, furniture, household appliances, toys and other
finished products, especially for the clamping strength test of the packing pieces required by
SEARS in the United States.
Standard:
ISTA 6 SERIES: Member Performance Tests.
ASTM D-642
ASTM D6055
Main Features:
* The clamping force use the combination of ball screw and servo motor, and the output is stable and controllable.
* Clamping force is directly set on the operation interface, real-time display in the working process, real-time monitoring and adjustment of software
* The rise and fall of the plywood use the wire rod motor mechanism, the rise and fall is stable, with the height grating ruler, makes the height control easier and accurate
* Safety Protect: Overload protection, over voltage protection & limited position protection device
Specifications:
Max. Force
500kg (customized)
Motor
Panasonic Servo Motor
Clamping pressure force
According to the transport diagram on the test sample, the operator can add 400~3000Lb (adjustable) pressure force on the corresponding surface
Clamping board size
1200*1200mm
Clamping board adjustable height
0~1000mm
Lifting speed
10-305mm/min
Clamping board expansion width
200~2000mm
Baseboard dimension
1500*1500mm
Accuracy
within ±5%
Clamping board requirement
Make sure the two clamping board are flat, parallel and non-deform under the work condition(2000Pound) and clamp board and land are vertical. Clamping board thickness no less than 25mm.
Controller
Touch screen
Safety features
E-Stop
Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat
Power
AC380V, 50Hz
