Summary:

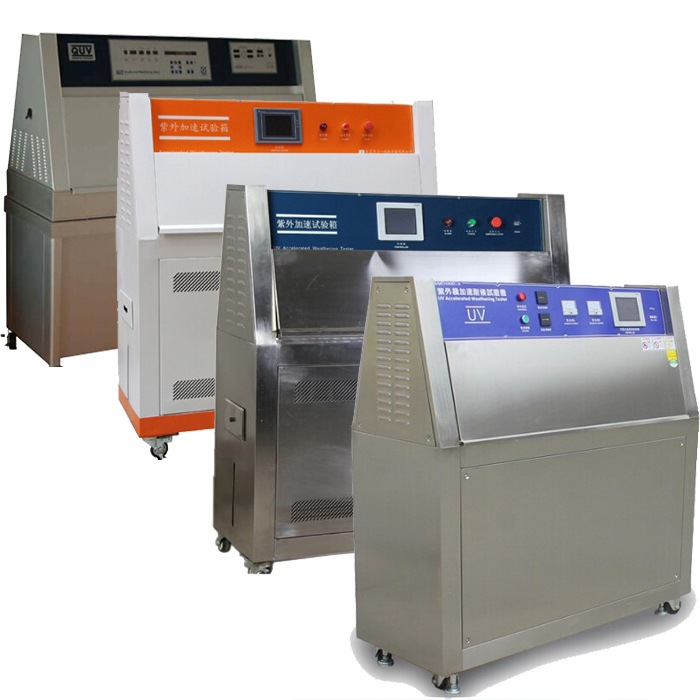

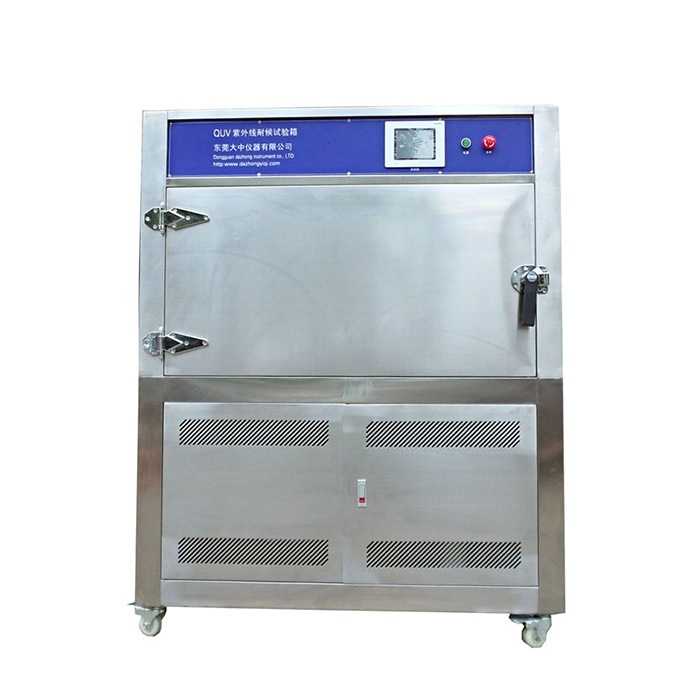

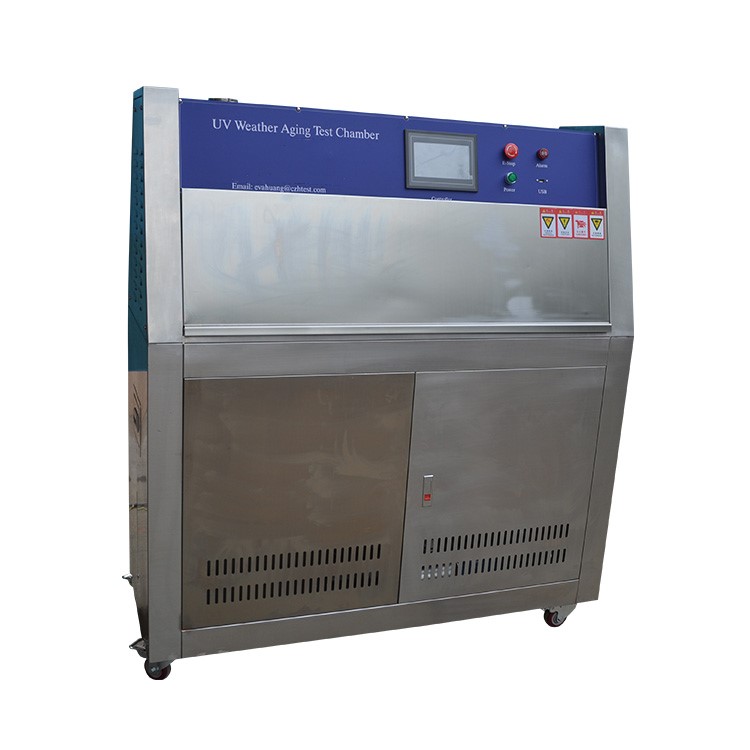

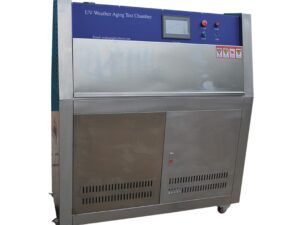

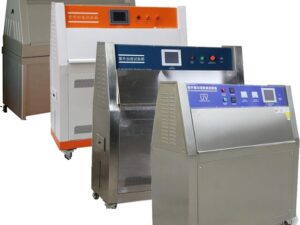

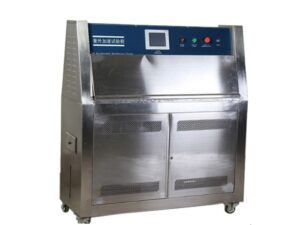

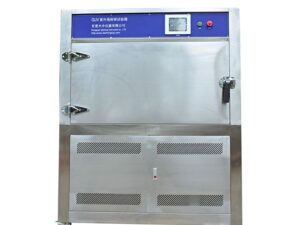

UV accelerated weathering aging test chamber can provide reliable aging test data to make the exact prediction of products’ weathering fastness (aging resistance)., which is conducive to sift and optimize the formula. uv accelerated weathering aging test chamber is used in many industries, such as: paint, inks, resin, plastics, printing and packaging, adhesives, auto and motorcycle industry, cosmetics, metal, electronic, electroplating, medicine,etc.
Usages:
UV accelerated weathering aging test chamber is the most widely used UV Weathering tester in the world, there are thousands of ultraviolet aging testers coming into use. uv accelerated weathering aging test chamber has become the standard of the UV test, fit standards of ISO, ASTM,DIN,JIS,SAE, BS, ANSI, GM, U.S.GOVT, ect. It can simulate the damage of sunshine, rain, dew to the material quickly and exactly. Damage types including bleaching, discoloration, loss of light, powder, crack, turbidity, bubble-based, embrittlement, strength decline and oxidation need to be engendered in months or years but can engender in a few days or weeks.
Standard:
IEC61215, ASTM D4329,D499,D4587,D5208,G154,G53;ISO 4892-3,ISO 11507;EN 534;
BS 2782;JIS D0205;SAE J2020,ect.
Features:
Uv accelerated weathering aging test chamberis designed according to uses’ operation,
it’s easy to operate, safe and reliable.
The thickness of specimen installation is adjustable and the specimen installation is fast and convenient.
Uv accelerated weathering aging test chamber door rotating up does not interfere with the
operation and the tester takes a very small space only.
Uv accelerated weathering aging test chamber hasunique condensating system can be contented by tap water.
The heater is under the container rather than in the water, which is long life, easy to mainten.
The water level controller is outside the box, easy to monitor.
Uv accelerated weathering aging test chamber has truckles, convenient to move.
Computer programming is convenient, automatically alarming when incorrect operated or
faulted.
9. Uv accelerated weathering aging test chamberhas Chinese and English instruction book, convenient to consult.
Specifications:
Inside dimension
450*1170*500mm
Materials
Inside and Outside SUS#304 stainless steel
Temperature range
RT+10~70°C
Temperature uniformity
±2°C
Temperature fluctuation
±0.5°C
Temperature control
PID SSR control
Humidity range:
95%RH
Controller
Korean TEMI 880 programmable controller
Control mode
Balance temperature humidity control (BTHC)
Test cycle setting
Illumination, condensation and water spray test cycle is programmable
Lamp power
40W/Piece
Distance from sample to lamp
50±2mm (adjustable)
Centre distance between the lamp
70mm
Wavelength ultraviolet light
Wavelength ultraviolet light
Irradiation black panel temperature
45°C~80°C
Standard Specimen Size
48* 75×150mm (special specifications can be custom-made)
Water consumption
8L per day
Testing time
0~999H, adjustable
Power
220V/50Hz /±10% 4.5KW
