Summary:
The safety shoes compression and puncture tester detect the cranial anti-compression of shoes, as well as puncture-resistant of steel plate, to prevent the injury happening to
worker who wearing the shoes in the workplace by the shoes poor quality. Testing equipment can be arbitrarily adjusted according to customer requirements, and also has kg, N, lb 3kinds of units can be arbitrary switching, it also has a micro-printer, you can print out the testing results.
Standards:
EN12568,ANSI, JIS, CSA, GB120171989, LD501994 etc.
Test Principle
Compression test: By using the corresponding standard pressure (EN standard: 15KN± 0.1kN;The anti-compressibility of the toe cap is assessed by measuring the minimum height (i.e., the safety height) retained by the cylinder below when pressing the toe cap at an ANSI standard of 1000±50LBS.
Puncture resistance test of steel plate:The puncture resistance of a steel plate is evaluated by measuring the maximum force at which the steel plate penetrates or whether the steel plate penetrates under a given force.
Specifications

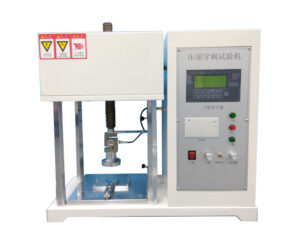

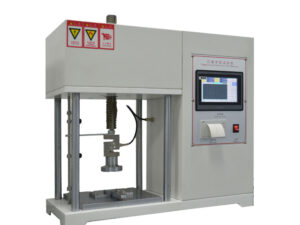

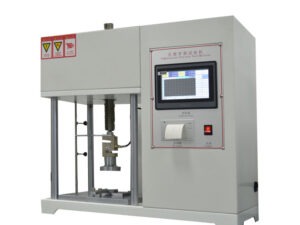

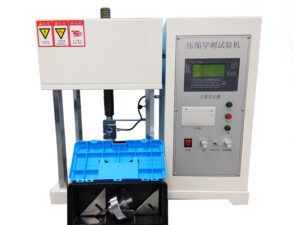

Shoes Compression and Puncture Tester
standard
BS, EN-344, ANSI-Z41, ISO-20344, LD50, GB
Display
English display
Compression strength
（EN）15±0.1kn,(ANSI)1000±50～10000±501bs
Compression speed
（EN）5±2mm/min,(ANSI)501bs/sec
Units
kg, N, LB can exchange
Resolution
1/10000
Max load
2000kg
Printing
Can print, query test results
Other features
It can be set the date and time for experiment; have limit
Protection and peak retention feature that automatically shut down
Pressing plate hardness
(EN) 60HRC
Weight
150kg
Power
1Φ,AC220V,15A
