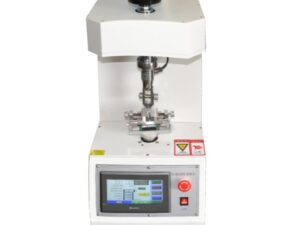

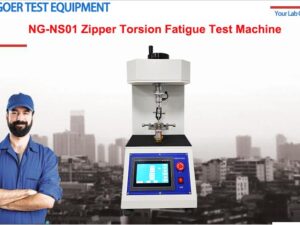

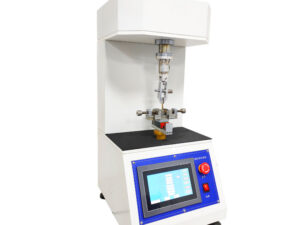

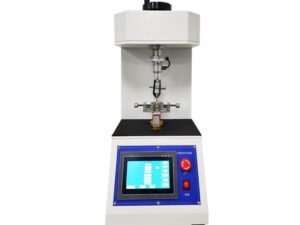

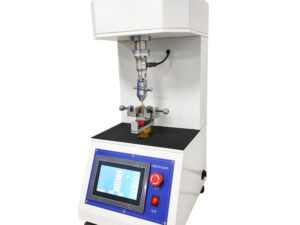

Universal Zipper Torsion Fatigue Testing Machine, Zipper Head Torque Life Tester
Model
NG-NS01
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Application
This machine is suitable for testing the binding strength of the zipper pullers and the ability to withstand the torsion value, so as to provide various reference and quality control for the production.
Standrds
Meeting standard: QB/T 2171-2001.QB/T 2172,QB/T 2173
Principles
Control mode: the Taiwan letter jie touch screen + PLC, servo motor drive, Chinese interface, easy operation, all the test conditions directly by the touch screen input: Angle, velocity and other parameters can be set;
Specifications
Torque range
5.000N.m (500cn.m)
Torque accuracy
0.1 cn.m
Torsion Angle
±150°
Torsion Angle accuracy
0.1°
Torsional speed
0.5r/min-2.0r/min
Deceleration ratio
20 times
Power supply
AC220V, 50Hz, 100W
External dimensions
460×410×550mm
Weight
50kg
Features:
Touch screen control, simple interface, easy to operate, touch sensitive, switch between Chinese and English.

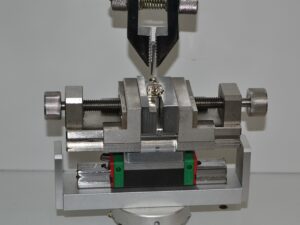

The torsional fixture is made of stainless steel, with a simple and elegant appearance.
The rotating structure adopts low noise reducer, which runs smoothly and has low noise.
Three test methods: torsion break test, fixed Angle and fixed load.
Can connect to computer and printer.
All experimental data can be inquired without connecting to the computer.
7, Microcomputer control, automatic testing, calculation and analysis results, printing data.
Units can be switched (cn.m and N.m).
