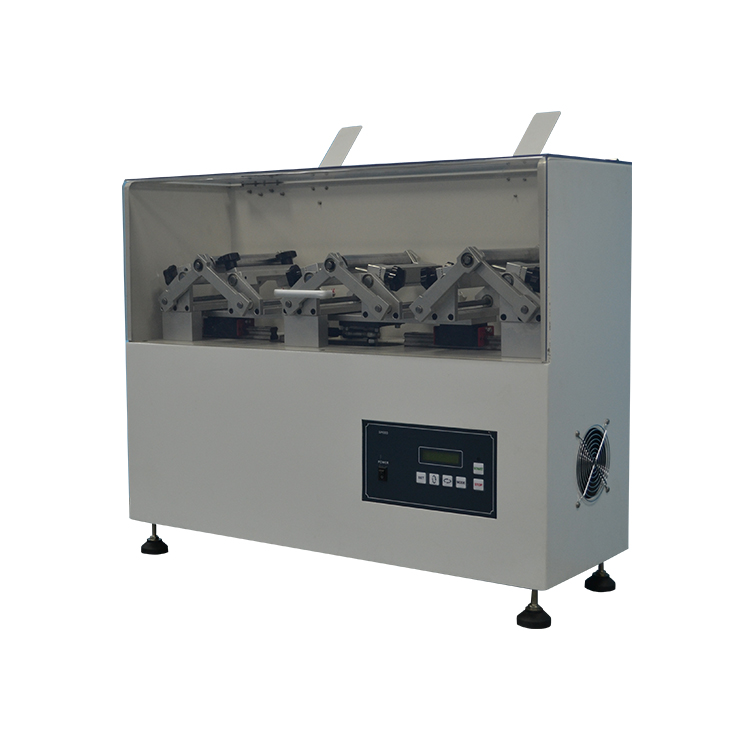

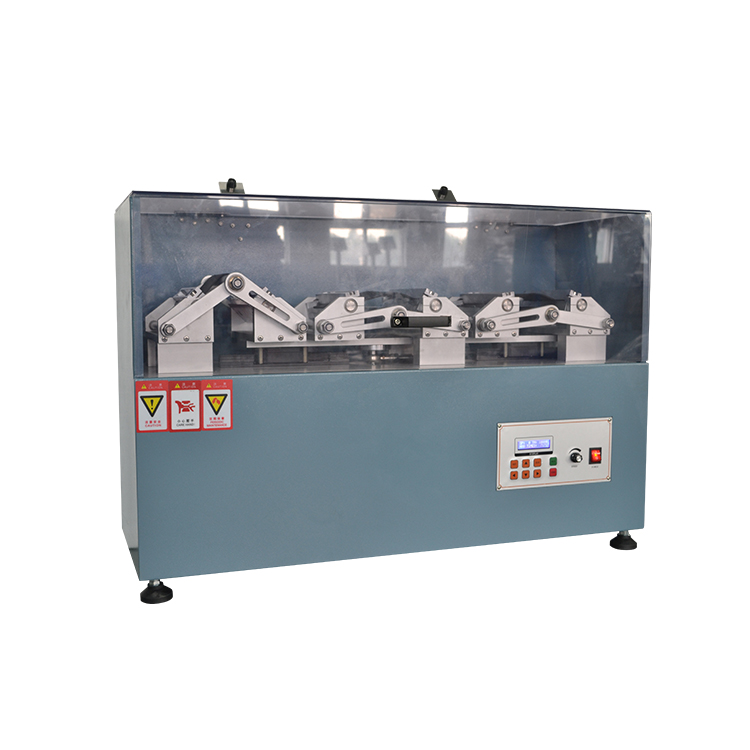

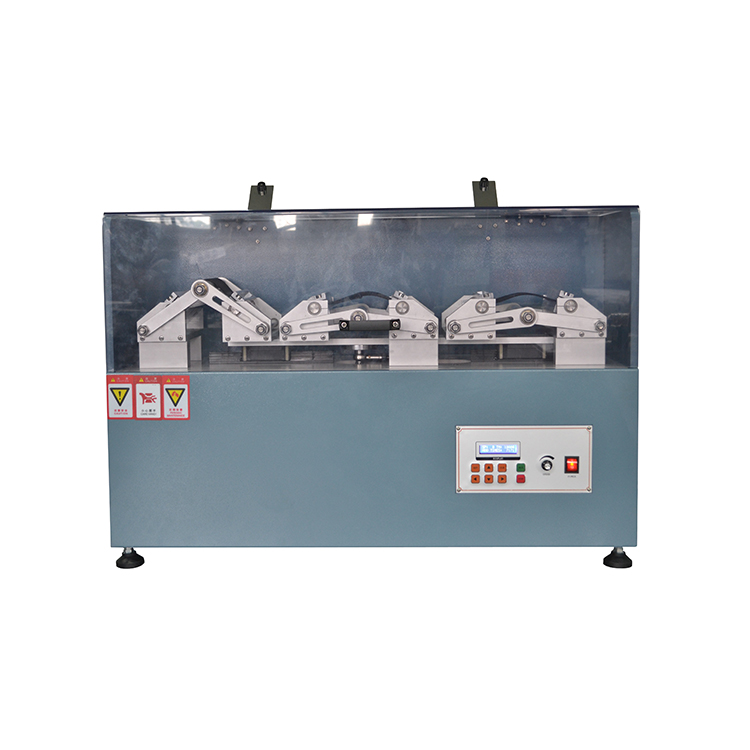

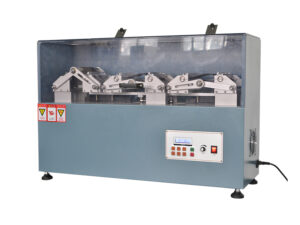

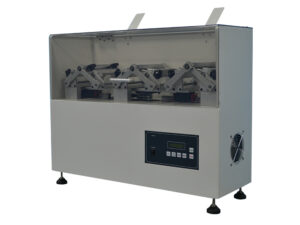

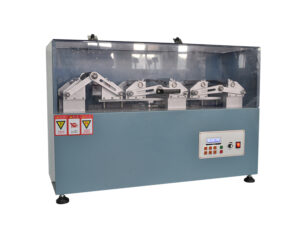

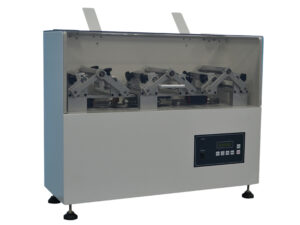

EN Shoe Sole Flexing Tester, Footwear Sole Flexing Resistant Test Machine
Model
NG-372
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Product Description:
Shoes Outsole Flexing Test Equipment is to test the use life after the sole flexed. The sole may break or craze after long-time roller bending. When using this shoes testing equipemnt, impale several holes at the place where has max bending rate, then fix the two ends of the sole, with end fixed and the other movable. During test, make the circular shaft rise repeatedly, after bended enough times, check its stretch stage through magnifying glass.
Standards:
SATRA TM161, ISO 17707, ISO20344 section8.4.2 ,
ISO20347 section 5.8.4, AS/NZS 2210.2 section8.4.2
GB/T 20991section8.4.2, QB/T 288
ASTM-D1052, ISO5423/4643
Specifications:
Sampling
3pcs
Flexing angle
90°
Flexing Speed
125-150CYCLES/MIN
Width of the grips
144MM
Counter
LCD 0-999999
Dimension(W*D*H)
100*53*30CM
Weight
98kg
Power
AC220V,3A
