Summary:
Brinell hardness testing is the largest indentation hardness test of all the testing method; it can reflect the overall performance of the materials, but cant be influenced by the sample organization and composition micro-segregation uneven, so it is a hardness test of high precision. It is widely used in metallurgy, forging, casting, without hardened steel and non-ferrous metals industries, laboratories, universities and scientific research units. It is the closed loop sensor loading, the electronic automatic loading system, has 10 levels test force. The machine has high precision, high repeatability and stability, easy operation.
Application Areas:
Suitable for the precision testing of parallel plane,
Stable and reliable for the curved surface testing .
Application Materials:
Ferrous metals, nonferrous metals and bearing alloy material
Features:
Large digital LCD high resolution displaying screen, menu smart tips and flexible and convenient operation functions;
Automatically input indentation diameter, directly display the hardness value, any hardness can be shown in two modes of unit, without checking the reference table;
Full automatic close-loop transducer control system;
Built-in printer, equips with RS-232 data port, suitable to connect to PC;
Equips with digital microscope and precise data calculating system, can immediately display result after a gently press;
Strong structure, good rigidity, high testing accuracy and efficiency, durable and reliable performance;
Employs electron loading instead of weight loading, auto-protection against overload and over-bit;
Full automation testing course, without man-made error;
Machine shell is made of a casting, with structural stability, which will not deformed, can work under more harsh environment;
Suitable to install with optional CCD brinell indentation image processing system device (see picture below);
The machine accuracy is in line with GB/T231.2, ISO 6506-2 and American Standard ASTM E10.
Specifications
Model
NG-HB3000A
Brinell Scale
HBW2.5/62.5、 HBW2.5/187.5、 HBW5/62.5、HBW5/125、HBW5/250、
HBW5/750、 HBW10/100、 HBW10/250、 HBW10/500、HBW10/1000、
HBW10/1500、HBW10/3000
Testing Force
62.5kgf (612.9N)、100kgf (980.7N)、125kgf (1226N)、187.5kgf (1839N)、250kgf
250kgf (2452N)、500kgf (4903N)、750kgf (7355N)、1000kgf (8907N)、1500kgf
1500kgf (14710N)、3000kgf (29420N)
Testing Range
（8～650）HBW
Max Height of Specimen
240mm
Min Measuring Unit
0.005 um
Duration time
5~60s
Magnification of Microscope
20X
Carried Standard
EN, ISO 6507, EN ISO 6506, ASTM E-384, ASTM E-10-08, ASTM E-384
GB/T231.2，JJG150
Distance of Indenter to outer wall
145mm
Power supply
AC220+5%,50~60Hz
Standard Accessories:
Name
Quantity
Name
Quantity

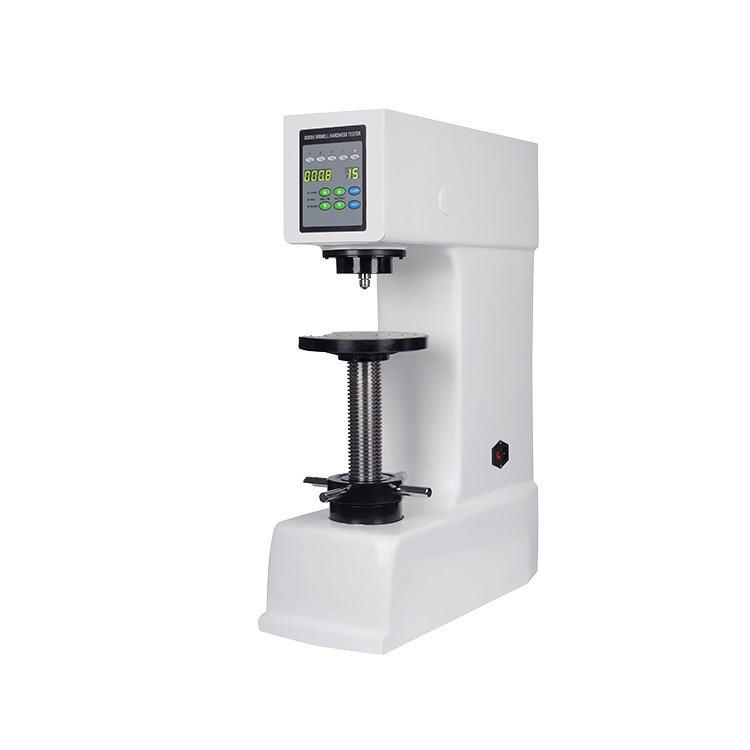

Main Unit
1
Accessory Case
1
Measurement
microscope(20X)
1

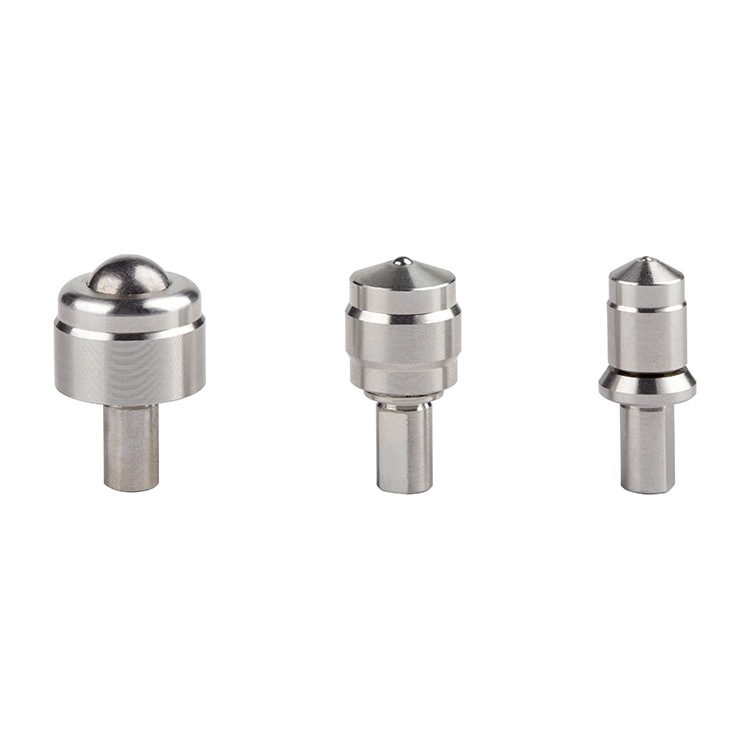

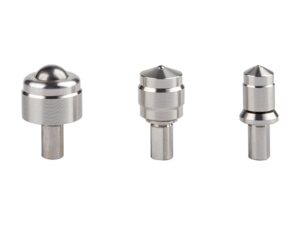

Diameter φ2.5、φ5、φ10 mm
Hard Alloy Steel Ball Indenter
Each 1
HBW/3000/10(150~250)
HBW/1000/10(75～125)
HBW/187.5/2.5(150～250)
Each 1

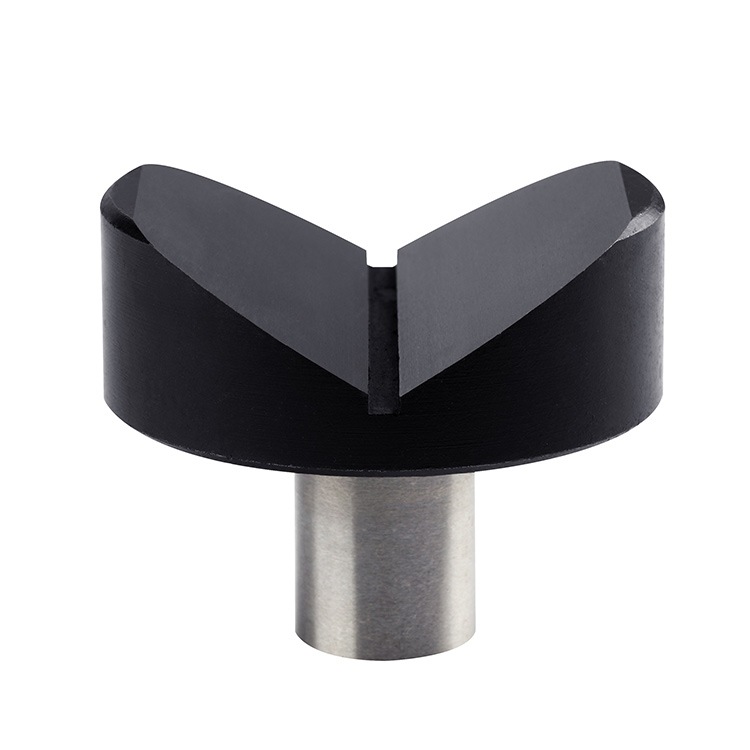

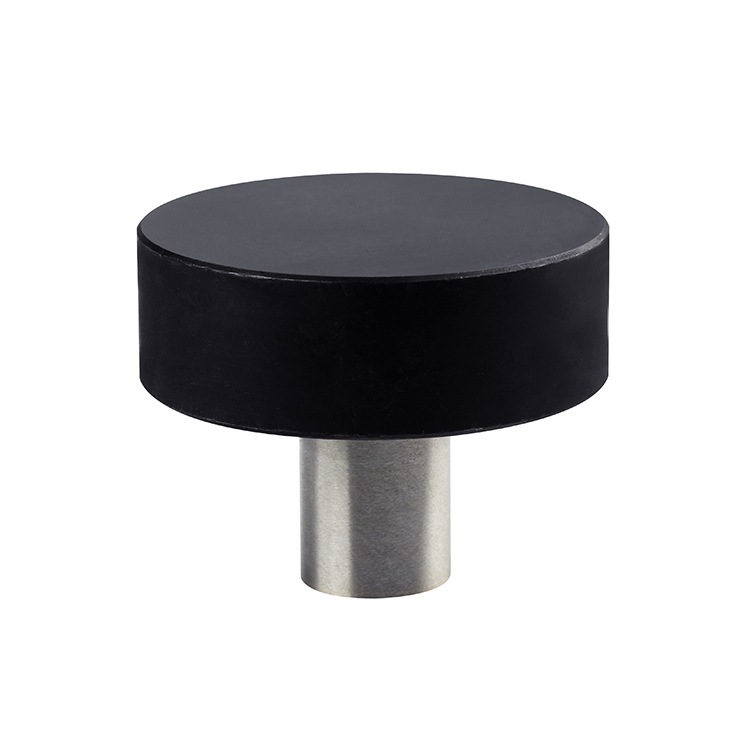

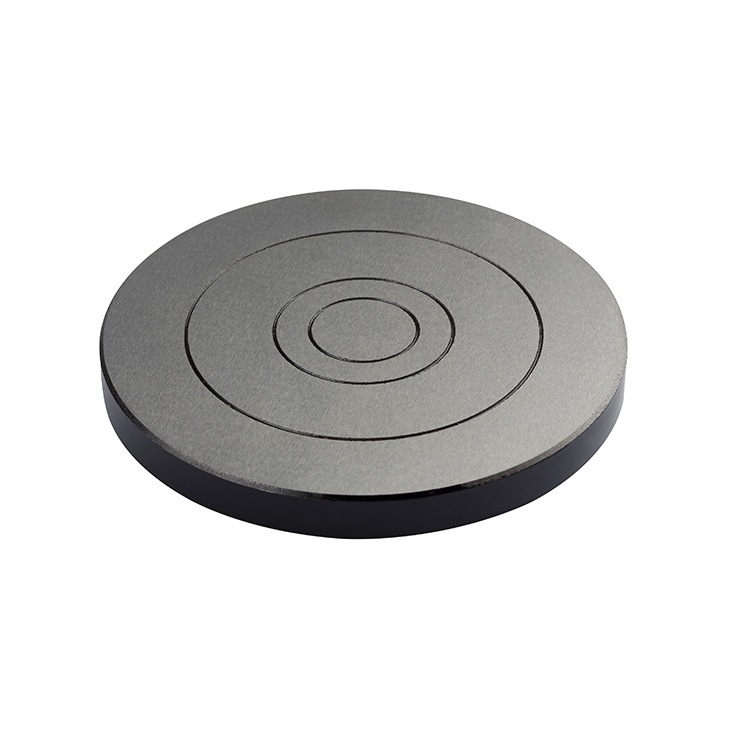

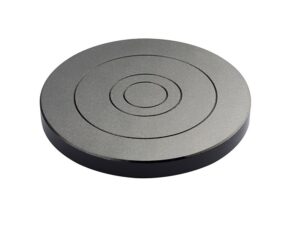

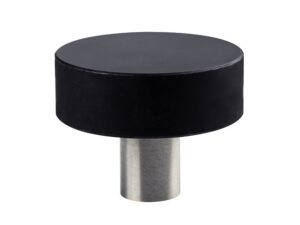

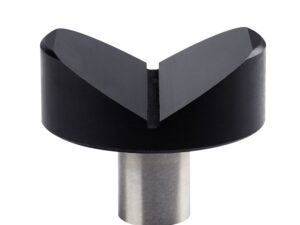

Large, Medium, “V” shaped Testing Table
Each 1
Diameter fastening screw
1
2A Fuse
2
Dust proof covering
1
Power Cable, Print paper
Each 1
HB Reference table
1
Users’ Manual
Each 1
