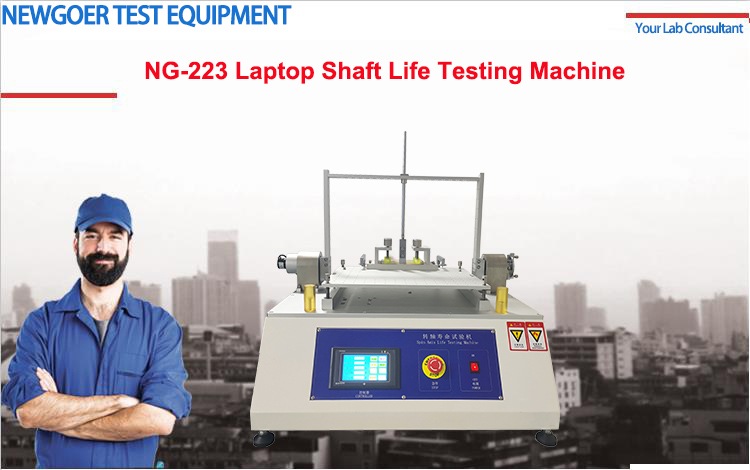

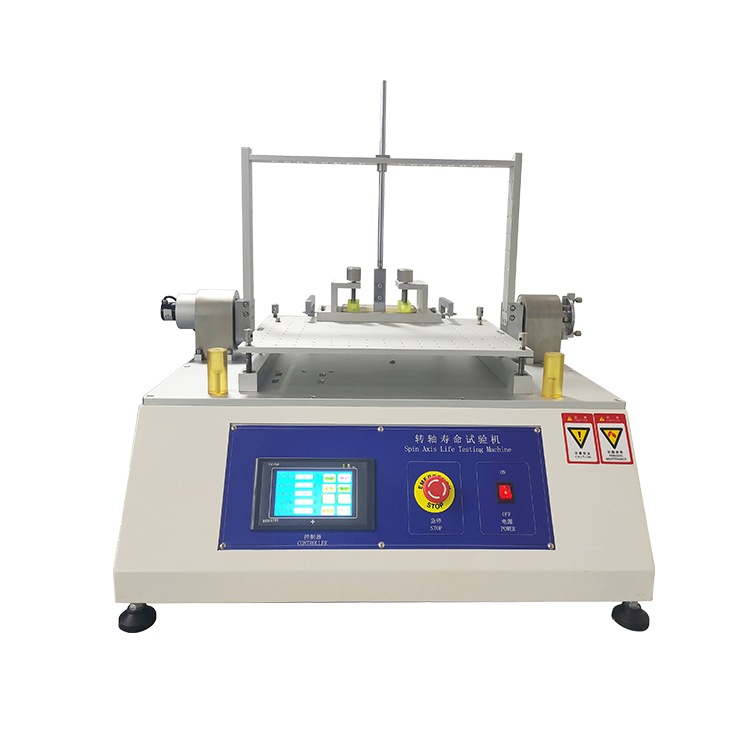

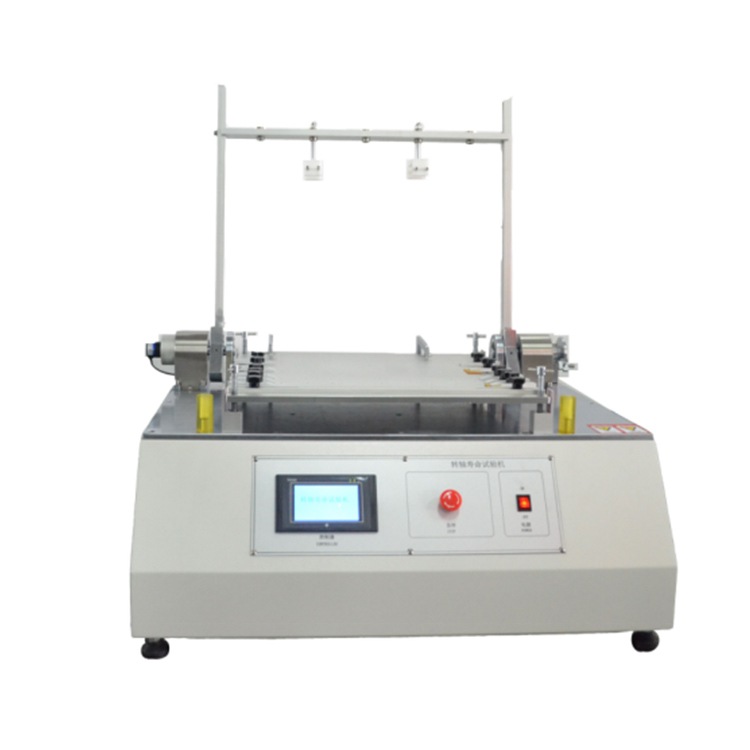

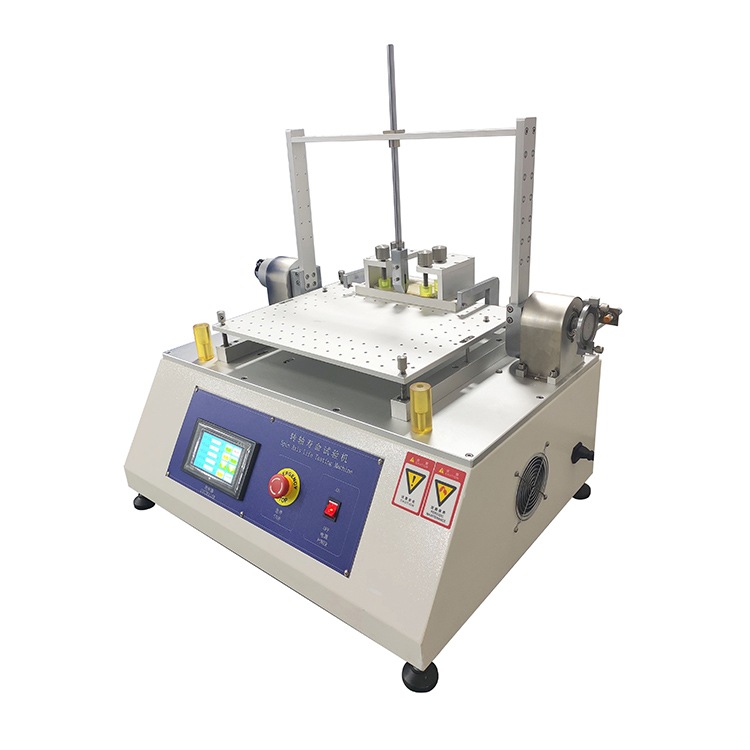

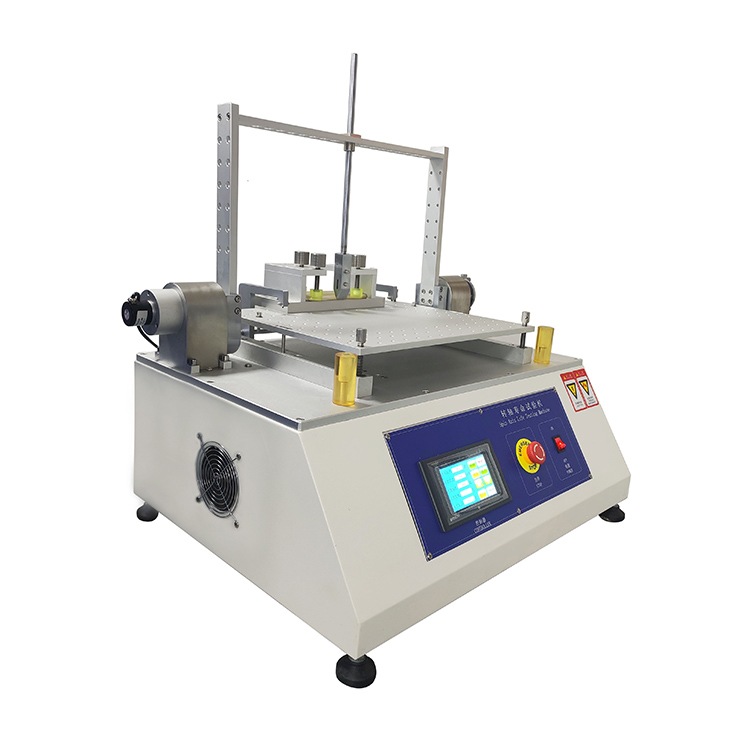

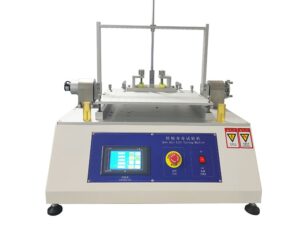

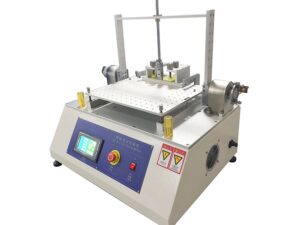

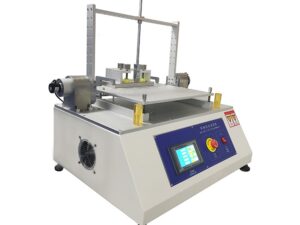

Laptop Hinge Life Tester, Mobile Phone Cover Bending Tester
Model
NG-223
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:
This Laptop Hinge Life Tester is applicable to test the torsion life of LCD MONITOR, all-in-one PC and TV HINGE, it can simulate a LCD MONITOR to swing back and forth repeatedly so as to test whether its spindle still has retention, whether it will damage the plastic body due to the increase of spindle resistance. In a word, this is a good system for HINGE and finished product manufactures to improve the quality of their products. To check the holding capability of the hinge and to check if the plastic body is damage by getting higher resistance of hinge after many opening and closing.
Specifications:
Test Angle
5 ~ 180 degrees (Adjustable)
Display
Touch Screen Controller
Swing speed
Adjustable, MAX 15 times/min (for 180°)
Test times
0~ 999999 (can be setting)
Speed setting
Stepless speed adjusting
Power Supply
AC 220V 50/60Hz
