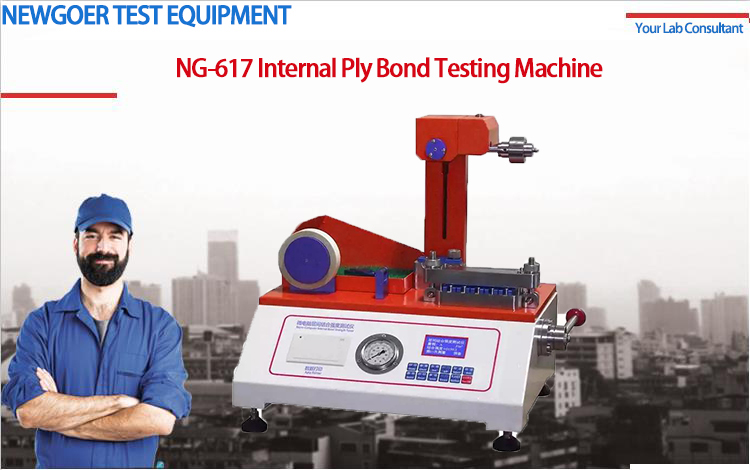

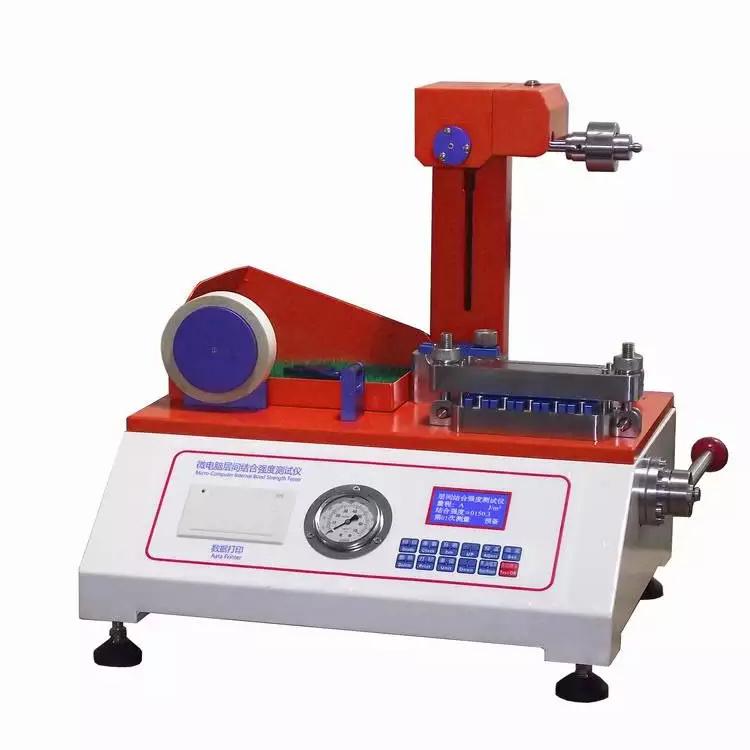

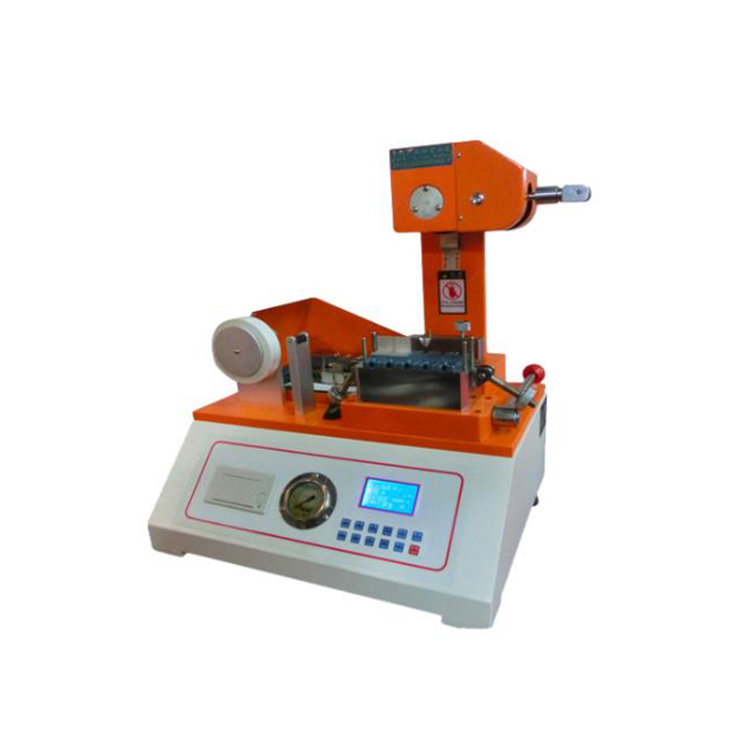

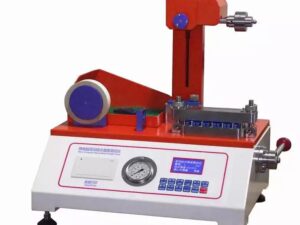

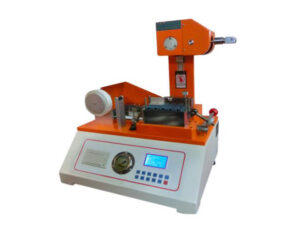

Internal Ply Bond Testing Machine, Paper Internal Resistance Bond Strength Tester
Model
NG-617
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:
Internal Ply Bond Tester For Paperboard is a special testing equipment specially used to
detect the adhesion between layers and layers of multi-layer composite sheet material. It is
widely used in paper packaging industry. For example, interlayer bonding of bobbin base
paper, interlayer bonding of whiteboard paper, interlayer bonding of kraft paperboard, interlayer bonding of cardboard paper, aluminum foil composite packaging material etc.
Standard:
GB/T 26203-2010: Paper and board―Determination of internal bond strength(Scott type)
TAPPI T569pm-00: Internal bond strength (Scott type)
TAPPI T833pm-94
Applicaions:
It can be used for interlamination of yarn tube base paper, interlamination of white paper, interlamination of kraft paper, interlamination of carton paper and aluminum foil
Specifications:
Punch angle
90°
Resolution
0.001lbf/in2
Measuring range
A: (20-500) J/m2 (standard)
B: (500~1000) J/m2
C: (1000~1500) J/m2 (optional)
Accuracy
A: ±1J/m2
B/C: ±2J/m2。

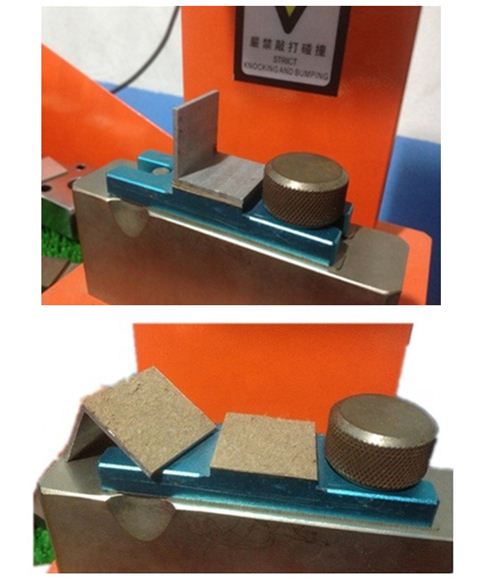

Size of sample
25.4mm×25.4mm

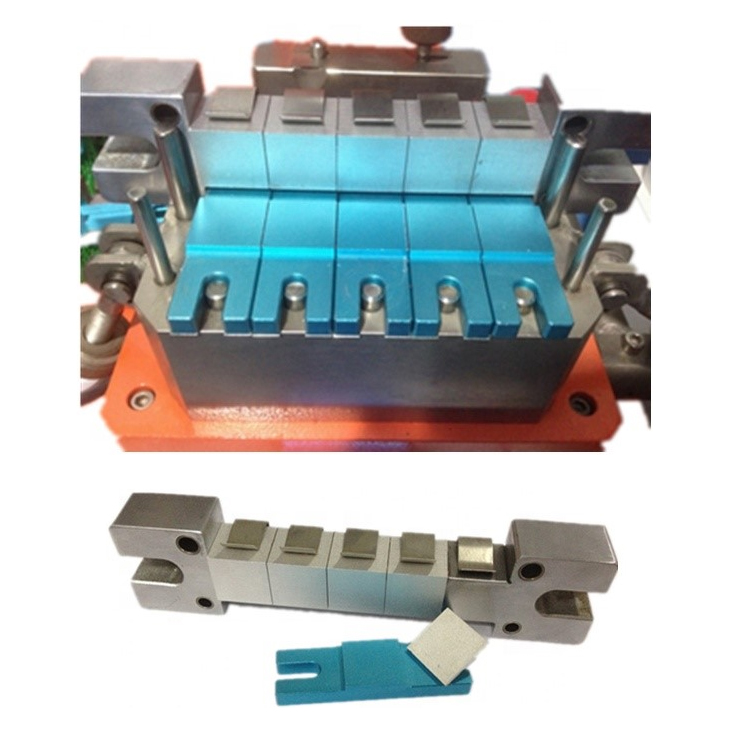

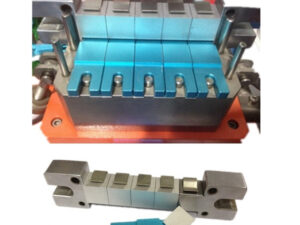

Sample clamping force
0~400N Adjustable
Unit
J/m2、lbf/in2 interchange
Release method
Manual /
Automatic (optional)
Interface
3.2in LCD Screen
Printer
Modular integrated thermal printer
Power Supply
AC220V±22V，50Hz
Weight
62kg
Optional function
Computer connection software
