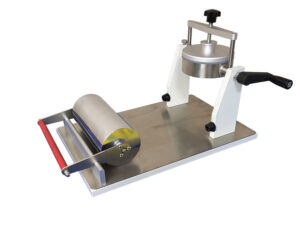

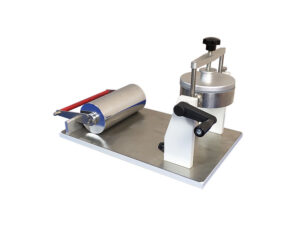

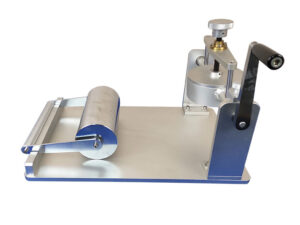

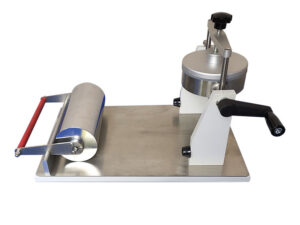

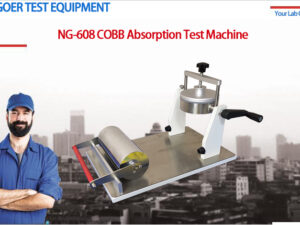

Cobb Water Absorption Tester, Paper and Cardboard Cobb Absorption Tester
Model
NG-608
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:
The design of the instrument is based on the GB/T1540- 2002 paper and cardboard water
Absorption method (Cobb method) provide basic parameters and requirements. This standard
Applies to determination of surface water absorption about all kids of paper or cardboard. But it is
not for the accurate evaluation of paper or the writing performance of cardboard.
Main features:
The value of paper and cardboard surface water absorbing capacity (Cobb): the unit area of paper and cardboard in a certain pressure and temperature, within the time specified the absorption of water by surface to g / m2 meter. The specific formula is as follows: C = (G2 – G1) x 100. (C – value of Cobb water absorption; G2 -the sample quality after absorbing
water; G1 – the sample quality before absorbing water)
Paper and cardboard absorbing tester is the conventional instrument of the paper and cardboard surface water absorption test, also called the weight of paper surface absorption tester.The instrument adopts Cobb test method of the various methods in the absorption test, it is also called Cobb absorption tester.
Specifications:
Metal cylinder Inner section Area
100 ± 0.2 cm2
Cylinder height
50 mm
Quantitative Absorption Paper
200~250 g/m2
Absorption Rate
75 mm/10 min
Smooth Metal Roller
Width: 200 ± 0.5 mm; Weight: 10 ± 0.5 Kg
Environmental Conditions
Temperature: 20~40°c;
Relative Humidity: < 85%
Outside dimension(L×W×H)
380×290×410 mm
Weight
30 Kg
