描述
Test speed
0 to 5km/hr adjustable
Time set
0 to 999.9H
Support function
The machine will be automatically stop if the specimen dropped half-way.

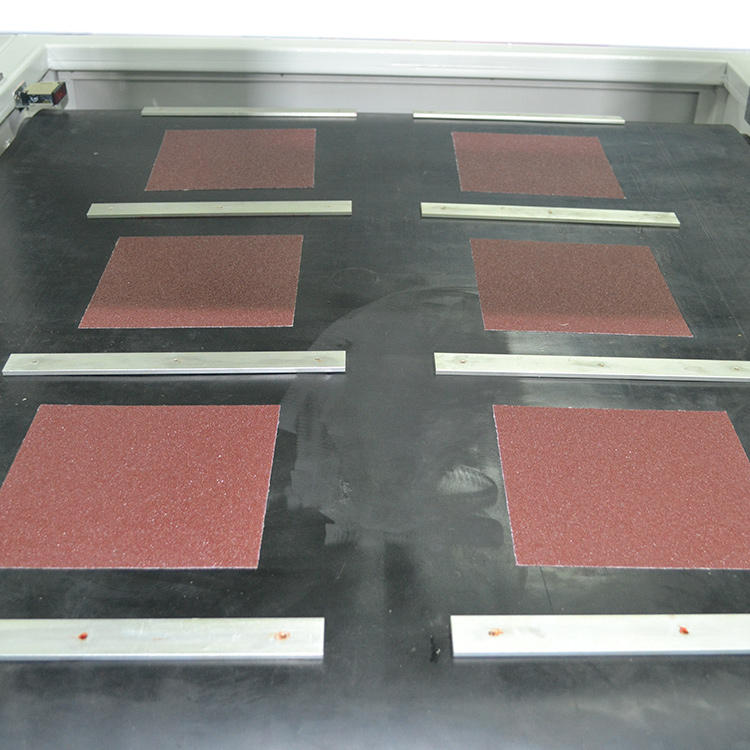

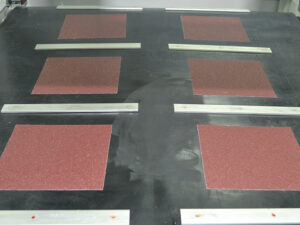

Bump plate
5mm/8 pcs
Belt perimeter
380cm
Belt width
76cm
Accessories
luggage fixed seat (can adjust )
Volume
220x180x160cm
Weight
360kg
Power
220v/50hz

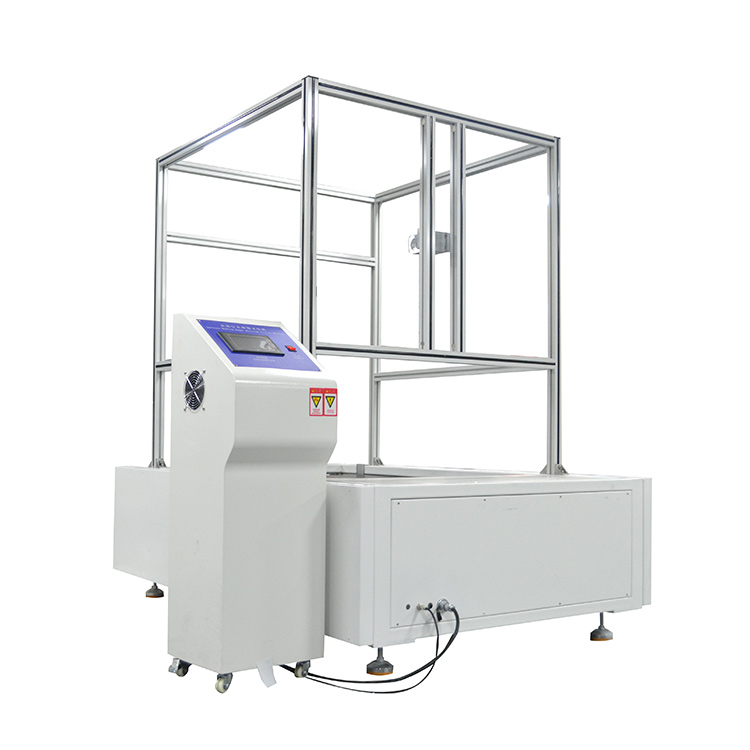

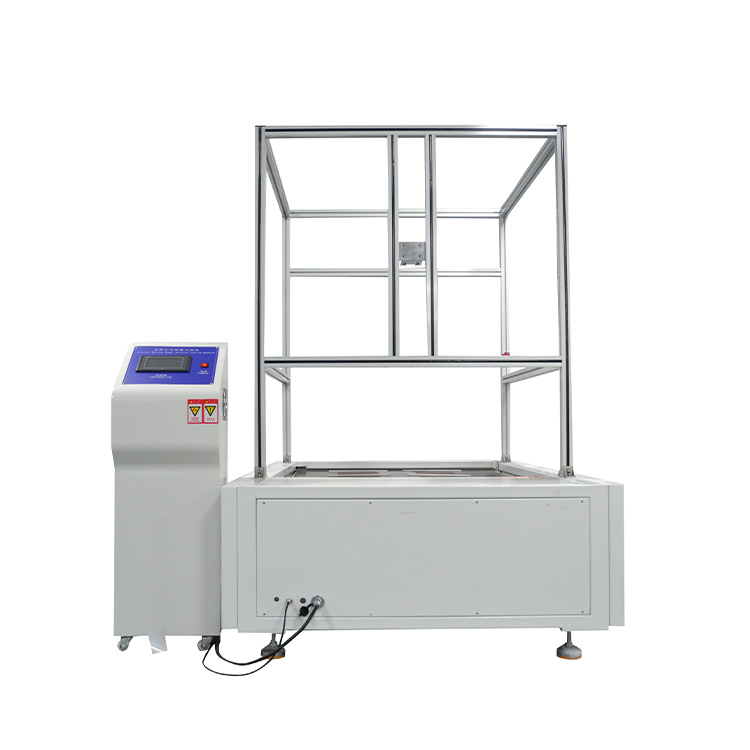

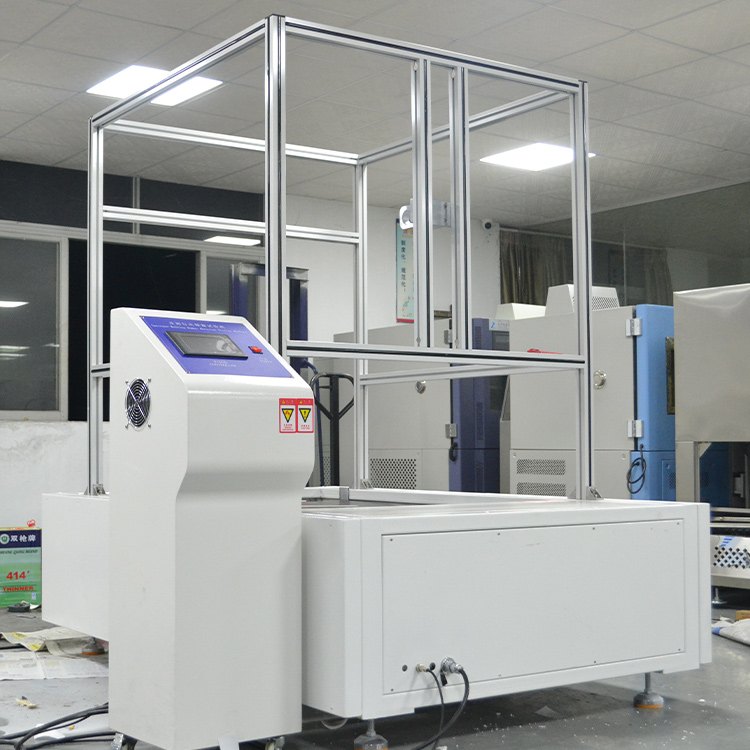

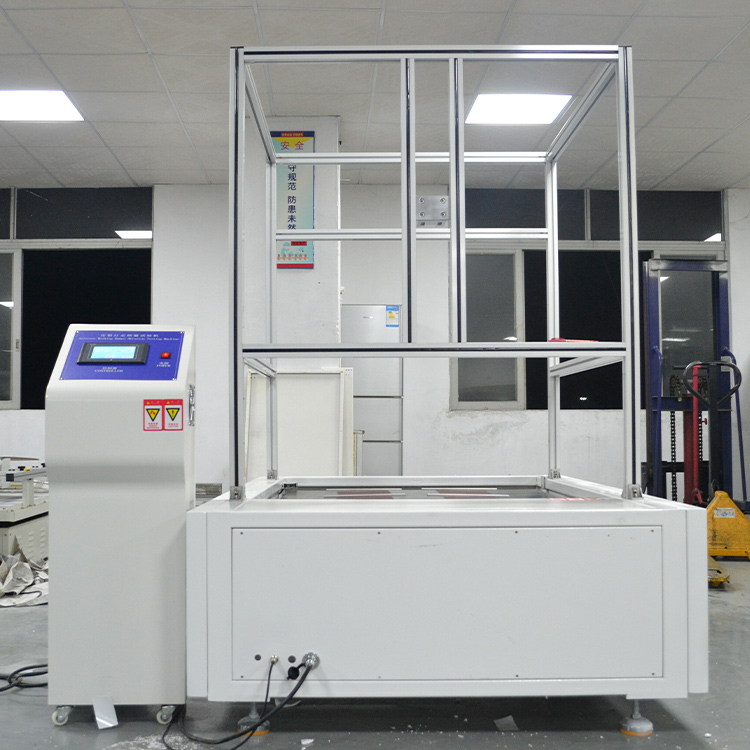

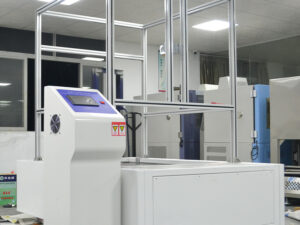

This luggage walk mileage abrasion test machine is used to test the suitcase / travelling bag equip with different kinds of wheels. Load appropriate weight in the specimen, to make impact concussion and abrasion on the specimen by the rubbing and impacting between emery cloth , testing turbulence board and specimen wheel of conveyor walking testing machine. Imitate the using condition of suitcase by keep walking on the road, to test wheels, axle, wheel carrier, pull bar, quality of suitcase of specimen to calculate the abrasion value of wheels.
Standards:
QB/T 2920—2007 B, SAMSONITE
Applicable Industries:
This test machine applicable to all kinds of luggage manufacturers, according to test results to improve product quality.
Purpose :
The designs of this tester is conformed to the test standards.the test method is :place the luggage on the test machine , adjust the speed of the conveyor belt . After the test go on several hours, check the wheel whether it is damaged , stop the operation automatically when arrive the setting number. Luggage Bump Running Testing Machine ( conveyor Belt )
