Description

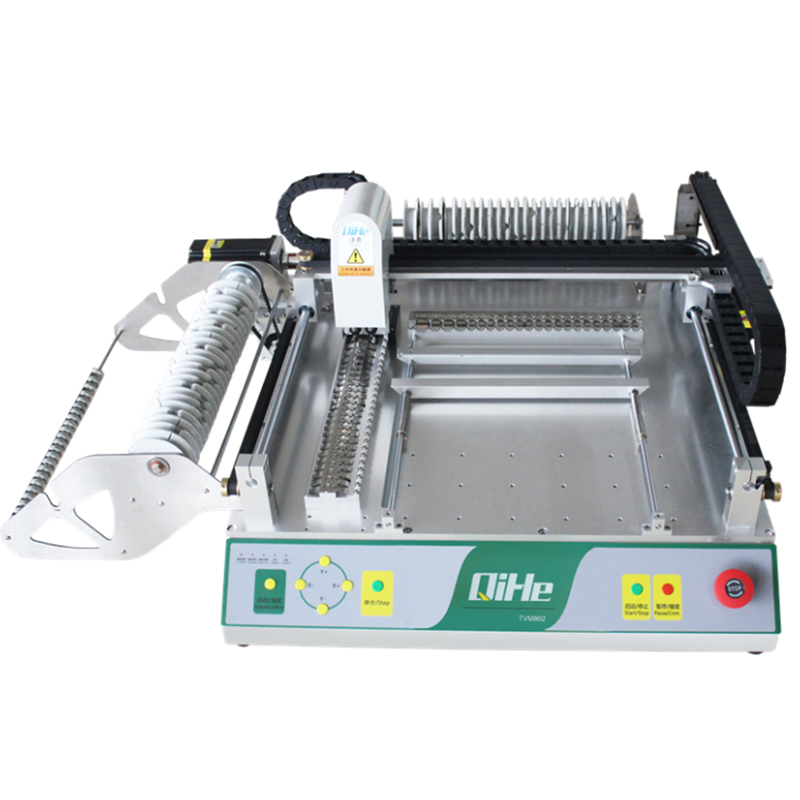

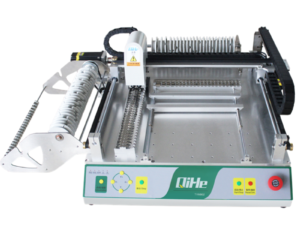

TVM802B liteplacer (desktop pnp mounter,desktop smt pick and place machine) . There are 46 slots（8mm=38,12mm=6,12mm=2）,2 placement heads.Can handling smallest package size:0402 inch and up to largest size:TQFP100.The external dimensions of TVM802B are 940mm*940mm*320mm.Standard editionis mainly composed of working head, dual vision system, operation platform, patented feeding rack, main controller system, closed-loop motor drive system, internal vacumm pump,etc. Voltage AC220V or AC110V, power 150W.
TVM802 series desktop pick and place machine (tvm802a,tvm802b,tvm802ax,tvm802bx) has 2 suction nozzle heads, unique tray feeding mechanism, no need to buy additional feeder, also very convenient to carry and transport.
ModelTVM802BMax applicable PCB size250*330mmMax xy moving range395*430mmMax z moving range12.5mmPlacement head quantity2Max mounting capabilityVision on: 5500pcs/hVision off: 6500pcs/hFeeder slots & Tape width46 slots, （8mm=38, 12mm=6,16mm=2）Visual camera2 HD CCD camerasApplicable component Smallest size:0402inchLargest size:TQFP100Power supply220V/110VNet weight43kgGross weight66kgMachine Dimension94*64*33cmPacking size107*77*42cmVolume0.35CBM
