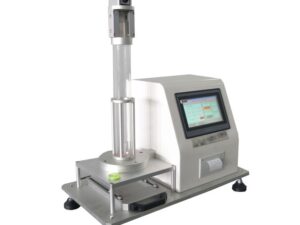

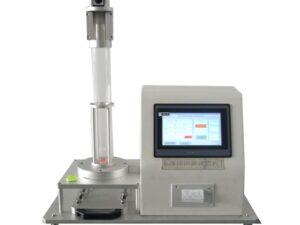

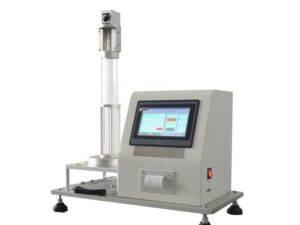

Sponge Falling Ball Rebound Resilience Tester, Foam Ball Drop Rebound Tester
Model
NG-173
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:
The sponge ball rebound tester is suitable for the determination of soft polyurethane foam falling ball type can rebound resilience. This instrument through a given diameter and the quality of steel ball in the specified height on free falling on the foam sample, calculate the spring back of maximum height of steel ball and ball drop height ratio is the percentage of spring rate, expressed as a resilient rate of foam plastics can rebound resilience.This machine adopts microprocessor to control, LCD Chinese display, and can print test data.The machine is
characterized by safety, reliability and high measuring accuracy.
Test Theory:

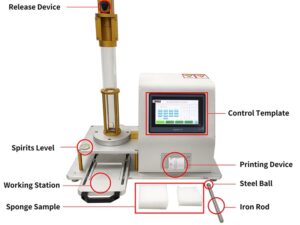

The steel ball with a given diameter and mass is free-falling on the foam plastic sample from the specified height. The time of the steel ball bouncing and falling is measured by the photoelectric sensor, and the recoil height of the steel ball is calculated by the microprocessor.
According to the test method of GB/T6670, the spring back height of each sample was measured for 3 times. The maximum height was selected as the spring back height of this sample, and the average value of the maximum height of 3 times was taken as the spring back height of this material.
According to the test methods of ISO8307 and ASTM D3574, the spring back height of each sample was measured for 3 times, and the three samples were measured. The average value of 9 spring back heights was taken as the spring back height value of this material.Compared with the falling height of the steel ball, the percentage of this ratio is the rebound rate of the foam plastic.The resilience rate represents the resilience energy of foam plastics.
Test Standards:
GB/T6670、ISO8307、ASTM D3574, ect.
Specifications:
Ball drop distance
GB/T6670:460+0.5%mm
ISO 8307 and ASTM D3574:500mm
Steel ball diameter
Φ 16-0.05 mm
Steel ball mass
16.7g
Bounce rate accuracy
<0.5%

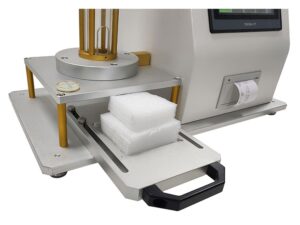

Sample size
100 mm x 100 mm x 50mm
Power supply
AC220V/50HZ
Weight
45kg
