SATRA footwear tensile tester, leather shoes tensile tester
Capacity
20, 50, 100, 200, 500, 1000, 2000Kg
Unit
G, KG, N, LB can be exchanged
Accurate Grade
0.5grade
Display Device
PC
Resolution
1/250,000
Effective Accuracy
±0.2%(0.5grade)
Max.Stroke
800mm (Column height 143cm)
Speed Range
0.01-500mm/min (adjustable )
Motor
Servo Motor + High Precise Ball Screw
Elongation Accuracy
0.001mm
Power
AC220V, 50/60HZ(custom-made)
Standard Accessories
Tensile clamp, Computer system, English software CD,
User manual
Tensile strength testing equipment (often also called ‘universal testing machines’, as many also operate in compressive mode) are fundamental pieces of test equipment in many types of physical testing laboratories, and can be used to carry out a wide range of tests. The different categories of tests which can be conducted include tensile strength, as well as resistance to tearing, peeling, puncturing, compression, shearing and three-point bending, and the assessment of specific characteristics of a product component or assembly.
How to use tensile tester to assess the leather shoes materials?
SATRA TM43
Tensile (or breaking) strength and extension are not direct indicators of the performance level of a leather. Nevertheless, they may be used as an indicator of general quality and are included in many specifications. For leather, SATRA TM43:2000 – ‘Tensile strength and extension at break of leather’, allows an assessment to be made of the tensile strength of leather, as well as the elongation at break and the extension at a predefined tensile stress. This latter property gives an indication of the ease with which the leather may be stretched. In addition, both the tensile stress and the elongation can be determined at the onset of grain crack. When conducting a test to SATRA TM43, accurate dumb-bell shaped specimens are prepared. This shape produces a lower stress region where the specimen is held in the jaws. During the test, therefore, the most likely result is a break occurring in the narrower region, away from the jaws. The tensile strength can be determined from the maximum force recorded during the test. The tensile strength is the maximum load divided by the cross sectional area (width x thickness) of the specimen. The percentage extension at break is given by the extension multiplied by 100 and divided by the original jaw separation. The test method sets out the details for the test, including the number of specimens to be taken, their orientation and geometry, specimen conditioning and how thickness measurements are to be taken, as well as how to determine the extension at a predefined stress and tensile stress and elongation at grain crack.
SATRA TM65
Tear properties of footwear materials are important characteristic to be considered in the manufacture of footwear and leathergoods. For example, SATRA TM65:2015 – ‘Split tear strength’ is a test used to assess the split tear strength of cellular materials. It is mainly applicable to sheet soling materials, but can also be used for specimens prepared from moulded soles. An important application of this test is the assessment of the split tear strength of EVA solings. When conducting a test, rectangular specimens are split for part of their length, parallel to the top and bottom faces and through mid-thickness. This produces two tongues which are clamped into the jaws of the tensile tester.
When testing sheet material, the test is conducted in two principle directions of the sheet with three test specimens cut parallel to the principal direction of the sheet and three specimens cut at 90º to this direction. During the test, the jaws are separated at a specified rate and the maximum force needed to propagate the split is recorded. Insufficient split tear strength in a midsole can result in a sole separation failure in use.
SATRA TM37
SATRA TM37:1999 – ‘Nail penetration – shoe bottoms and protective midsoles’ is an example of a puncture test. This is a variation on a compression test in which the load is applied through one of the jaws via a small focused point of prescribed geometry – typically defined by diameter, point chamfer angle and terminal point geometry. SATRA TM37 is used to assess the nail penetration resistance of shoe bottoms and protective midsoles. It determines the force required to drive a hardened steel nail through a boot sole or shoe bottom to assess the protection given to the wearer, where there is a risk of treading on spikes or other sharp objects.
The method is applicable to safety footwear incorporating protective metal inserts or midsoles and can be used to test either the complete shoe bottom or the protective insert alone. When conducting a SATRA TM37 test, a blunt-ended steel spike of specified dimensions is forced through the test specimen. The force required is recorded, along with the type of damage produced.
SATRA TM401
The SATRA TM401:2000 – ‘Peel strength of adhesive bonds’ test determines the peel strength of an adhesive bond. The method is applicable to all types of bonded joint where at least one of the adherends is flexible. Test specimens are cut from a bonded assembly which has been previously prepared – for instance, using the preparation procedures set out in SATRA TM402 for solvent or water borne adhesives, or SATRA TM414 for hot-melt adhesives. The test specimen is then peeled apart using a tensile testing machine, while the force required to separate the adherends is measured and the type of bond failure is assessed. Important information can be gained from an examination of the failure mode.
SATRA TM440
SATRA TM440:2011 – ‘Edgewise compression strength of corrugated fibreboard’ is an example of an assessment which uses a tensile tester to conduct a compression test. The test assesses the resistance of corrugated cardboard to crushing under load applied vertically to the edge. This method is applicable to all types of corrugated fibreboards used for packaging, such as shoe boxes and shipping cartons.
In order to conduct a test to SATRA TM440, accurately cut specimens of the material are placed between two rigid platens in the tensile tester, with their faces perpendicular to the direction of applied load. Two guide blocks are used to support each side of the specimen perpendicular to the platens, while the initial load is applied across the specimen edges. As the load continues to be applied, the guide blocks are pulled away from the specimen, thus allowing the specimen to bow or buckle. The test continues until the specimen buckles and the maximum load before buckling is recorded. The failure mode is also recorded.
SATRA TM123
SATRA TM123:1992 – ‘Closure strength of touch-and-close fasteners’ determines both the peel strength and the shear strength of touch-and-close fasteners. The loss of strength after repeated use is also assessed. The method is applicable to all types of touch-and-close fasteners, including those forming part of completed footwear. SATRA TM123 can be used to assess both the peel strength and the shear strength of touch-and-close fasteners, as well as those properties after subjecting the fastener to repeated opening and closing.
In this article, SATRA TM123 is referenced as an example of how the tensile tester is used to conduct an assessment of shear strength. Because touch-and-close fasteners are made of two parts (hook and loop), specimens are prepared to represent the different configurations of how the two parts can be combined. Both parts of the touch-and-close fastener are pressed together under controlled conditions, with one of the parts offset to the other so that there is a standard contact area between the two parts. The maximum shear load required to pull them apart along their length in both directions is measured with a tensile testing machine. This procedure is then repeated with one of the parts of the fastener turned though 180º. The shear strength is then calculated from the maximum load divided by the contact area (area of overlap) between the two parts of the fastener.
Recommended Leather Tensile Strength Test Machine

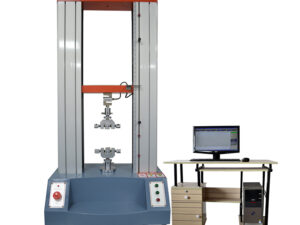

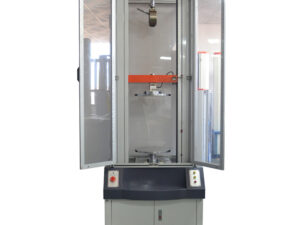

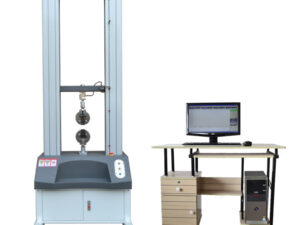

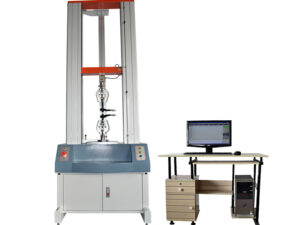

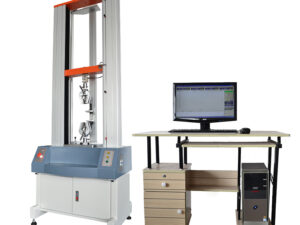

Our Model NG-101, Servo Universal Tensile Tester
Common Tensile Grips
Professional designed software. PC to view test results, analysis of data and graph
