Description

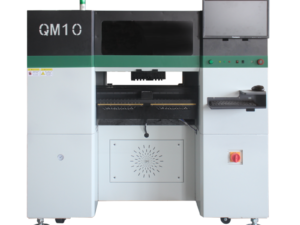

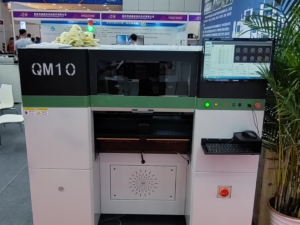

The QM10 SMT pick and place machine designed with 10heads 86slots ，QM10 pnp machine speed of up to 23000 components per hour (CPH).
It has been upgraded from the QM81 series and incorporated customer feedback.
The substrate iron plate inside the machine upgrade into thickened marble material to increase stability .

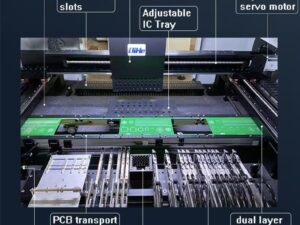

The X-axis improves the structure to increase the smoothness of operation .and increased the number of linear guides （top and bottom）
The Y-axis has also been increased into two linear guides on each side to improve accuracy and speed increase machine durable life.
Even the model of Panasonic servo motor, driver, linear guide, and screw have been completely upgraded to cope with the working capacity of 10 heads .
Upgraded the software functional such as the component library ,the visual surveillance,the safety alerts,the fault previously warning .
Can easily handling special-shaped components, BGA, 0201 inch package.
X Y axis adopts bigger Panasonic servo motor, without sacrificing the CPH rate with high troque to achieve never lost step accuracy ＜ 0.001mm.
new features like 10 heads take material at the same time，
Components size shoud be 0805 inch and above size , like 3535 LED lamp beads .
( suggest use the electric feeder to avoid the problem of insufficient air supply)
Model QM10
Max applicable PCB size 60*60~330*750mm
Max xy moving range 670*730mm
Max z moving range ±15mm
Placement head quantity 10
Max mounting capability Vision on: 17000pcs/h
Vision off: 23000pcs/h
Feeder slots capability 86 (YAMAHA Feeder is available)
Applicable component Smallest size:0201 inch
Largest size:22*22mm
including 0201~5050,sop,LQFP,QFN,BGA,etc.
Max Height 15mm
Visual camera Five megapixels HD CCD Flight camera
Power supply 220V
Net Weight 1600kg
Gross Weight 1750kg
Machine Dimension 1500*1735*1620mm
Packing size 4.21 CBM
