Metal Detection Security Gate, Metal Safety Check Door Temperature Scanner
Model
NG-8810
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:
Temperature scanner and metal detection integrated system is an accurate and convenient detection device for detecting human body temperature and metal detection combined. It uses a non-contact body temperature preliminary screening method, which has a fast detection speed and can prevent personnel from being exposed to cross infection. At the same time, the common 7-inch LCD screen can display the measured temperature, the temperature of the alert, the number of alert, the number of people passing through, and the number of compensations. When a person passes through the security inspection channel, if the person’s body temperature exceeds a preset temperature or carry metal, the system will automatically alarm. If the body temperature is normal, the normal body temperature value will be displayed on the screen in real time.
Features:
TWO Sensors Non-contact temperature scanner: about 10-15 cm away from the probe, and the forehead/wrist temperature can be detected.

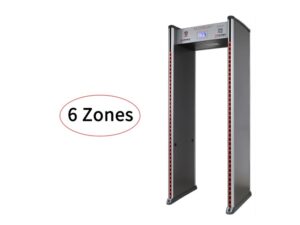

Six Metal Detect zones, and suspicious objects can be accurately displayed in correspondence.
LED Display doorpost light can display alarm zone visually and sound and light alarm at the same time.

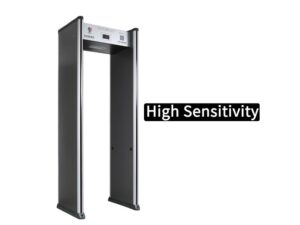

High sensitivity:a piece of coin metal can be detected, and the influence of belt buckles, leather shoes, bras can be ruled out, and more than 200 grams of copper, aluminum, zinc and other metals or controlled knives and guns can be detected.Additional functions: optional remote control can be used to control parameters, reserve switching signals, and can be connected to computers, cameras, three rollers, etc.
Harmless: Harmless to cardiac pacemaker wearers, pregnant women, and magnetic media.
Specifications:
Temperature Scanner Part
Detection distance
Forehead, wrist 5-15CM
Temperature measurement range
30℃～42℃
Minimum resolution
0.1℃
Temperature measurement module
MELEXIS
Temperature measurement accuracy
±0.5℃（Indoor Temperature）
Repeat accuracy
±0.2℃
Response time
0.1S
Measure time
0.5S-1.5S
Display
7 inch color touch screen
Working environment
-10℃─35℃
External power
220V 50Hz
Tunnel Dimension
2000(H)) x 700(W) x 550(D) mm
Whole Dimension
2202(H) x 820(W) x 550(D) mm
Metal Detection Part
Working frequency
7.8～8.2KHz
Detection sensitivity
Φ20MM Iron Ball
Detection location
Left and right six detecting zones
Detection sensitivity
6 zones
