Summary:

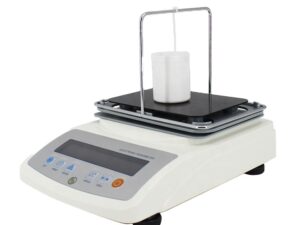

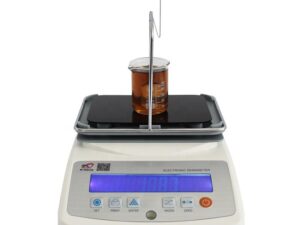

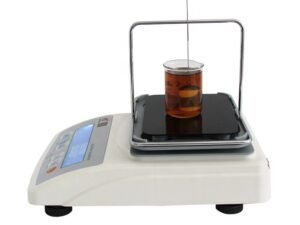

Liquid densitometer imported from Germany HBM sensor, with reliable measurement repeatability, two
operation steps that show the density, no wechsler balance, gravity bottle method cumbersome debugging
and operation, excellent performance, strong practicality, strong acid and alkali, viscous, volatile, suspended liquid, emulsified liquid, high temperature liquid can be quickly Measured.
Applications:
Suitable for: All kinds of acid and alkali salt solution, chemical, oil, oil, cosmetics, paint, coatings, printing ink, essence, perfume, chemical solution, chemical reagents, resins, adhesives, edible oil, beverage, pharmaceutical, additives, synthetic agent, metal processing, thermal power, electroplating industry, construction, chemical industry and trade, colleges and universities, institutions, government departments, teaching institutions.
Standards:
According to GB/ t611-2006,GB/ t11540-2008, gb1666-81,GB/ t5009.2-2003,GB/T 5526-1985, jjg171-2004,GB/T13531, T5526, T5009,GB/ T11540,GB/ T12206,GB/ T5518 specifications. The buoyancy method and water displacement method based on Archimedes principle are used to quickly read liquid density, baume degree and concentration.
Features:
Any solution can be quickly measured, and the operation can be completed in one step, which is convenient for continuous and rapid testing.
With upper and lower density functions, it can determine whether the specific gravity of the object to be measured is qualified or not. It is provided with a buzzer device

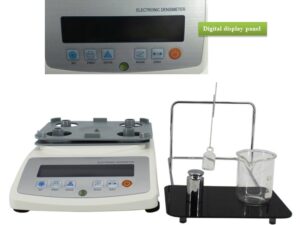

Convenient sampling, only 50CC for the tested sample, digital display, high measurement accuracy, simple operation, stable and durable.
The measuring cup is easy to clean and is not restricted by the small diameter of the specific gravity bottle. It can be reused. Disposable measuring cups can also be used.
With rs-232c communication interface, it is convenient to connect PC and printer. Xf-68 printer is optional to print measurement data
Own battery, equipped with windproof cover, more suitable for field test.
Specifications:
Model
NG-YT300
NG-YT300L
NG-YT120
NG-YT220
Max load weight
300g
300g
120g
220g
Weighing accuracy
0.01g
0.005g
0.001g
0.001g
Density accuracy
0.001g/cm3
0.0001g/cm3
Test range
0.001—99.999g/cm3
0.0001—99.9999g/cm3
The results showed
Density, concentration, concentration, modulus
Setting
Set the upper and lower limits of density, set the specific gravity of specific gravity hammer and set the temperature compensation
Type test
Liquid, corrosive liquid, viscous liquid
Calibration mode
100g single bond automatic correction, positive distilled water test results
Output way
Rs-232c standard communication interface, convenient test data output and printing
Remark
Corrosive liquids require the purchase of corrosive accessories
Viscous liquid requires the purchase of stainless steel liquid assemblies
