Specification
Program
TWC-01 digital controller holds up to 999 program steps
Control
DC 400 W spindle motor with stepping motor for spreading
Tape width
4 mm – 10 mm (depends on shuttle Width)
Package Includes
base, core rotator, taping head, your first shuttle, and comprehensive manual
Shuttle Diameter
150mm
O D Range
8 – 60 mm
Min finished I D
15 mm (depends on shuttle size & core height) 45mm Max. Height
Max speed
300 rpm
Power
AC 230 / 110 V ± 10%, 50 – 60hz
Dims
780 x 780 x 1250 mm
Net weight
90 kg
CE cert.
no.AE9955093 01
toroidal taping head small id

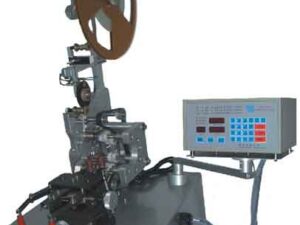

Click for larger image

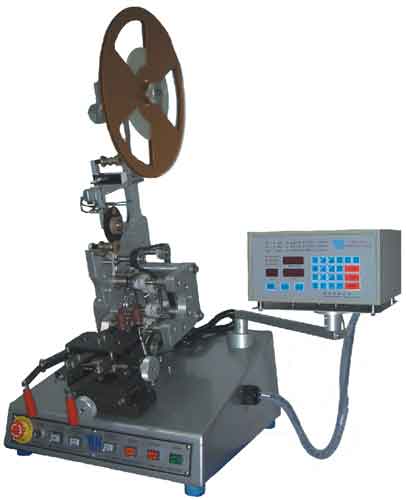

The WH-900T6 is a digitally controlled toroid winding machine, ideally suited to the manufacture of toroidal power transformers, isolation transformers, inductors and chokes of up to 60mm finished outside diameter
The machine is equipped with a 6 inch toroid taping head.
With this head it is possible to tape very small toroidal cores.
The machine features automatic control over wire load length, running speed, acceleration and de-acceleration, etc, and programs for complex windings are stored in memory for later use. The advanced fibre optic wire detection system includes a teach-in function for accurate and reliable turns count, even with coloured wires.
