Items

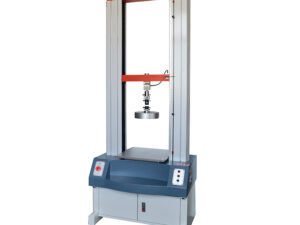

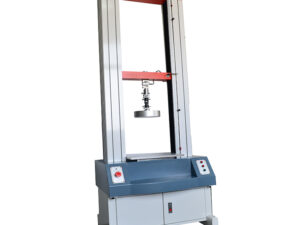

Foam Compression Testing Machine
Max. Capacity
200Kg
Unit
G, KG, N, LB can be exchanged
Accurate Grade
0.5grade
Display Device
PC
Resolution
1/250,000
Effective Accuracy
±0.2%(0.5grade)
Specimen size
Length 380mm, thickness 50mm
Speed Range
100±20mm/min
Deformation accuracy
±0.25mm

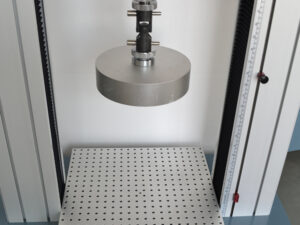

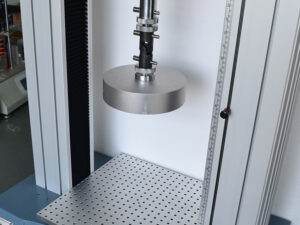

Compression head diameter
200mm
Motor
Servo Motor + High Precise Ball Screw
Power
AC220V, 50/60HZ(custom-made)

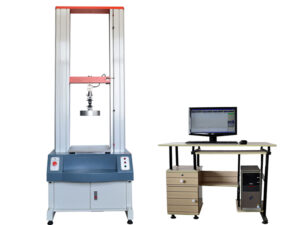

Standard Accessories
Standard compression clamp, Tool kit, Computer system, English software CD, User manual
The servo universal materials tensile / compression tester is applied to all kinds of hardware, metal, rubber and plastic materials, foam, shoes, leather, clothe, textiles, yarns, an insulator, wire and cable, for many kinds of materials. It tests every items physical test performance. For example, stretch, tear, strip,anti-pressure, bend an-shear, three point an-broken.
Theory:
This machine is a kind of tensile/compression tester which uses the motor to drive ball screw to move fixture. Place the sample between the upper and lower fixture, use a given speed to pull the upper fixture upward, and the upper load cell with sensor to check tensile strength and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically on the computer.
Standards:
GB/T10807-2006 / ISO2439:1997
Flexible Cellular Polymeric Materials – Determination Of Hardness (indentation Technique)
This machine is a kind of tensile/compression tester which uses the motor to drive ball screw to move fixture. Place the sample between the upper and lower fixture, use a given speed to pull the upper fixture upward, and the upper load cell with sensor to check tensile strength and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically on the computer.
Features:
1. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it
operates easily.
2. Using a single-screen operation; do not need to switch the screen
3. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface
can be switched easily
4. The pattern of Test reports can be selfdesignated; test data can be displayed directly in the main screen.
5. Choosing translational, comparative mode at the same time to make a number of curve data comparison
6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
7. With self-return & auto-correction function
8. With automatic magnification function, in order to achieve the most appropriate size of the graphics
