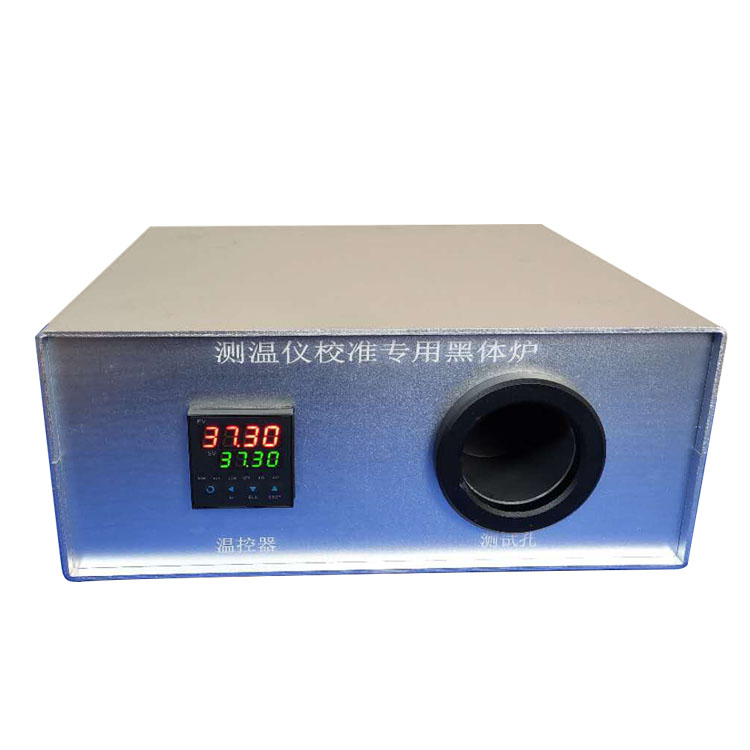

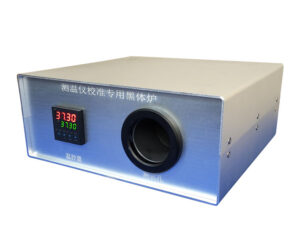

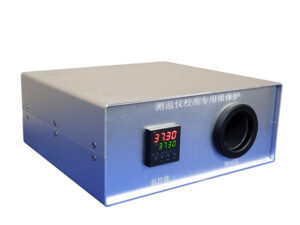

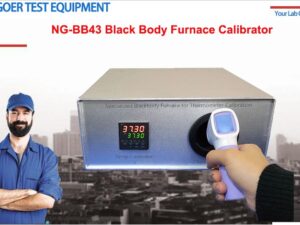

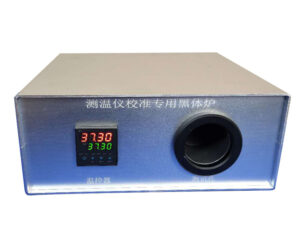

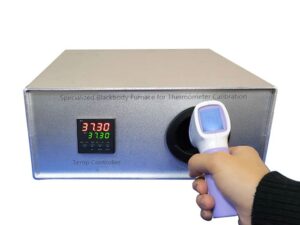

Infrared Thermometer Calibrator Black Body Furnace Calibrator
Model
NG-BB43
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:
A precision blackbody (black body) is a controlled source of thermal radiation used to calibrate infrared radiation thermometers (pyrometers), thermal imagers and radiation heat flux gauges and radio-meters. It is our ZONHOW R&D and manufactured product which is special used in calibration for Infra-red ear temperature gun, forehead temperature gun and medical thermometer. It can also be used for the calibration of infrared body surface screening instrument. Through our main R&D of the temperature cycle system, plus the new materials, the
emissivity can reach more than 0.99.
This black body source has been introduced to meet the demand for a simple, cost-effective, but high accuracy
calibrator for the calibration of thermal imagers and infrared thermometers used at temperatures near ambient.
A 56mm diameter, ridged plate is heated or cooled with an internal solid-state thermoelectric heat pump. The temperature of the plate can be set from 30°C to 50°C, to a resolution of 0.01°C.
Features:
1) Emissivity: more than 0.99, isothermal black body cavity, only one cavity mouth, cavity mouth radiation evenly distributed with the spectrum.
2) Novel design, simple operation
3) Adapt automatic temperature control method, safe and reliable, fast temperature rise and good temperature stability.
4) Easy to operate, Small size and light weight, easy to carry. Suitable not only for laboratory calibration, but also for field calibration.
5) Display the measured value, set value and parameter setting with double row digits. New technology, high precision, multi – function and strong anti – interference ability.
Specifications:
Item
Black Body Furnace for Calibration of Infrared Thermometer
Measure Range
30~50℃
Temp Resolution
0.01℃
Cavity Diameter
Φ56mm
Cavity Depth
50mm
Emissivity
≥0.99
Temp Stability
±0.1℃/30min
Temp Uniformity
±0.1C°
Power
220V AC 50HZ
Weight
Approx 3.0Kg
