Specification
Program:
Microprocessor controlled, capable of holding 999 program sequences which may be run independently or in selected blocks for compound windings.
Control:
Spindle drive – High torque brushless DC induction motor producing a max torque 157 Ncm.
Traverse – Constant current driven 4-phase stepper motor.
Application:
Roller type wire guide head and separate wire tensioning units for each spindle. Each wire guide head is fully adjustable so that winding may be done simultaneously on both spindles.
Package Includes:
Includes 2 x roller wire guides and 2 x wire tension units, with comprehensive manual.
Wire size:
0.3 – 1.6 mm
Maximum Pitch:
10 mm
Winding Width:
110 mm (max)
Bobbin Diameter:
110 mm (max)
Max speed:
3000 rpm
Power:
AC 230 / 110 V ± 10%, 50 – 60hz
Dimensions:
600 x 480 x 900 mm
Net weight:
55kg
CE cert.
No.AE9955093 01
Click for larger image

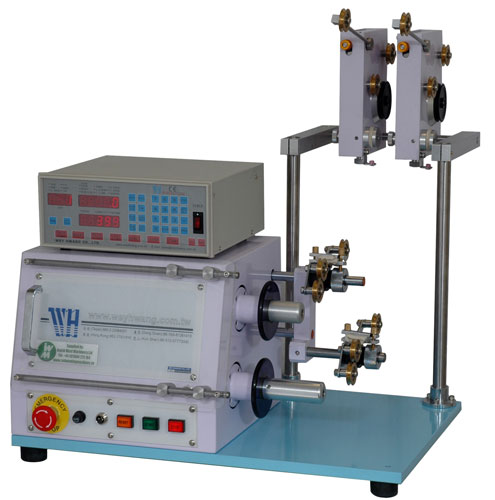

The WH-752 is a compact benchtop coil winding machine with digital control for semi-automatic operation, ideal for winding inductors that require a larger wire size.
The machine is equipped with a roller type wire feeder system and wire tension control unit for each spindle, each being independently adjustable to enable winding to be carried out on the two spindles in parallel.
The digital control regulates all of the fundamental winding parameters such as winding speed, wire pitch, acceleration, braking, and turns count. Using the simple programming system and multi-step programs, complex windings can be generated with ease. Stored programs can be instantly recalled, reducing machine setup time for product changeover to a minimum.
