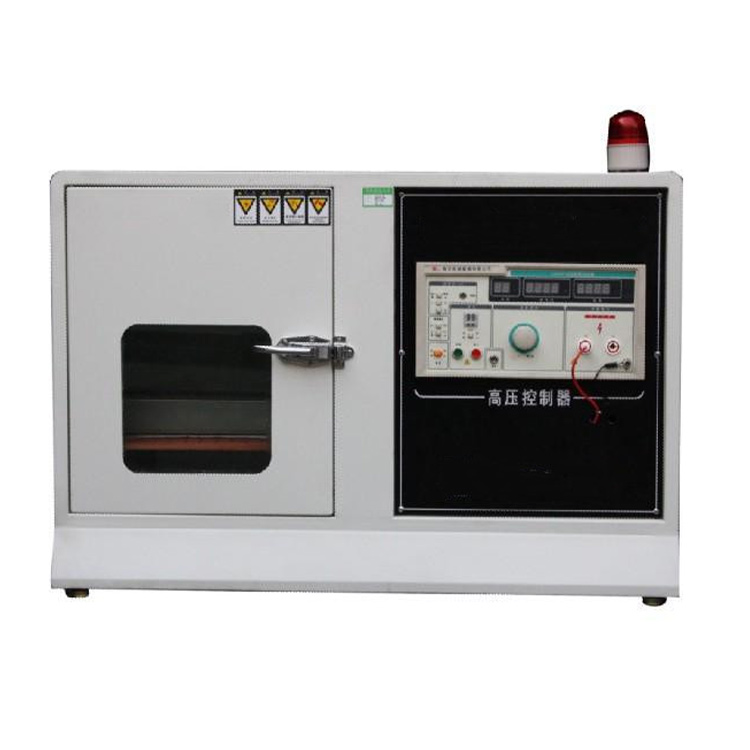

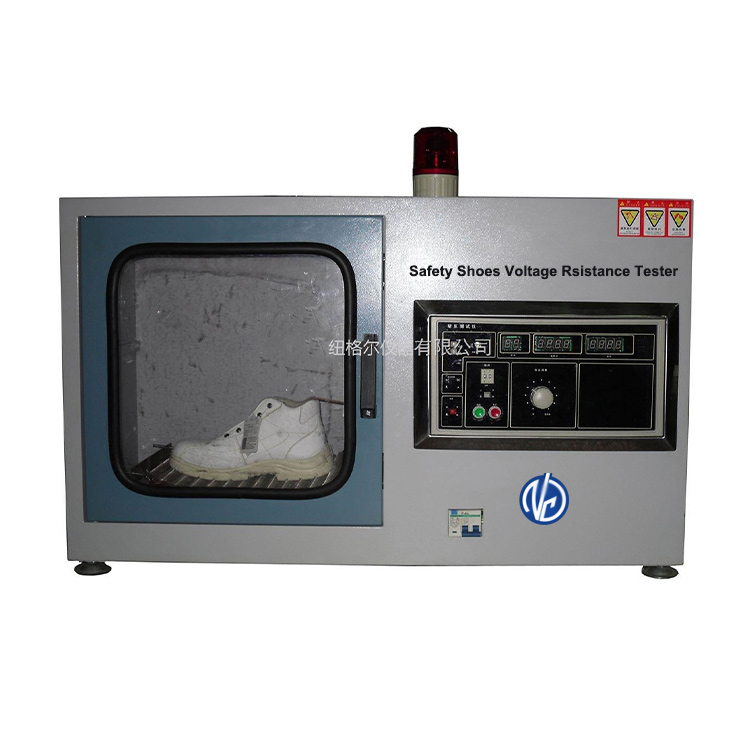

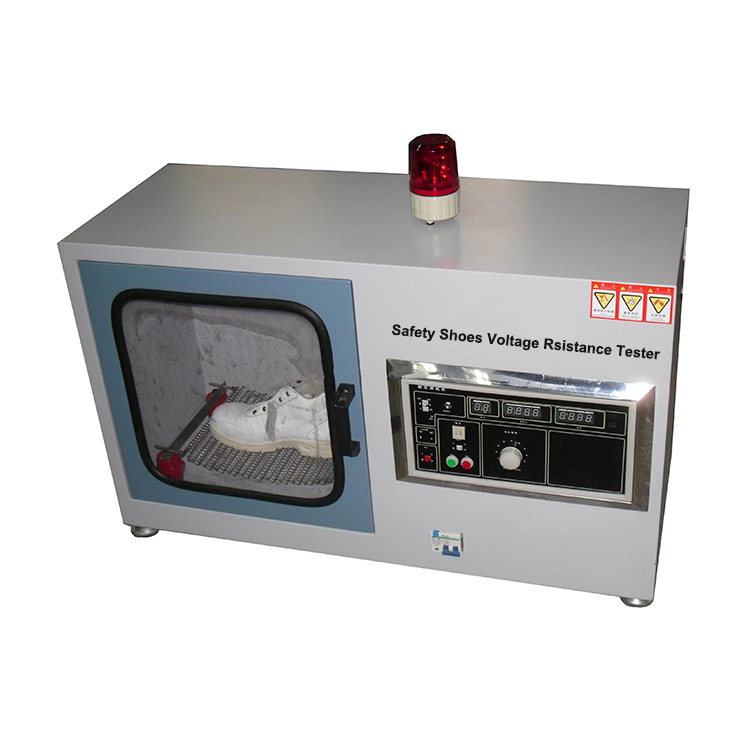

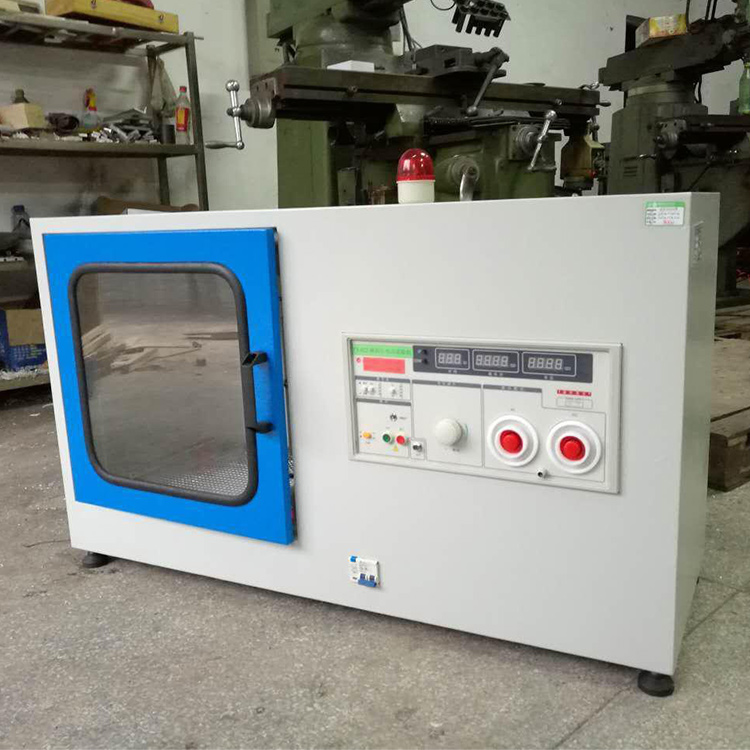

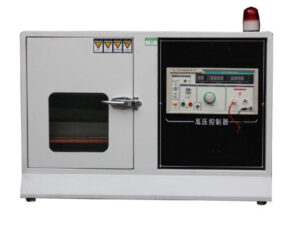

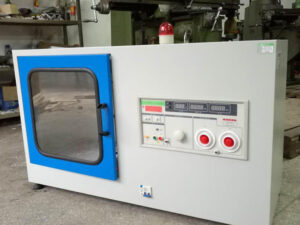

Safety Shoes Voltage Tester Shoes Insulation Testing Machine
Model
NG-8340
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:
Shoes Insulation Tester / Shoes Voltage Resistance Tester is to test if shoe soles or insulation materials can withstand voltage value, in order to understand the extent of its withstand
voltage.
Standards:
ANSI-241, CSA-Z195, GB12011, GB/T20991-2007, ISO8782, ISO20344, 2004 etc.
Test Principle:

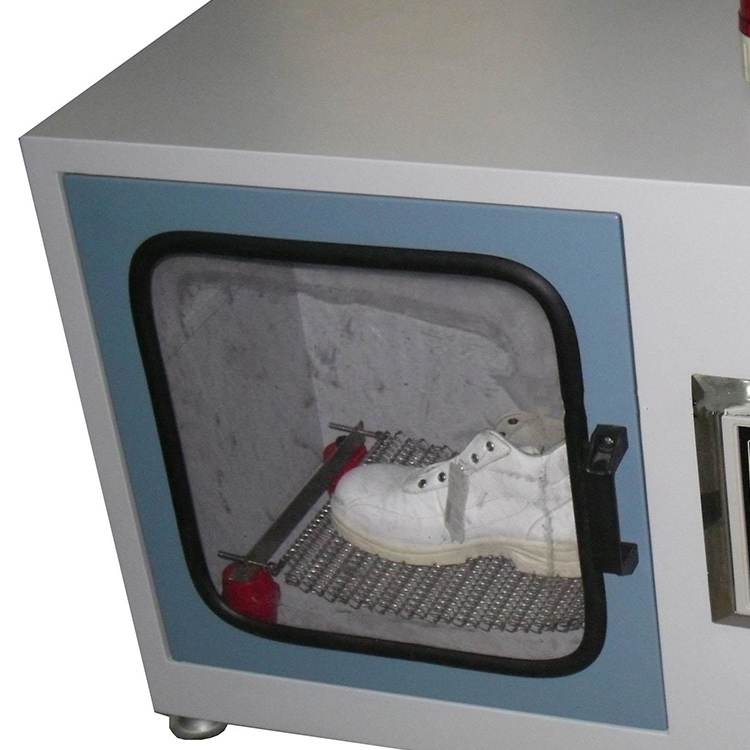

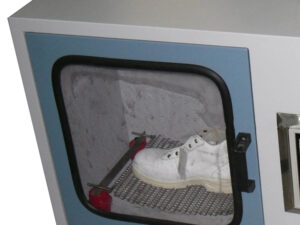

Input the PF voltage to shoes inner, outer electrode, within specific test time, if the test sample
was not breakdown so the value of the milliammeter index (mA) is leakage current value, the
indicated value of voltmeter is (kv) is voltage resistance value.
Test condition: 15℃~35℃,45%~75%RH
Specifications

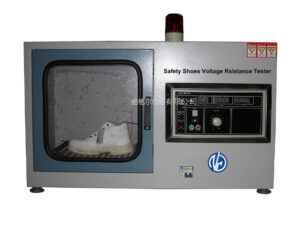

Safety Shoes Insulation Test Machine
Model
NG-8340
Test voltage
1kv/sec to the designated voltage
Capacity
0.5KVA
Input voltage
AC220V
Output voltage
AC 0 – 20KV (Adjustable)
Conductive steel diameter
3mm
Electrode (steel) layer depth
At least 30mm
Metal net (Sample plate)
400×220mm
Test space
59×37×55cm
Machine size
60×40×132cm
Weight
Approx 80kg
Power
AC220V,50Hz
