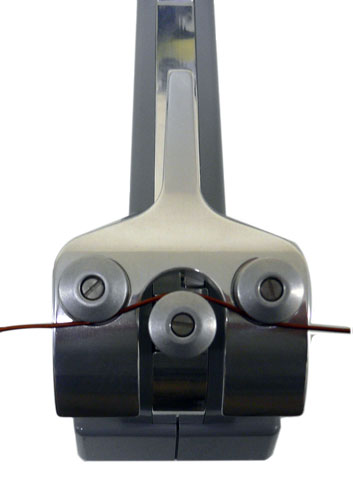

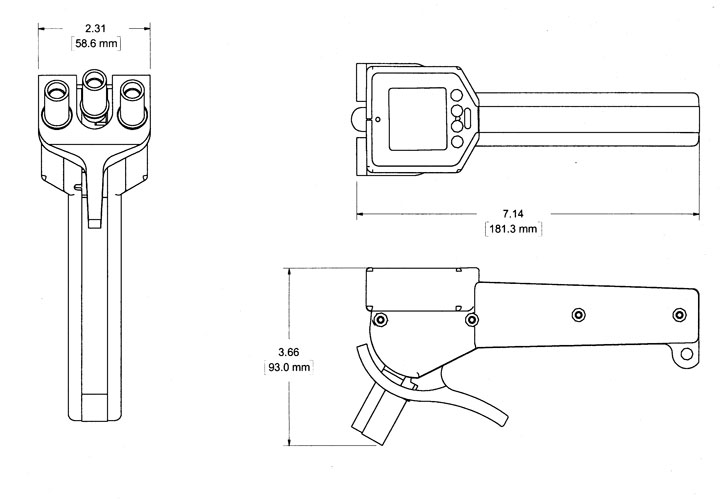

Specification – fine wire up to 1mm ∅
Model No. Range Resolution Tension Units
TX-1-125 0-125g 0.1 to 1g cN, grams or lb
TX-1-1000 10-1000g 1 to 5g N, grams or lb
TX-1-5000 50-5000g 5 to 10g N, grams or lb
Tension meters.

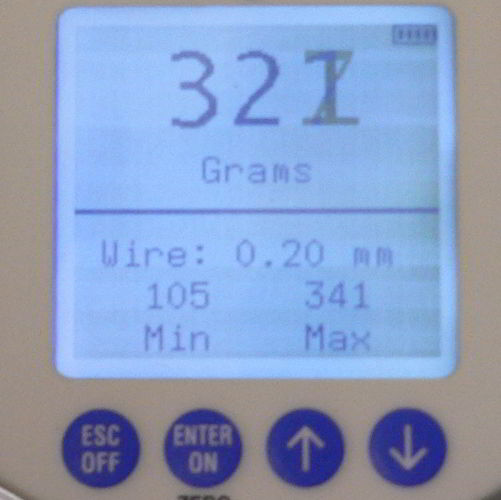

Large, easy to read backlit, graphic display with adjustable backlighting
and contrast.
• S – Speed and Length Option
Indicates real-time speed in FPM, or MPM. Maximum measurable speed is 9,999 FPM or 9,999 meters per minute, however wire speeds in excess of 2,000 FPM are generally unsafe for hand-held applications. Read length of part run in feet or meters. Maximum length measuring up to 9,999 meters or feet.
• A – Analogue Output Option
Analogue Output Option for both speed and tension values. 0-5 VDC or 4 -20 mA with software-definable ending sequences. Provided with 10′ cable. Data outputted at 40Hz.
• E – RS-232 Serial Output Option
Provided with 10′ cable to interface with your receiving device. Select data sampling rate from 1, 2 or 5 Hz.
• D – Data Logging Option
Capture and view data within a user-defined time window. Select the time window; then select the sampling rate (from 1-100 Hz). After capturing the data, review the data on the instrument’s display or upload it using the 10′ serial interface cable.
Order code:- [Model number] + [options]
e.g. tx-1000–S–D

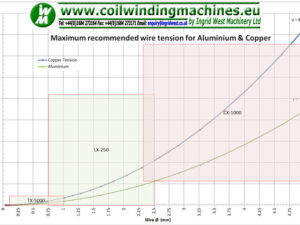

When trying to measure wire tension for thicker wires, the process becomes more difficult as the softness of the copper will greatly effect the tension measurement and re-calibration would be required for each filament. However the range of larger meters shown below can be very useful as a guide and aid in repeatable setting.

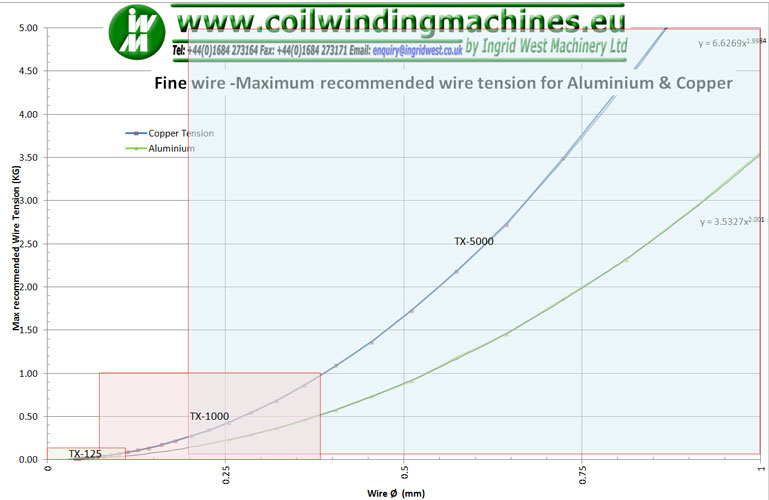

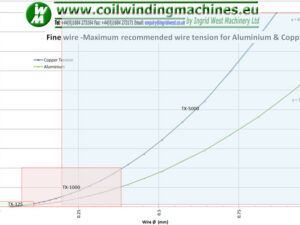

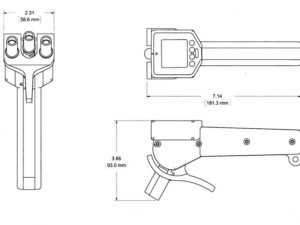

Tension Meter Fine Range.
Digital Wire Tension Meter fine wire Range selection

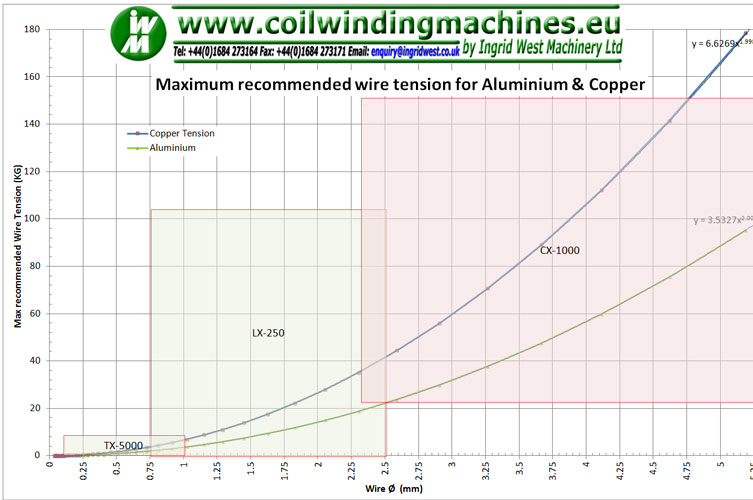

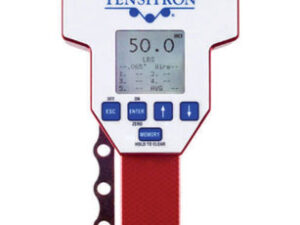

Tension Meter Large Range
Digital Wire Tension Meter fine wire Range selection

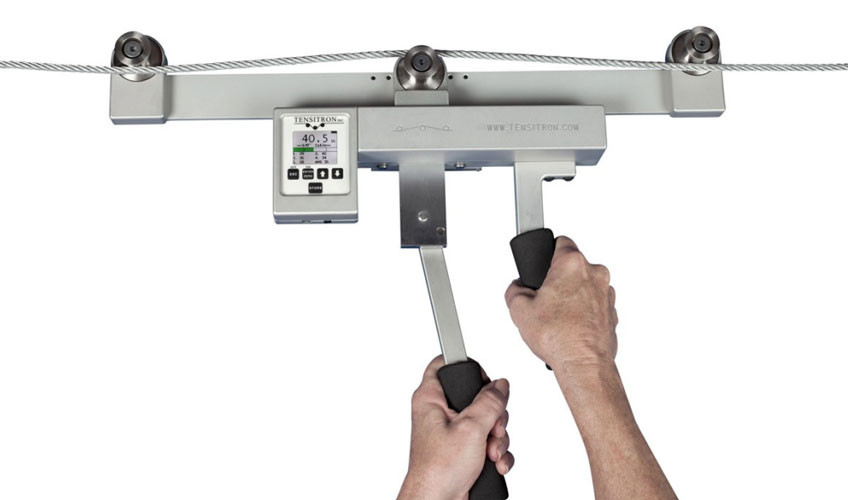

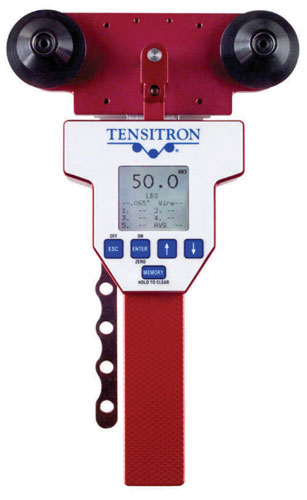

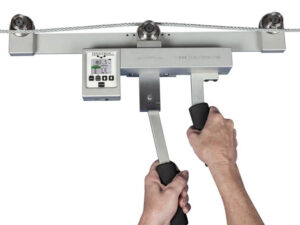

Specification – wire > 1mm ∅
Model No. Range Resolution Tension Units
LX-1-250 2.5 -113 KG 0.22 KG N, KG or lb
LX-1-500 11 – 225 KG 0.45 KG N, KG or lb
CX-1-1000 23 – 454 KG 2.26 KG N, KG or lb
CX-1-2000 45 – 907 KG 4.5 KG N, KG or lb
