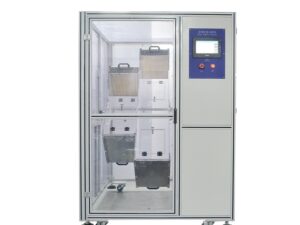

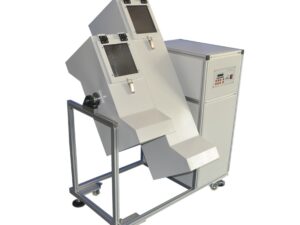

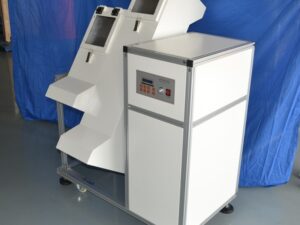

Double Tumbling Barrel Drop Tester, IEC 60068-2 Tumbling Barrel Drum Drop Tester
Model
NG-220
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:
The Automatic Tumbling Barrel Drop Test Machine simulates repeated falls which may occur
to such devices as connectors or small remote control units which are normally attached to
cables during use. The Automatic Tumbling Barrel Drop Test Machine is the recommended instrument to perform such a test. A barrel is turned at a rate of five revolutions per minute
resulting in ten falls per minute. The sample falls from a height of 500mm on to a steel plate that is 3mm thick and backed by 19mm thick hardwood. The number of falls is set by the user in accordance to the standard they are meeting. After the tumble barrel procedure,
the specimen is checked visually, mechanically, and electrically as prescribed in the relevant
specification.
Purposes:
durability of the housing.
B. Internal Structures in throw performance.
C. withstand repeated free fall adaptability.
Standards:
IEC60068-2-32 GB/T2324.8 etc.
Features:
Apply on the phone (or other small electronic products) and special equipment which repeated free fall
tests.
Simulated the phone free drop test when using mobile phone.
Reasonable structure, unique, different mobile phone models have full applicability.
Equipment operation and stability, low noise, maintenance-free.
Specifications
Item
Automatic Tumbling Barrel Drop Test Machine
Specimen weight
5Kg(max)
Number of tests
1-999999
Test Tumbling Barrel
2 Drum
Drum height
500mm + 1000mm
Drum width
275mm / 350mm
Testing speed
0-20 times/min
Power
AC 220V (Specified)
