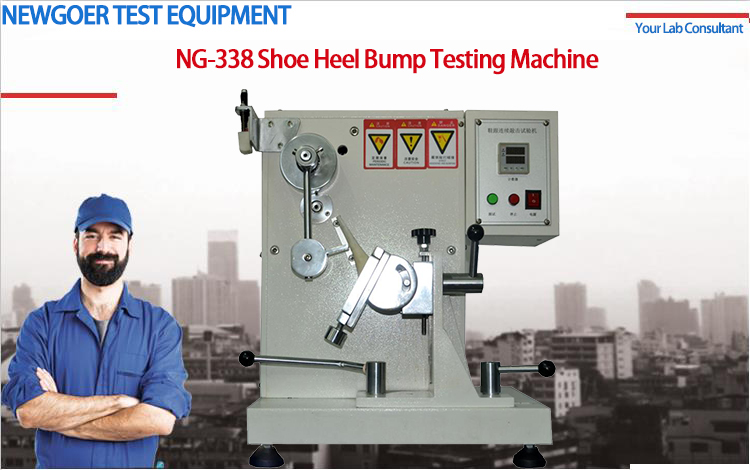

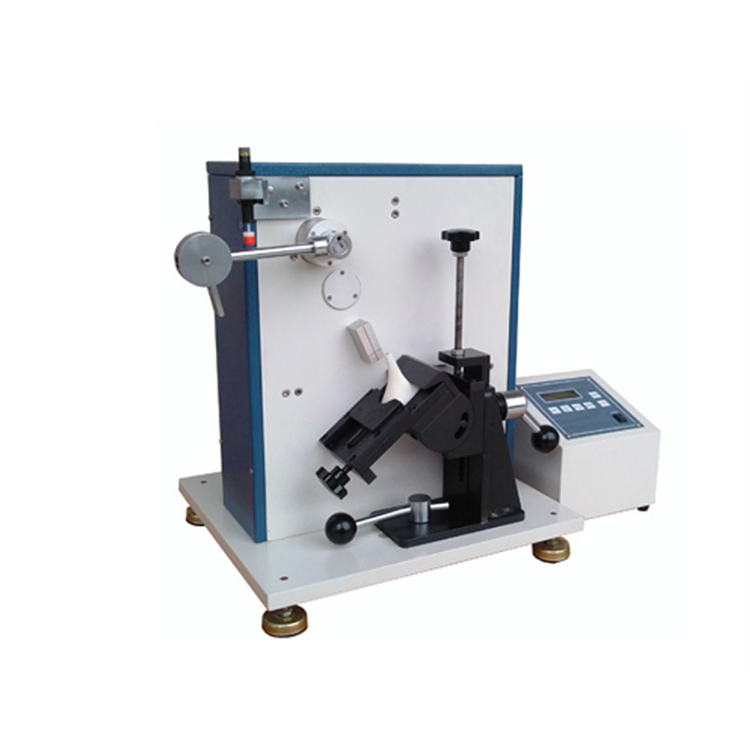

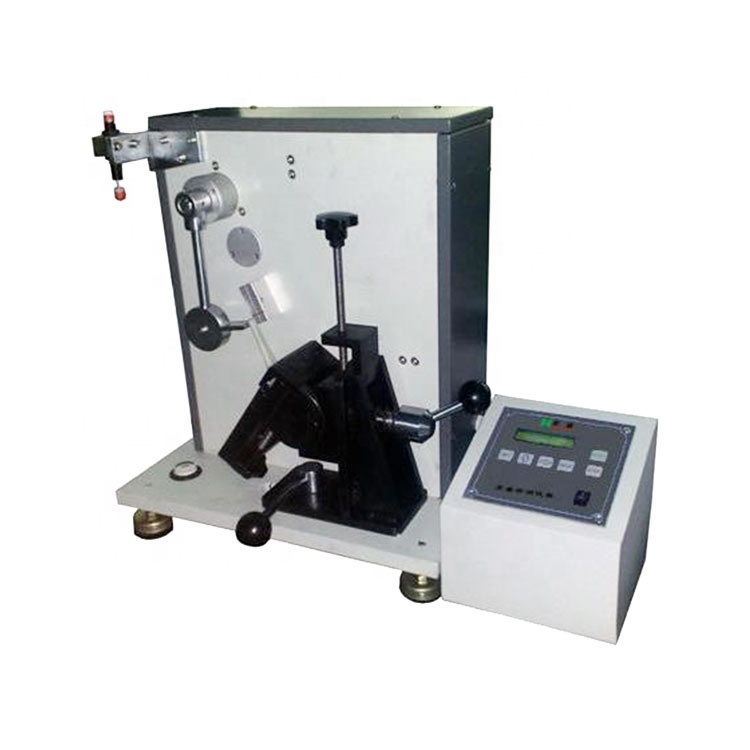

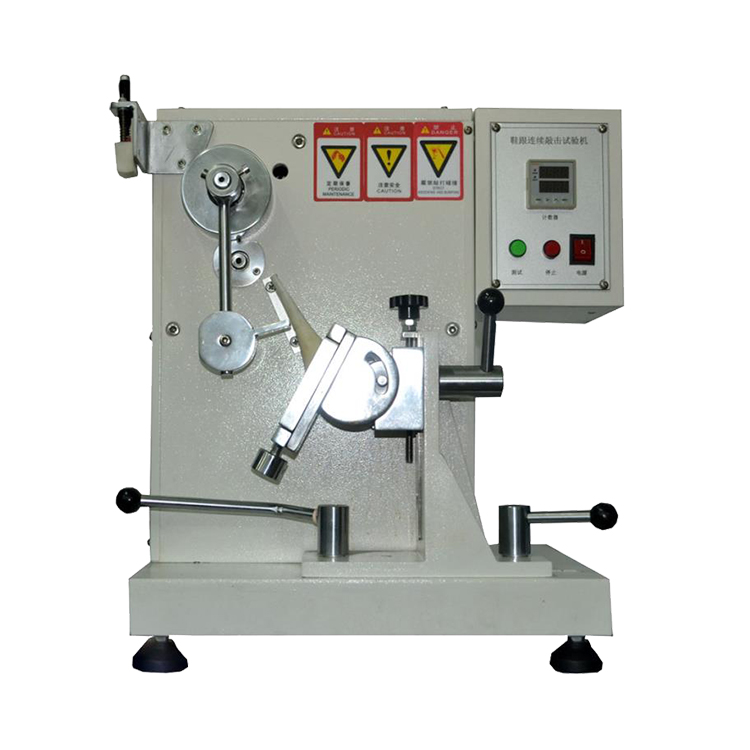

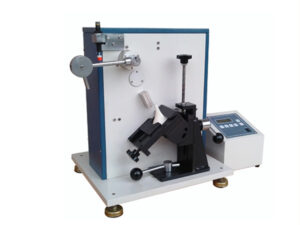

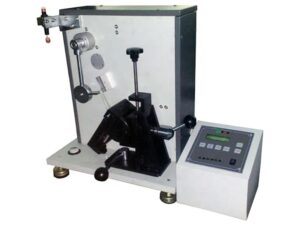

Shoes Heel Continuous Impact Tester, Shoes Heel Impact Fatigue Tester
Model
NG-338
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Application:
Heel Fatigue Tester is mainly to test the plastic heel, simulating the ability of the heel to resist continuous impact when wearing women’s shoes. This machine is a pair of women’s heels, moving once every second, free fall, 0.68J of energy, impact hammer falling from a horizontal position to a vertical position, impacting the specimen until the heel breaks or reaches the required number of fatigues.
Standard:
BS-5131, SATRA PM20, SATRA TM21
Technical parameters:
Impact frequency
60 blow/min
Impact energy
0.68 J/blow
Swing arm
Φ12.5mm
Impact hammer
Φ57mm, thick 20mm
Testing angle
90°
Specimen adjustable range
Up to down~90mm,left to righ~80mm,angle 0°~180°
timer
LCD, 0~999,999
Weight
60kg
Power
AC220V, 50Hz
