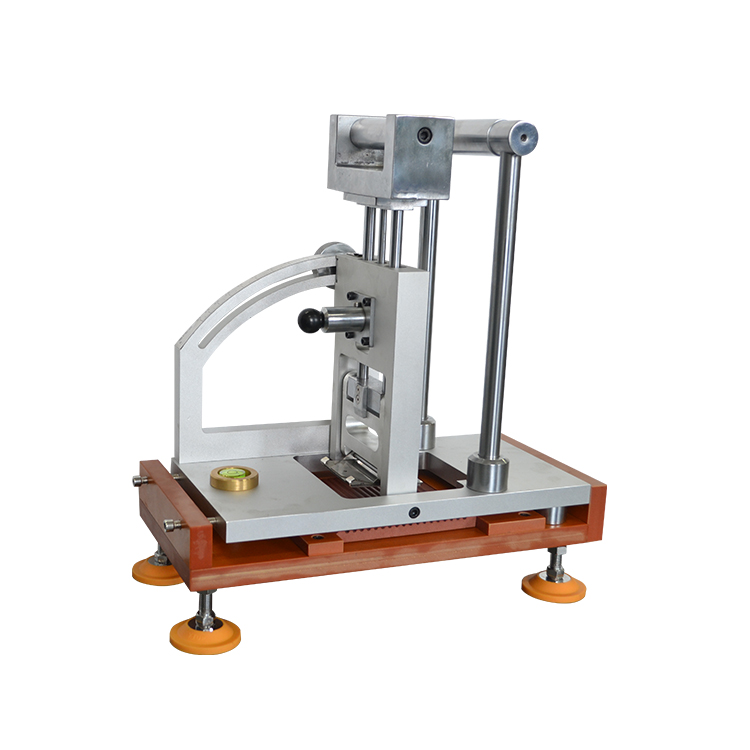

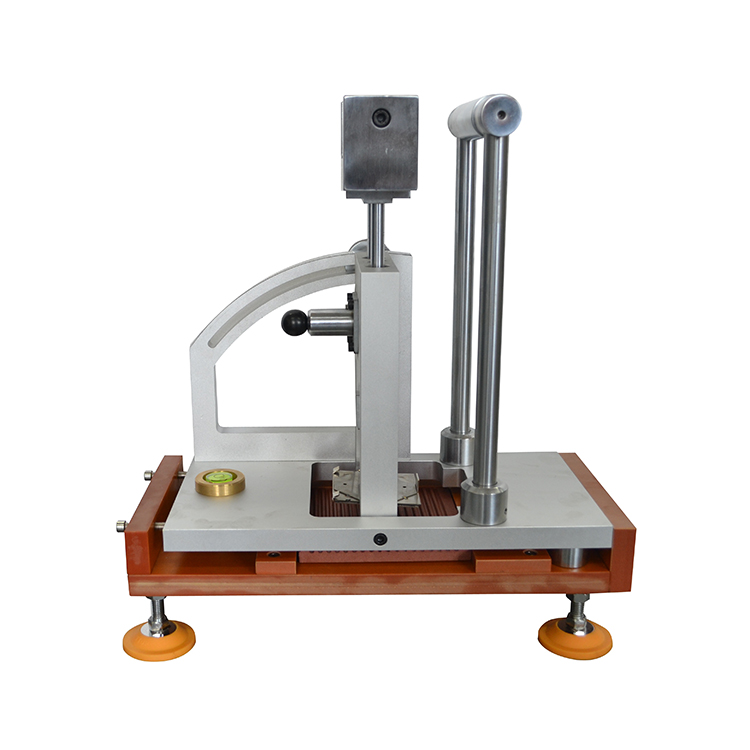

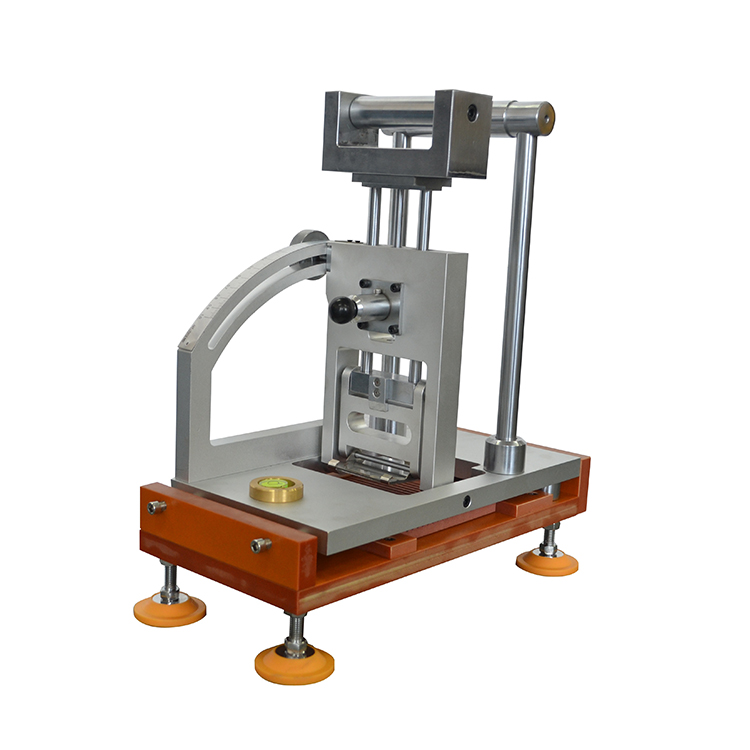

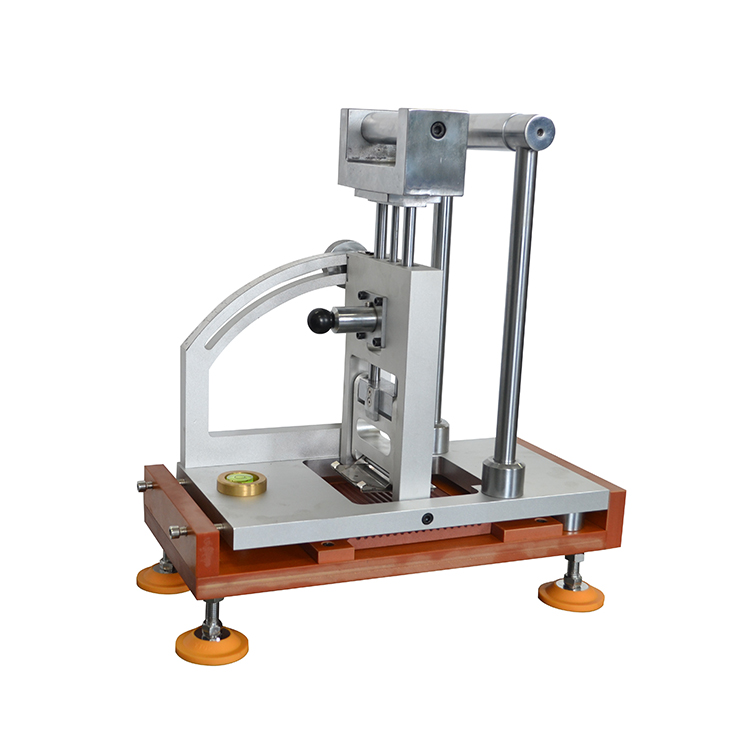

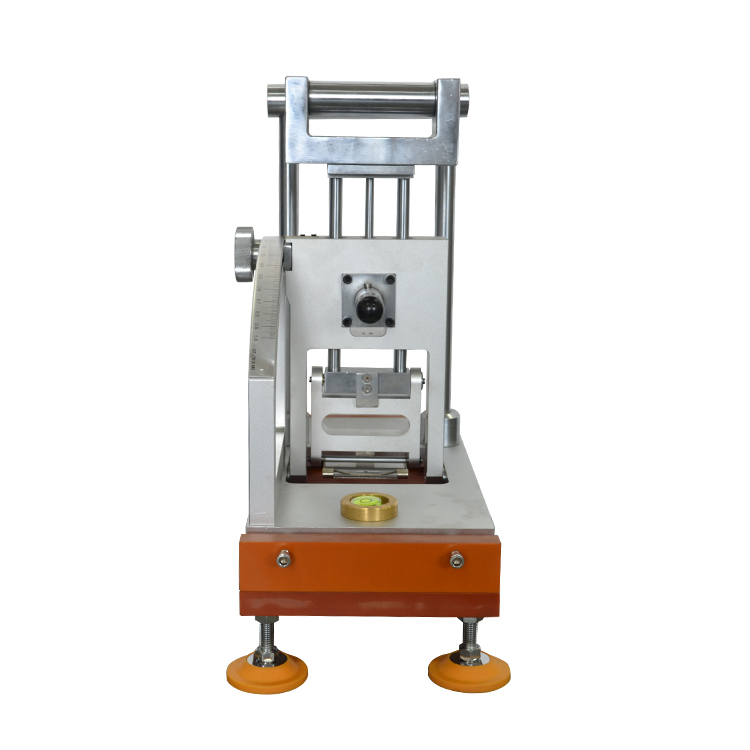

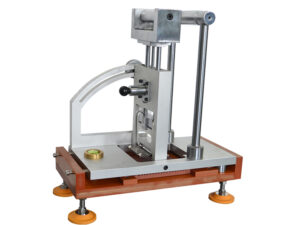

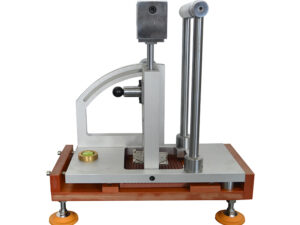

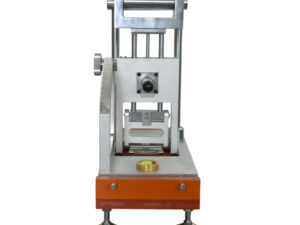

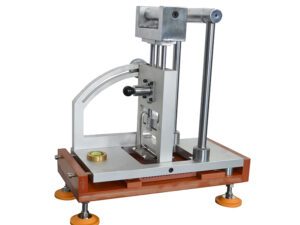

Shoes Slip Resistance Tester, ASTM F1677 Portable Articulated Strut Shoe Sole Slip Resistance Tester
Model
NG-524
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Product Description
This tester, the Shoes Slip Resistance Tester is used to determine the slip resistance of footwear sole, heel or related materials against planar waJkway surface or walkway surrogates under dry, wet or contaminated conditions.
Purpose
Based on the principle of the ratio of horizontal and vertical forces under load, the MARKII portable elbow joint anti-slip testing machine tests the zUI large static friction coefficient between the design and the ground. The tester is portable and can be used on dry, wet or soil-contaminated floors to test the anti-slip performance of rubber, tire, PU and PVC materials
Standard: ASTM-F1677
Specifications:
Load
10lb
Slider diameter
Ø12mm
Thickness of holder
31.8mm
Thickness of base
19.1mm
Area of sample
3’’x3’’(76.2×76.2mm)
Surface area
4’’x4’’ or more
Floor requirements
level of ground surface
Machine size
400x220x390mm
Weight
15kg
