Specification
No. of spindles
6
Wire size
0.02-0.5 mm
Max traverse width
85 mm
Winding spindle pitch
70 mm
Max bobbin diameter
62 mm – less if load unload system used
Winding spindle speed
18,000 rpm
Spindle position accuracy
+- 0.1°
Guide head drive motor
200W AC servomotor X , Y and Z axis
Max movement of guide head
X(left/right) 100 mm
Y(front/back) 75 mm
Z(up/down) 65 mm
Nozzle positions
0°, 90° or 120°
Max pin wrap speed
150 Turns / min
Control system
Windows interface PC with USB connector & DVD ROM
Interface
RS232 or USB
Touch screen
15 inch
Air supply
6 Bar
Power supply
single phase 220V +-10% 50Hz
Power consumption
3kwA
Weight
475 Kg
Dimensions (cm)
110(W) x 130(L) x 155(H) – excluding wire spool stand

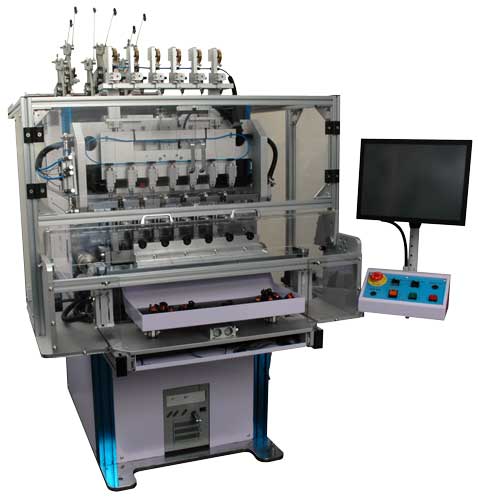

6 spindle automatic coil winding machine
Click for larger image

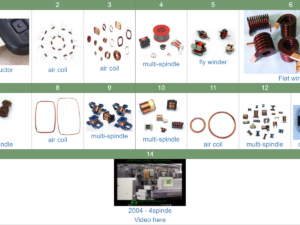

production examples from this coil winding machine
Description:
A high speed fully automatic coil winding machine with advanced PC control of multi axis servo systems, for winding inductive devices with fine wire in medium and large volume. Applications include relay coils, magnetic head coils, LCD coils, transformers, ignition coils, inductors, sensor coils, solenoids, and other bobbin-wound products.
Main features:
The wire guide movement can be freely programmed in all 3 axes (X, Y, and Z). Programmable nozzle movement through 0°, 45° and 90°angles enables pin wrapping on both radial and axial pins,
Wire cutting on bobbin pin, nozzle cut or by air nipper (method can be chosen by operator and setup in the program).
Simplified programming with teach-in programming system using 15 inch touch screen, Windows™ based graphical interface, industrial PC with USB, Ethernet network and DVD ROM facilities.
Easy to change tooling and machine set-up recalled from the onboard computer when changing product.
Fully CE compliant.
Options:
Air nipper for larger wire.
Load and unload shuttle transfer system.
Skeining (Wire twisting) unit.
Customised accessories to suit your application
