Specifications can be modified according to customer requirements.
Max Wire Dia. & profile wire:
0.01 – 30mm
Max winding length:
1100 mm
Max distance between points:
1200 mm
Max Winding Diameter:
1600 mm
Guider precision:
0.01 mm
Main shaft motor:
Servo – 28Nm at 3000 rpm
Winding shaft speed:
500 rpm.*
Electrical supply:
3 x 380Vca – 50Hz
Air supply:
6 bar
Net weight:
900 kg
User interface:
Standard with the machine, turns counter, simple programming (CMZ240). Full touch screen system available upon request.
Max. No. of programmable windings:
130
Max. No. of windings per coil:
12
Type of programming:
CNC
Torque and Speed
*There are various drive options aviable depedning on your requirements.
SGB -Switch Gear Box – has four gear rations with quick gear change by levers
Gear Position
500 RPM version
Torque (NM)
Speed (Rpm)
1
168
500
2
252
333
3
504
166
4
756
111

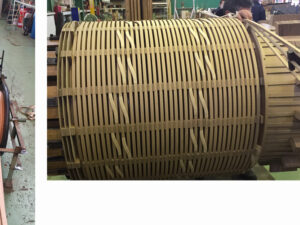

Heavy duty coil winding machine series
Click for larger image

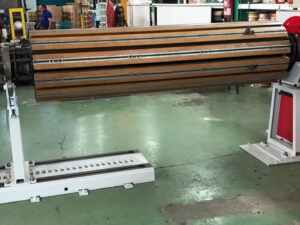

Example custom e-2000C machine below with 15,000Nm torque and 2 meter coil diameter capacity.
Heavy duty coil winding machine series
Heavy duty coil winding machine series
Heavy duty coil winding machine series
Robust and reliable, the E-1200C Winding Machine is a floor standing style winding machine.
The chassis is fabricated from heavy guage galvanised steel and the machine covers in stainless steel for ease of cleaning and maintenance.
The winding machine consists of a head stock with speed change, face plate, and foot pedal.
This machine is designed for applications where a bench and guiding system is not required, for example, winding pancake coils, typically using rectangular or flat wires.
